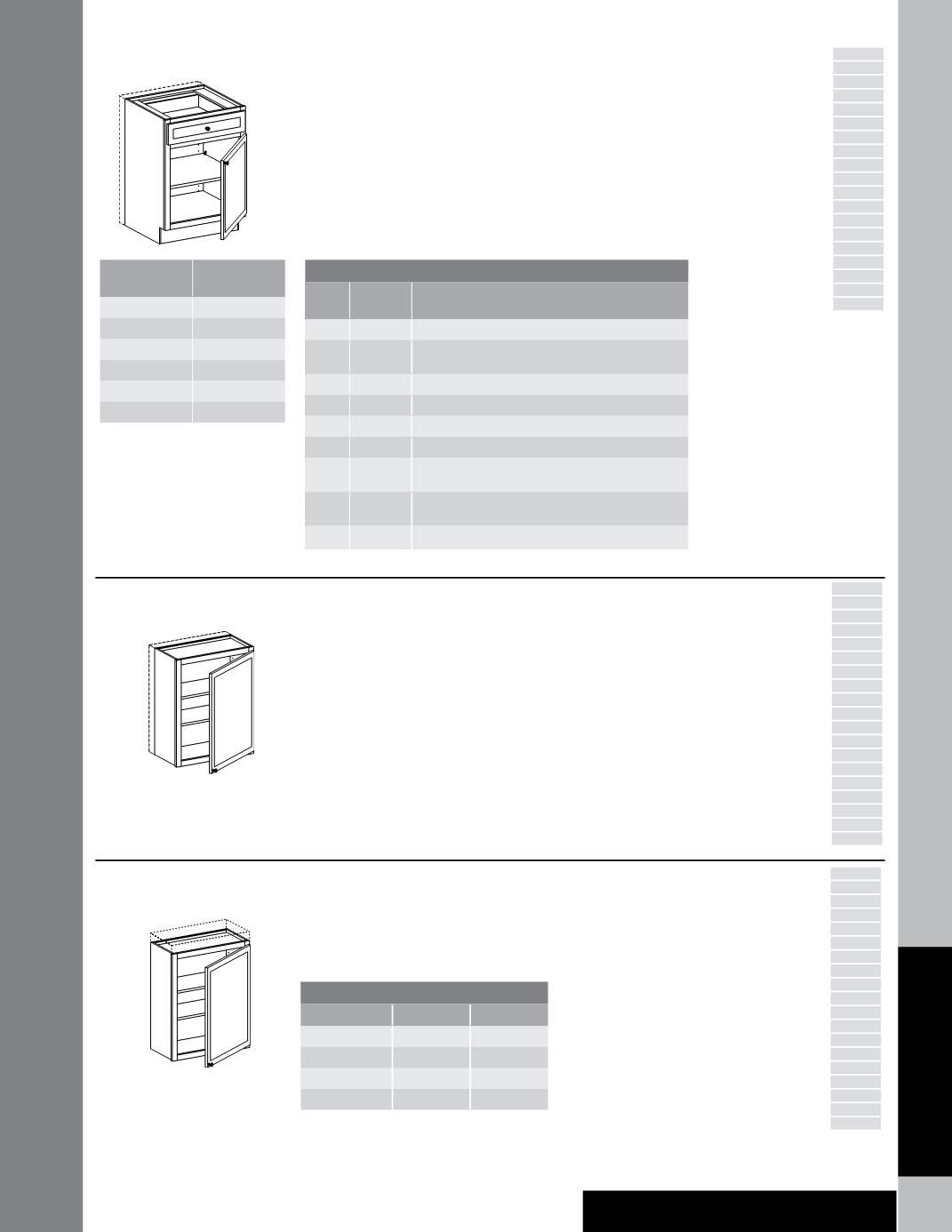

C23
Construction Options
Specifications and Options
Reduced Depth
One Dimension
RD
• Many cabinets can be reduced to your
desired depth in 1/16” increments. We do
have suggested minimums that control
function of cabinets. See chart
• Any cabinet reduced in depth to less than
4 5/8” will be shipped as a Cabinet Front
Only (CFO)
• Consult option availability chart for your
desired cabinet
• Order Example: B24R-RD reduced depth to
20 1/4”
PE
APC
APFC
FPEB
MI
DE
OE
CW
l
RD
ID
CH
IF
TWR
WR
XS
XSG
GD
RTK
RTKP
Cabinets
Reason for restrictions
4
⅝
˝
All
Minimum for shelf hole drilling
6˝
All except
walls
Minimum for toe kick notch Less than 6” WR is mandatory
9˝
PB
Minimum for toe kick notch Less than 9” WR is mandatory
10˝
WZA
Minimum allowed
10 ⅝˝
WZA
Minimum for shelf
12˝
BZA
Minimum allowed
12˝ All except
walls
18˝
BEA
WEA
Minimum allowed
12˝
WWH
Minimum for working drawer - less than 12” depth
will have false drawer
Wine Storage section always 12” deep
Reduced Depth
Min.
Depth
Cabinet
Drawer Box
Depth
24” >
20 ⁄
”
21”–23 ⁄
”
17 ⁄
”
18”–20 ⁄
”
14 ⁄
”
15”–17 ⁄
”
11 ⁄
”
12”–14 ⁄
”
8 ⁄
”
< 12”
No drawer
Increased Depth
One Dimension
ID
• Many wall cabinets can be increased to a 24”
depth, in 1/16” increments. Consult option
availability chart for your desired cabinet
• Any wall cabinet over 24˝ wide, at least 30˝
high with a depth greater than 12˝
must
be
installed between two cabinets, a cabinet
and a wall or supported from below. The
same is also true for cabinets with BUTT
doors
• Order Example: W2430R-ID increased depth
to 16 1/4”
• Maximum Increased Depth (ID) for
peninsula wall cabinets is 15˝
•
Note
: Maximum cabinet width for this
option is 36”
PE
APC
APFC
FPEB
MI
DE
OE
CW
RD
l
ID
CH
IF
TWR
WR
XS
XSG
GD
RTK
RTKP
15˝
Change Height
One Dimension
CH
• Many cabinets can be modified to your
desired height in 1/16” increments. Consult
option availability chart for your desired
cabinet
• Specify overall finished height. Example 1:
W1836L-CH 33 1/2”; Example 2: B30BUTT-CH
40 1/2”
• To Change Height (CH) on wall cabinets
18 1/16” to 23 7/16” H, select a nominal 24” H
cabinet (heights cannot be modified on 21” H
cabinets); for heights 23 9/16” to 29 15/16” H,
select a nominal 30” H cabinet (heights cannot
be modified on 27” H cabinets)
• 34 1/2” H Base Cabinets can be increased in
height to 42” H; height adjustments will be
made to the door section of the base cabinet,
therefore height adjustments are
not
available
for drawer stack cabinets
• For Tall 72 1/2”–83 15/16” H, select a nominal
84” H cabinet; height adjustments will be
made to the upper section of the tall cabinet
•
Not
available in High-Gloss Laminate or Woodgrain
Laminate door styles
PE
APC
APFC
FPEB
MI
DE
OE
CW
RD
ID
l
CH
IF
TWR
WR
XS
XSG
GD
RTK
RTKP
Change Height
Cabinet
Wall
12˝
54˝
Base
29 ⁄
˝
42˝
Tall
Vanity Base
72½˝
29 ⁄
˝
96˝
42˝
Max. Height
Min. Height
