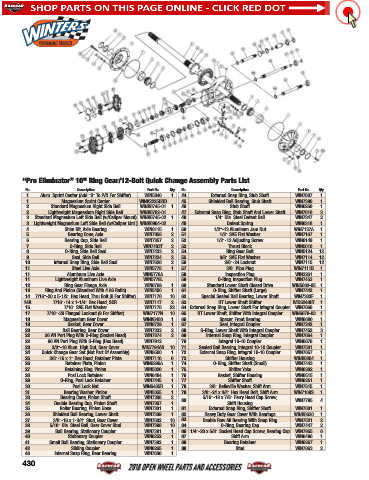

“Pro Eliminator” 10" Ring Gear/12-Bolt Quick Change Assembly Parts List
No. Description Part No. Qty. No. Description Part No. Qty.
1 Alum. Sprint Center (Add “S” To P/N For Shifter) WIN5840 1 44 External Snap Ring, Stub Shaft WIN7637 1
1 Magnesium Sprint Center WINK2225UHD 45 Shielded Ball Bearing, Stub Shaft WIN7390 1
2 Standard Magnesium Right Side Bell WINK6745-01 1 46 Stub Shaft WIN6250 1
2 Lightweight Magnesium Right Side Bell WINK6782-01 47 External Snap Ring, Stub Shaft And Lower Shaft WIN7610 3
3 Standard Magnesium Left Side Bell (w/Caliper Mount) WINK6745-02 1 48 1/4" Dia. Steel Detent Ball WIN7347 2
3 Lightweight Magnesium Left Side Bell (w/Caliper Mnt.) WINK6964-02 49 Detent Spring WIN6318 1
4 Shim Kit, Axle Bearing WIN6115 1 50 1/2"-13 Aluminum Jam Nut WIN7137A 1
5 Bearing Cone, Axle WIN7358 2 51 1/2" SAE Flat Washer WIN7167 1
6 Bearing Cup, Side Bell WIN7357 2 52 1/2"-13 Adjusting Screw WIN6149 1
7 O-Ring, Side Bell WIN7403T 2 53 Thrust Block WIN5010 1
8 O-Ring, Side Bell Seal WIN7433 2 54 Ring Gear Bolt WIN5124 12
9 Seal, Side Bell WIN7224 2 55 3/8" SAE Flat Washer WIN7114 12
10 Internal Snap Ring, Side Bell Seal WIN7626 2 56 3/8"-24 Locknut WIN7115 12
11 Steel Live Axle WIN5778 1 57 3/8" Pipe Plug WIN7111B 1
11 Aluminum Live Axle WIN5778A 58 Inspection Plug WIN3261 1
11 Lightweight Aluminum Live Axle WIN5778L 59 O-Ring, Inspection Plug WIN7453 1
12 Ring Gear Flange, Axle WIN6769 1 60 Standard Lower Shaft Closed Drive WIN5003-05 1
13 Ring And Pinion (Standard With 4.86 Ratio) WIN5400 1 61 O-Ring, Shifter Shaft (Large) WIN7442 1
14 7/16"-20 x 5-1/2" Hex Head, Thru Bolt (9 For Shifter) WIN7176 10 62 Special Sealed Ball Bearing, Lower Shaft WIN7383F 1
14A 7/16"-14 x 1-1/4" Hex Head, SCR. WIN7117 2 63 HT Lower Shaft Shifter WIN6249HT 1
15 7/16" SAE Flat Washer WIN7178 22 64 External Snap Ring, Lower Shaft For Integral Coupler WIN7660 1
17 7/16"-20 Flanged Locknut (9 For Shifter) WIN7177N 10 65 HT Lower Shaft, Shifter With Integral Coupler WIN6678-03 1
18 Magnesium Gear Cover WINK6480 1 66 Spacer, Front Bearing WIN6680 1
19 Gasket, Gear Cover WIN6729 1 67 Seal, Integral Coupler WIN7242 1
20 Ball Bearing, Gear Cover WIN7332 2 68 O-Ring, Lower Shaft With Integral Coupler WIN7452 3
22 #6 AN Port Plug With O-Ring (Socket Head) WIN7874 2 69 Internal Snap Ring, Integral Coupler WIN7664 1
22 #6 AN Port Plug With O-Ring (Hex Head) WIN7912 70 Integral 10-10 Coupler WIN6676 1
23 3/8"-16 Alum. High Nut, Gear Cover WIN7794AR 10 71 Sealed Ball Bearing, Integral 10-10 Coupler WIN7531 1
24 Quick Change Gear Set (Not Part Of Assembly) WIN8500 1 72 External Snap Ring, Integral 10-10 Coupler WIN7657 1
25 3/8"-16 x 1" Hex Head, Retainer Plate WIN7110 6 73 Shifter Housing WINK6264 1
26 Retainer Plate, Pinion WIN6296A 1 74 O-Ring, Shifter Shaft (Small) WIN7443 1
27 Retaining Ring, Pinion WIN5020 1 75 Shifter Yoke WIN6302 1
28 Posi Lock Retainer WIN6484 1 76 Gasket, Shifter Housing WIN6515 1
29 O-Ring, Posi Lock Retainer WIN7445 1 77 Shifter Shaft WIN6251 1
30 Posi Lock Nut WIN6485R 1 78 3/8" Belleville Washer, Shift Arm WIN7815 1
31 Bearing Washer, Pinion WIN5055 1 79 3/8"-24 x 3/4" Hex Head Bolt, Shift Arm WIN7109S 1
33 Bearing Cone, Pinion Shaft WIN7308 2 80 5/16"-18 x 7/8" Ferry Head Cap Screw, WIN7795 4
34 Double Bearing Cup, Pinion Shaft WIN7307 1 Shift Housing
35 Roller Bearing, Pinion Nose WIN7331 1 81 External Snap Ring, Shifter Shaft WIN7631 1
36 Shielded Ball Bearing, Lower Shaft WIN7339 1 82 Heavy Duty Gear Cover With Bearings WINK6630 1
37 3/8"-16 x 1-3/4" Stud, Gear Cover WIN7802 10 83 Double Row All Bearing With Snap Ring WIN7521 2
38 5/16" Dia. Steel Ball, Gear Cover Stud WIN7398 10 84 O-Ring, Bearing Cap WIN7447 2
39 Ball Bearing, Stationary Coupler WIN7391 1 86 1/4"-20 x 5/8" Socket Head Cap Screw, Bearing Cap WIN7955 6
40 Stationary Coupler WIN6252 1 87 Shift Arm WIN6496 1
41 Small Ball Bearing, Stationary Coupler WIN7392 1 88 Bearing Retainer WIN6267 1
42 Sliding Coupler WIN6265 1 89 Stud WIN7863 2
43 Internal Snap Ring, Rear Bearing WIN7636 1
