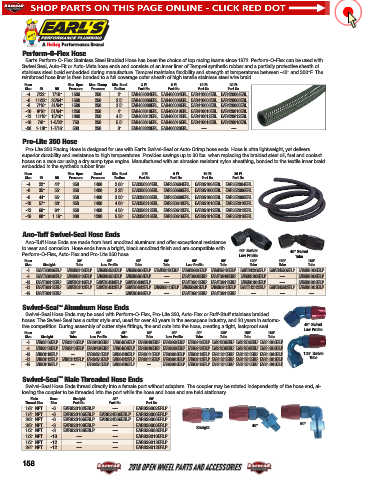

Page 159 - 2018 Racecar Engineering Open Wheel Parts and Accessories Catalog

Perform-O-Flex Hose
Earl’s Perform-O-Flex Stainless Steel Braided Hose has been the choice of top racing teams since 1972. Perform-O-Flex can be used with
Swivel Seal, Auto-Fit or Auto-Mate hose ends and consists of an inner liner of Temprel synthetic rubber and a partially protective sheath of
stainless steel braid embedded during manufacture. Temprel maintains flexibility and strength at temperatures between -40° and 300°F. The
reinforced hose liner is then bonded to a full coverage outer sheath of high tensile stainless steel wire braid.
Hose Max. Oper. Max. Clamp Min. Bend 3 Ft. 6 Ft. 10 Ft. 20 Ft.
Size ID OD Pressure Pressure Radius Part No. Part No. Part No. Part No.
-4 7/32" 7/16" 1500 250 2" EAR403004ERL EAR406004ERL EAR410004ERL EAR420004ERL
-6 11/32" 35/64" 1500 250 2.5" EAR403006ERL EAR406006ERL EAR410006ERL EAR420006ERL
-8 7/16" 41/64" 1500 250 3.5" EAR403008ERL EAR406008ERL EAR410008ERL EAR420008ERL
-10 9/16" 51/64" 1250 250 4" EAR403010ERL EAR406010ERL EAR410010ERL EAR420010ERL
-12 11/16" 15/16" 1000 250 4.5" EAR403012ERL EAR406012ERL EAR410012ERL EAR420012ERL
-16 7/8" 1-5/32" 750 250 5.5" EAR403016ERL EAR406016ERL EAR410016ERL EAR420016ERL
-20 1-1/8" 1-7/16" 500 250 8" EAR403020ERL EAR406020ERL — —
Pro-Lite 350 Hose
Pro-Lite 350 Racing Hose is designed for use with Earl’s Swivel-Seal or Auto-Crimp hose ends. Hose is ultra lightweight, yet delivers
superior durability and resistance to high temperatures. Provides savings up to 30 lbs. when replacing the braided steel oil, fuel and coolant
hoses on a race car using a dry sump type engine. Manufactured with an abrasion resistant nylon sheathing, bonded to the textile inner braid
embedded in the synthetic rubber liner.
Hose Max. Oper. Burst Min. Bend 3 Ft. 6 Ft. 10 Ft. 20 Ft.
Size ID OD Pressure Pressure Radius Part No. Part No. Part No. Part No.
-4 .22" .44" 350 1400 2.00" EAR350304ERL EAR350604ERL EAR351004ERL EAR352004ERL
-6 .35" .55" 350 1400 2.25" EAR350306ERL EAR350606ERL EAR351006ERL EAR352006ERL
-8 .44" .65" 350 1400 3.50" EAR350308ERL EAR350608ERL EAR351008ERL EAR352008ERL
-10 .57" .80" 350 1400 4.00" EAR350310ERL EAR350610ERL EAR351010ERL EAR352010ERL
-12 .69" .94" 350 1400 4.50" EAR350312ERL EAR350612ERL EAR351012ERL EAR352012ERL
-16 .88" 1.16" 300 1200 5.50" EAR350316ERL EAR350616ERL EAR351016ERL EAR352016ERL

Ano-Tuff Swivel-Seal Hose Ends
Ano-Tuff Hose Ends are made from hard anodized aluminum and offer exceptional resistance
to wear and corrosion. Hose ends have a bright, black anodized finish and are compatible with
90° Swivel 45° Swivel
Perform-O-Flex, Auto-Flex and Pro-Lite 350 hose. Low Profile Tube
Hose 30° 45° 45° 60° 90° 90° 120° 150° 180°
Size Straight Tube Low Profile Tube Tube Low Profile Tube Tube Tube Tube
-6 EARAT800106ERLP EARAT803106ERLP EARAT804506ERLP EARAT804606ERLP EARAT806106ERLP EARAT809006ERLP EARAT809106ERLP EARAT812006ERLP EARAT815006ERLP EARAT818006ERLP
-8 EARAT800108ERLP EARAT803108ERLP EARAT804508ERLP EARAT804608ERLP — EARAT809008ERLP EARAT809108ERLP EARAT812008ERLP — EARAT818008ERLP
-10 EARAT800110ERLP EARAT803110ERLP EARAT804510ERLP EARAT804610ERLP — EARAT809010ERLP EARAT809110ERLP EARAT812010ERLP — EARAT818010ERLP
-12 EARAT800112ERLP EARAT803112ERLP EARAT804512ERLP EARAT804612ERLP EARAT806112ERLP EARAT809012ERLP EARAT809112ERLP EARAT812012ERLP EARAT815012ERLP EARAT818012ERLP
-16 EARAT800116ERLP — — EARAT804616ERLP — EARAT809016ERLP EARAT809116ERLP — — —

™
Swivel-Seal Aluminum Hose Ends
Swivel-Seal Hose Ends may be used with Perform-O-Flex, Pro-Lite 350, Auto-Flex or Ruff-Stuff stainless braided
hoses. The Swivel-Seal has a cutter style end, used for over 40 years in the aerospace industry, and 20 years in automo-
45° Swivel
tive competition. During assembly of cutter style fittings, the end cuts into the hose, creating a tight, leakproof seal.
Low Profile
Hose 30° 45° 45° 60° 90° 90° 120° 150° 180°
Size Straight Tube Low Profile Tube Tube Low Profile Tube Tube Tube Tube
-6 EAR800106ERLP EAR803106ERLP EAR804506ERLP EAR804606ERLP EAR806106ERLP EAR809006ERLP EAR809106ERLP EAR812006ERLP EAR815006ERLP EAR818006ERLP
-8 EAR800108ERLP EAR803108ERLP EAR804508ERLP EAR804608ERLP EAR806108ERLP EAR809008ERLP EAR809108ERLP EAR812008ERLP EAR815008ERLP EAR818008ERLP
-10 EAR800110ERLP — EAR804510ERLP EAR804610ERLP EAR806110ERLP EAR809010ERLP EAR809110ERLP EAR812010ERLP EAR815010ERLP EAR818010ERLP 120° Swivel
Tube
-12 EAR800112ERLP EAR803112ERLP EAR804512ERLP EAR804612ERLP EAR806112ERLP EAR809012ERLP EAR809112ERLP EAR812012ERLP EAR815012ERLP EAR818012ERLP
-16 EAR800116ERLP — EAR804516ERLP EAR804616ERLP — EAR809016ERLP EAR809116ERLP EAR812016ERLP EAR815016ERLP EAR818016ERLP
Swivel-Seal Male Threaded Hose Ends
™
Swivel-Seal Hose Ends thread directly into a female port without adapters. The coupler may be rotated independently of the hose end, al-
lowing the coupler to be threaded into the port while the hose and hose end are held stationary.
Male Hose Straight 45° 90°
Thread Size Size Part No. Part No. Part No.
1/8" NPT -6 EAR820162ERLP — EAR829062ERLP
1/4" NPT -6 EAR820106ERLP EAR824506ERLP EAR829006ERLP
3/8" NPT -6 EAR820166ERLP EAR824566ERLP EAR829066ERLP
3/8" NPT -8 EAR820108ERLP — EAR829008ERLP Straight 45° 90°
1/2" NPT -8 EAR820188ERLP — EAR829088ERLP
1/2" NPT -10 — — EAR829010ERLP
1/2" NPT -12 — — EAR829013ERLP
3/4" NPT -12 — — EAR829012ERLP

158
