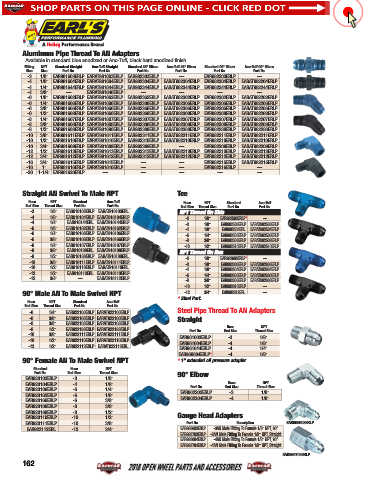

Page 163 - 2018 Racecar Engineering Open Wheel Parts and Accessories Catalog

Aluminum Pipe Thread To AN Adapters
(]HPSHISL PU Z[HUKHYK IS\L HUVKPaLK VY (UV ;\Ɉ ISHJR OHYK HUVKPaLK ÄUPZO
Fitting NPT Standard Straight Ano-Tuff Straight Standard 45° Elbow Ano-Tuff 45° Elbow Standard 90° Elbow Ano-Tuff 90° Elbow
Size Size Part No. Part No. Part No. Part No. Part No. Part No.
-3 1/8" EAR981603ERLP EARAT981603ERLP EAR982303ERLP — EAR982203ERLP —
-4 1/8" EAR981604ERLP EARAT981604ERLP EAR982304ERLP EARAT982304ERLP EAR982204ERLP EARAT982204ERLP
-4 1/4" EAR981644ERLP EARAT981644ERLP EAR982344ERLP EARAT982344ERLP EAR982244ERLP EARAT982244ERLP
-4 3/8" — EARAT981646ERLP — — — —
-6 1/8" EAR981662ERLP EARAT981662ERLP EAR982362ERLP EARAT982362ERLP EAR982262ERLP EARAT982262ERLP
-6 1/4" EAR981606ERLP EARAT981606ERLP EAR982306ERLP EARAT982306ERLP EAR982206ERLP EARAT982206ERLP
-6 3/8" EAR981666ERLP EARAT981666ERLP EAR982366ERLP EARAT982366ERLP EAR982266ERLP EARAT982266ERLP
-6 1/2" EAR981668ERLP EARAT981668ERLP EAR982368ERLP EARAT982368ERLP EAR982268ERLP EARAT982268ERLP
-8 1/4" EAR981607ERLP EARAT981607ERLP EAR982307ERLP EARAT982307ERLP EAR982207ERLP EARAT982207ERLP
-8 3/8" EAR981608ERLP EARAT981608ERLP EAR982308ERLP EARAT982308ERLP EAR982208ERLP EARAT982208ERLP
-8 1/2" EAR981688ERLP EARAT981688ERLP EAR982388ERLP EARAT982388ERLP EAR982288ERLP EARAT982288ERLP
-10 3/8" EAR981611ERLP EARAT981611ERLP EAR982311ERLP EARAT982311ERLP EAR982211ERLP EARAT982211ERLP
-10 1/2" EAR981610ERLP EARAT981610ERLP EAR982310ERLP EARAT982310ERLP EAR982210ERLP EARAT982210ERLP
-10 3/4" EAR981609ERLP EARAT981609ERLP EAR982309ERLP — EAR982209ERLP EARAT982209ERLP
-12 1/2" EAR981613ERLP EARAT981613ERLP EAR982313ERLP EARAT982313ERLP EAR982213ERLP EARAT982213ERLP
-12 3/4" EAR981612ERLP EARAT981612ERLP EAR982312ERLP EARAT982312ERLP EAR982212ERLP EARAT982212ERLP
-16 3/4" EAR981615ERLP EARAT981615ERLP — — EAR982215ERLP EARAT982215ERLP
-16 1" EAR981616ERLP EARAT981616ERLP — — EAR982216ERLP —
-20 1-1/4" EAR981620ERLP — — — — —

Straight AN Swivel To Male NPT Tee
Hose NPT Standard Ano-Tuff Hose NPT Standard Ano-Tuff
End Size Thread Size Part No. Part No. End Size Thread Size Part No. Part No.
-3 1/8" EAR916103ERLP EARAT916103ERL NPT Thread On Side
-4 1/8" EAR916104ERLP EARAT916104ERLP -3 1/8" EAR962503ERLP* —
-4 1/4" EAR916144ERL EARAT916144ERLP -3 1/8" EAR982503ERLP EARAT982503ERLP
-6 1/8" EAR916162ERLP EARAT916162ERLP -4 1/8" EAR982504ERL EARAT982504ERLP
-6 1/4" EAR916106ERLP EARAT916106ERLP -6 1/4" EAR982506ERLP EARAT982506ERLP
-6 3/8" EAR916166ERLP EARAT916166ERLP -8 3/8" EAR982508ERLP EARAT982508ERLP
-8 1/4" EAR916107ERLP EARAT916107ERLP -10 1/2" EAR982510ERLP EARAT982510ERLP
-8 3/8" EAR916108ERL EARAT916108ERLP NPT Thread On Run
-8 1/2" EAR916188ERLP EARAT916188ERL -3 1/8" EAR962603ERLP* —
-10 3/8" EAR916111ERLP EARAT916111ERLP -3 1/8" EAR982603ERLP EARAT982603ERLP
-10 1/2" EAR916110ERLP EARAT916110ERL -4 1/8" EAR982604ERLP EARAT982604ERLP
-12 1/2" EAR916113ERL EARAT916113ERLP -6 1/4" EAR982606ERLP EARAT982606ERLP
-12 3/4" — EARAT916112ERLP -8 3/8" EAR982608ERLP EARAT982608ERLP
-10 1/2" EAR982610ERLP —
90° Male AN To Male Swivel NPT -12 3/4" EAR982612ERL —
* Steel Part.
Hose NPT Standard Ano-Tuff
End Size Thread Size Part No. Part No.
-6 1/4" EAR922106ERLP EARAT922106ERLP Steel Pipe Thread To AN Adapters
-6 3/8" EAR922166ERLP EARAT922166ERLP Straight
-8 3/8" EAR922108ERLP EARAT922108ERLP
Hose
NPT
-8 1/2" EAR922188ERLP EARAT922188ERLP Part No. End Size Thread Size
-10 3/8" EAR922111ERLP EARAT922111ERLP EAR961603ERLP -3 1/8"
-10 1/2" EAR922110ERLP EARAT922110ERLP EAR961604ERLP -4 1/8"
-12 1/2" EAR922113ERLP EARAT922113ERL
EAR961644ERLP -4 1/4"
EAR968804ERLP* -4 1/8"
90° Female AN To Male Swivel NPT * 1” extended oil pressure adapter
Standard Hose NPT
Part No. End Size Thread Size 90° Elbow
EAR923103ERLP -3 1/8"
Hose
NPT
EAR923104ERLP -4 1/8" Part No. End Size Thread Size
EAR923106ERLP -6 1/4" EAR962203ERLP -3 1/8"
EAR923162ERLP -6 1/8" EAR962204ERLP -4 1/8"
EAR923166ERLP -6 3/8"
EAR923108ERLP -8 3/8"
EAR923188ERLP -8 1/2" Gauge Head Adapters
EAR923110ERLP -10 1/2"
EAR923111ERLP -10 3/8" Part No. Description EAR968603ERLP
EAR923112ERL -12 3/4" EAR968603ERLP -3AN Male Fitting To Female 1/8" NPT, 90°
EAR968703ERLP -3AN Male Fitting To Female 1/8" NPT, Straight
EAR968604ERLP -4AN Male Fitting To Female 1/8" NPT, 90°
EAR968704ERLP -4AN Male Fitting To Female 1/8" NPT, Straight
EAR968703ERLP
162
