Tall Appliance Cabinets
Note
: Remember to remove the white plastic “feet” from the bottom of all tall cabinets before
installation. Their sole purpose is to protect the floor after the cabinets are unboxed. Leaving them on
will result in uneven installation.
Tall Cabinets

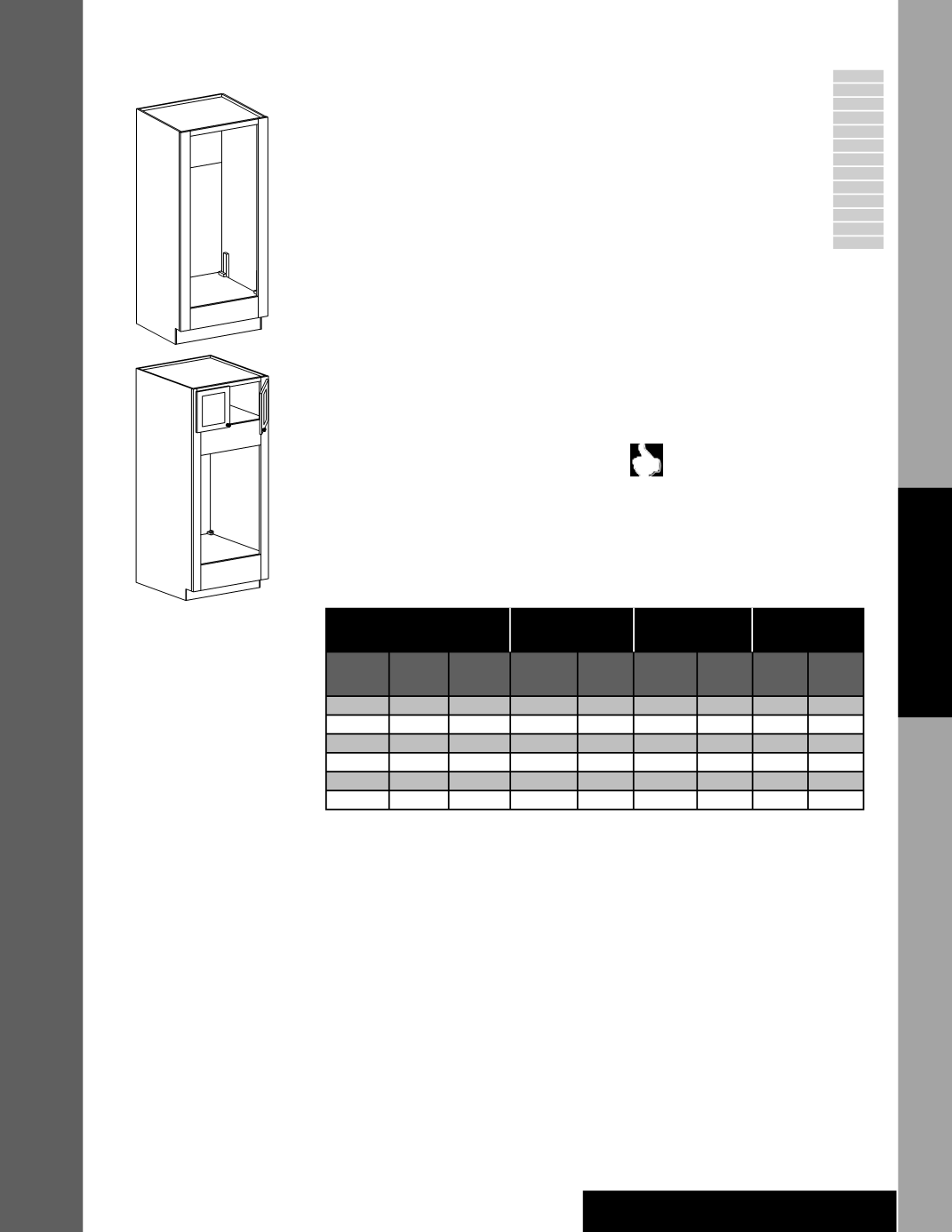

Oven Cabinet–Double Extended Opening w/3” Stiles
60 1/2” High
i
OC242460 DE
OC272460 DE
OC302460 DE
OC312460 DE
OC332460 DE
84” High
i
OC242484 (Butt)DE
OC272484 (Butt)DE
OC302484 (Butt)DE
OC312484 (Butt)DE
OC332484 BUTTDE
87” High
i
OC242487 (Butt)DE
OC272487 (Butt)DE
OC302487 (Butt)DE
OC312487 (Butt)DE
OC332487 BUTTDE
90” High
i
OC242490 (Butt)DE
OC272490 (Butt)DE
OC302490 (Butt)DE
OC312490 (Butt)DE
OC332490 BUTTDE
93” High
i
OC242493 (Butt)DE
OC272493 (Butt)DE
OC302493 (Butt)DE
OC312493 (Butt)DE
OC332493 BUTTDE
96” High
i
OC242496 (Butt)DE
OC272496 (Butt)DE
OC302496 (Butt)DE
OC312496 (Butt)DE
OC332496 BUTTDE
• Includes adjustable shelves in upper
section: 60”, 84” & 87” high—no
shelves; 90” & 93” high—one shelf; 96”
high—two shelves
• Double Oven Opening Kit (DOK) shelf
available for two appliance installation;
see Tall Accessories section of this
book
• Oven Trim Kit (overlay panel)
available for a full overlay look; see Tall
Accessories section of this book
I
Wide Bottom Rail (WR) and Recessed
Toe Kick (RTK)
not
available on 93” & 96” high
cabinets
• Toe kick is shipped separately on 93˝ & 96˝ high
cabinets
I
Void Toe Kick (VTK) is
not
available on 93” and 96”
high cabinets
•
Not
available with knife hinge door option
• Roll-out Trays (ROT) are
not
available for 31 1/2”
wide cabinets
I
Maximum Increased Depth (ID) is 27”
•
Note
: When ordering glass doors in full overlay door
styles, a portion of the 3” face frame will be visible
Remember to order a 3/16” skin (WSK) for
the exposed ends of 93” & 96” high
cabinets to conceal the seam between the
loose toe kick and the cabinet.
l
PE
l
APC
l
APFC
l
FPEB
l
MI
l
RD
I
ID
IF
I
WR
l
XS
l
GD
I
RTK
I
VTK
84˝
87˝
90˝
93˝
96˝
18˝
21˝
23 ½˝
27˝
30˝
10˝
24˝
24˝
60 ½˝
OC_60
OC_84-OC_96
Cut out dimensions
60” H Cabinet
84”-87” H
Cabinet
90”+ H Cabinet
Cabinet
Width
Min.
Width
Max.
Width
Min.
Height
Max.
Height
Min.
Height
Max.
Height
Min.
Height
Max.
Height
24"
21"
22"
48 1/2" 50 1/2”
43"
56 1/2”
43"
57”
27"
21"
25"
48 1/2” 50 1/2”
43”
56 1/2”
43”
57”
30"
24"
28"
48 1/2” 50 1/2”
43”
56 1/2”
43”
57”
31 1/2" 25 1/2" 29 1/2"
48 1/2” 50 1/2”
43”
56 1/2”
43”
57”
33"
27"
31"
48 1/2” 50 1/2”
43”
56 1/2”
43”
57”
39”
33”
37”
48 1/2” 50 1/2”
43”
56 1/2”
43”
57”
i
1 1/2˝ stiles
Grey color coding indicates new product, size or code.
