F16
Tall Appliance Cabinets
Note
: Remember to remove the white plastic “feet” from the bottom of all tall cabinets before
installation. Their sole purpose is to protect the floor after the cabinets are unboxed. Leaving them on
will result in uneven installation.
Tall Cabinets

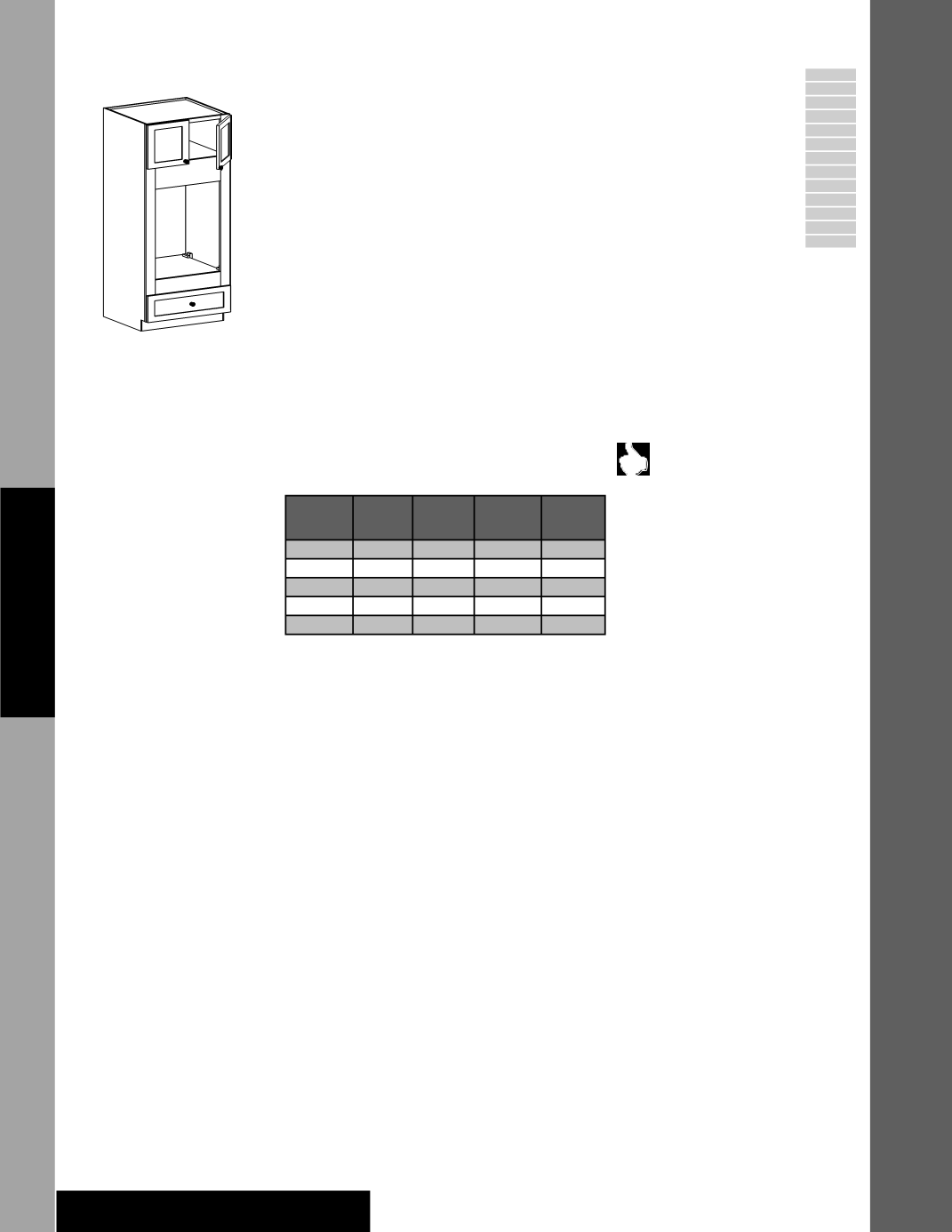

Oven Cabinet–Double w/3” Stiles–Deep Drawer
84” High
i
OC242484 (Butt)D•DD
OC272484 (Butt)D•DD
OC302484 (Butt)D•DD
OC312484 (Butt)D•DD
OC332484 BUTTD•DD
87” High
i
OC242487 (Butt)D•DD
OC272487 (Butt)D•DD
OC302487 (Butt)D•DD
OC312487 (Butt)D•DD
OC332487 BUTTD•DD
90” High
i
OC242490 (Butt)D•DD
OC272490 (Butt)D•DD
OC302490 (Butt)D•DD
OC312490 (Butt)D•DD
OC332490 BUTTD•DD
93” High
i
OC242493 (Butt)D•DD
OC272493 (Butt)D•DD
OC302493 (Butt)D•DD
OC312493 (Butt)D•DD
OC332493 BUTTD•DD
96” High
i
OC242496 (Butt)D•DD
OC272496 (Butt)D•DD
OC302496 (Butt)D•DD
OC312496 (Butt)D•DD
OC332496 BUTTD•DD
7˝
24˝
84˝
87˝
90˝
93˝
96˝
18˝
21˝
23 ½˝
27˝
30˝
Cabinet
Width
Min.
Width
Max.
Width
Min.
Height
Max.
Height
24"
21"
22"
36 1/2”
47"
27"
21"
25"
36 1/2”
47”
30"
24"
28"
36 1/2”
47”
31 1/2"
25 1/2" 29 1/2"
36 1/2”
47”
33"
27"
31"
36 1/2”
47”
Cut out dimensions
i
1 1/2˝ stiles
Grey color coding indicates new product, size or code.
• Includes adjustable shelves in upper
section: 84” high—no shelves; 87”,
90” & 93” high—one shelf; 96”
high—two shelves
• Oven Trim Kit (overlay panel)
available for a full overlay look; see
Tall Accessories section of this book
• Double Oven Opening Kit (DOK)
shelf available for two appliance
installation; see Tall Accessories
section of this book
I
Wide Bottom Rail (WR) and
Recessed Toe Kick (RTK)
not
available on 93” &
96” high cabinets
I
Void Toe Kick (VTK) is
not
available on 93” and
96” high cabinets
I
Glass doors available for top doors only
•
Not
available with knife hinge door option
• Roll-out Trays (ROT) are
not
available for 31 1/2”
wide cabinets
I
Maximum Increased Depth (ID) is 27”
•
Note
: When ordering glass doors in full overlay
door styles, a portion of the 3” face frame will be
visible
Remember to order a 3/16” skin (WSK)
for the exposed ends of 93” & 96” high
cabinets to conceal the seam between
the loose toe kick and the cabinet.
l
PE
l
APC
l
APFC
l
FPEB
l
MI
l
RD
I
ID
IF
I
WR
l
XS
I
GD
I
RTK
I
VTK
