Tall Cabinets
Note
: Remember to remove the white plastic “feet” from the bottom of all tall cabinets before
installation. Their sole purpose is to protect the floor after the cabinets are unboxed. Leaving them on
will result in uneven installation.
Tall Cabinets

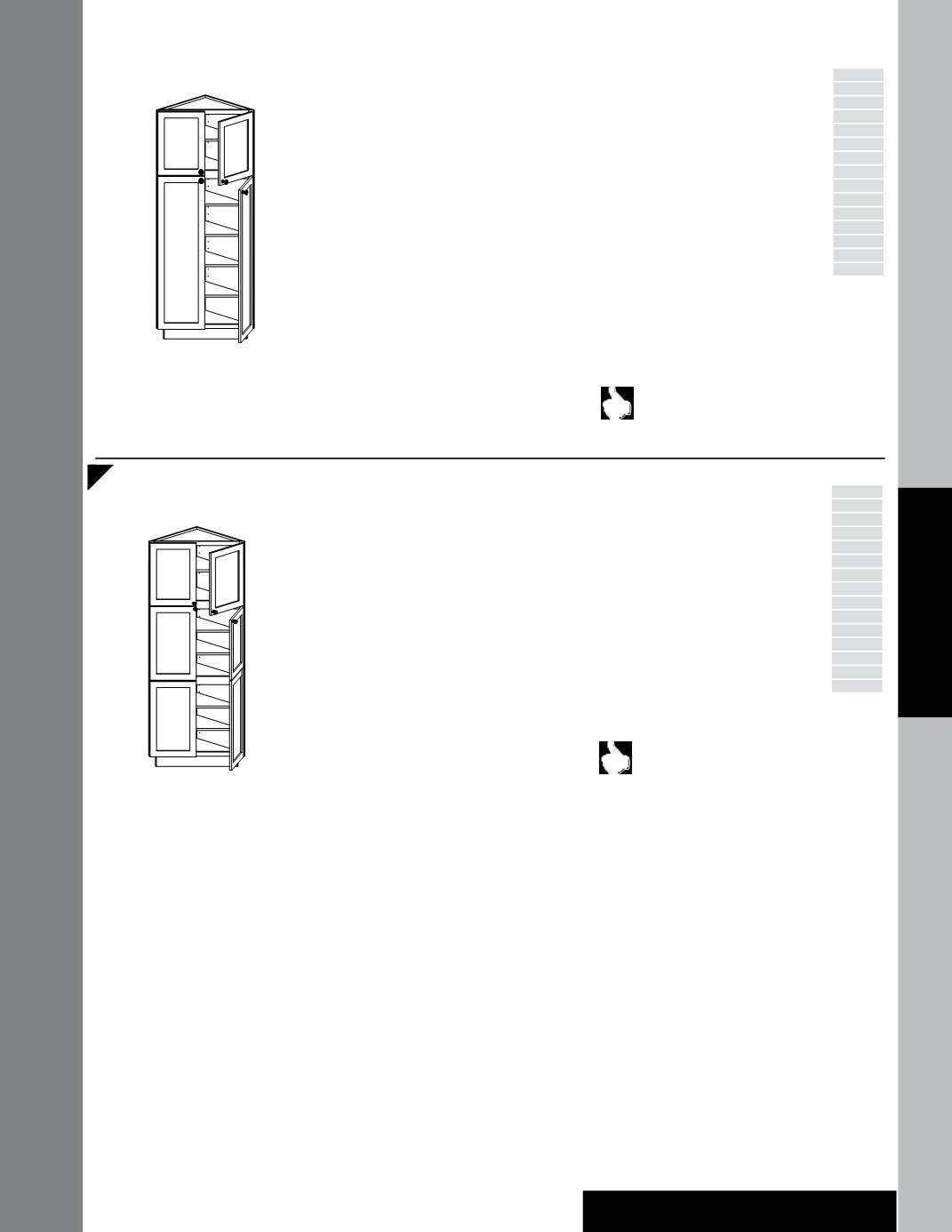

Tall Corner Angle
TCA242484 BUTT
TCA242487 BUTT
TCA242490 BUTT
TCA242493 BUTT
TCA242496 BUTT
• Includes adjustable shelves in upper section:
84” & 87” high—one shelf; 90” & 93” high—
two shelves; 96” high—three shelves
• Four adjustable bottom shelves; shipped
separately
• No center rail on tall door for Adrian,
Burnaby, Captiva, Carter, Castlewood,
Coleburne, Edgemont, Edgemont Cathedral,
Fielding, Grange, Hailey, Holace, Jackson,
Jasper, Kensie, Lennox Court, Lessex,
Madison, Maris, Newburgh, Parkdale,
Standish, Stanford, Summit, Torrington and
Veranda door styles
• Contrasting Back Options (CBEB, CPLB,
CVGR)
not
available
• Can be installed on either right or left end
• Toe kick is shipped separately on 93˝ & 96˝ high cabinets
• Replacement shelf available; specify BCAS2424
I
Void Toe Kick (VTK) is
not
available on 93” and 96” high
cabinets
End panels are unfinished; cabinet is intended to
be used with a Utility or Oven Cabinet. A panel
must
be used to cover the exposed side if
installing without an adjacent tall cabinet.
l
PE
l
APC
APFC
FPEB
l
MI
DE
OE
RD
ID
IF
WR
XS
l
GD
RTK
I
VTK
23½˝
27˝
30˝
33˝
36˝
84˝
87˝
90˝
93˝
96˝
Tall Corner Angle Stack
TCAST242484 BUTT
TCAST242487 BUTT
TCAST242490 BUTT
TCAST242493 BUTT
TCAST242496 BUTT
• Includes adjustable shelves in upper section:
84” & 87” high—one shelf; 90” & 93” high—
two shelves; 96” high—three shelves
• Four adjustable bottom shelves; shipped
separately
• Contrasting Back Options (CBEB, CPLB,
CVGR)
not
available
• Can be installed on either right or left end
• Toe kick is shipped separately on 93˝ & 96˝
high cabinets
• Replacement shelf available; specify
BCAS2424
I
Glass doors available for top section only
I
Void Toe Kick (VTK) is
not
available on 93” and 96” high
cabinets
End panels are unfinished; cabinet is intended to
be used with a Utility or Oven Cabinet. A panel
must
be used to cover the exposed side if
installing without an adjacent tall cabinet.
l
PE
l
APC
APFC
FPEB
l
MI
DE
OE
RD
ID
IF
WR
XS
I
GD
RTK
I
VTK
23 / ˝
23 ½˝
27˝
30˝
33˝
36˝
84˝
87˝
90˝
93˝
96˝
23 / ˝
30˝
26˝
New
