Tall Cabinets
F1
Tall Cabinets
Note
: Remember to remove the white plastic “feet” from the bottom of all tall cabinets before
installation. Their sole purpose is to protect the floor after the cabinets are unboxed. Leaving them on
will result in uneven installation.
Tall Cabinets
Construction Options and
Modifications
v
Included as standard
l
Available with an upcharge
I
Available with exceptions
(Blank)
Not
available
Note
: Standard tall cabinet box depth is 12”
or 24” unless stated otherwise. Add door
thickness with bumpers for total depth.
When BUTT is in all capitals, it
must
be included as part of your ordering
nomenclature. A (Butt) in parentheses is for
your information and isn’t required on an
order form.
Material dimensions may vary slightly based
on lumber industry standards.
Specifications subject to change without
notice.
PE Plywood Ends
APC All Plywood Construction
APFC All Plywood Furniture Construction
FPEB Furniture Plywood Ends
MI Matching Interior
DE Integrated Decorative End
RD Reduced Depth
IF Inverted Frame
WR Wide Bottom Rail
XS Extended Stile
GD Glass Doors
RTK Recessed Toe Kick
VTK Void Toe Kick
PS 18 24 84
code
width
depth
height

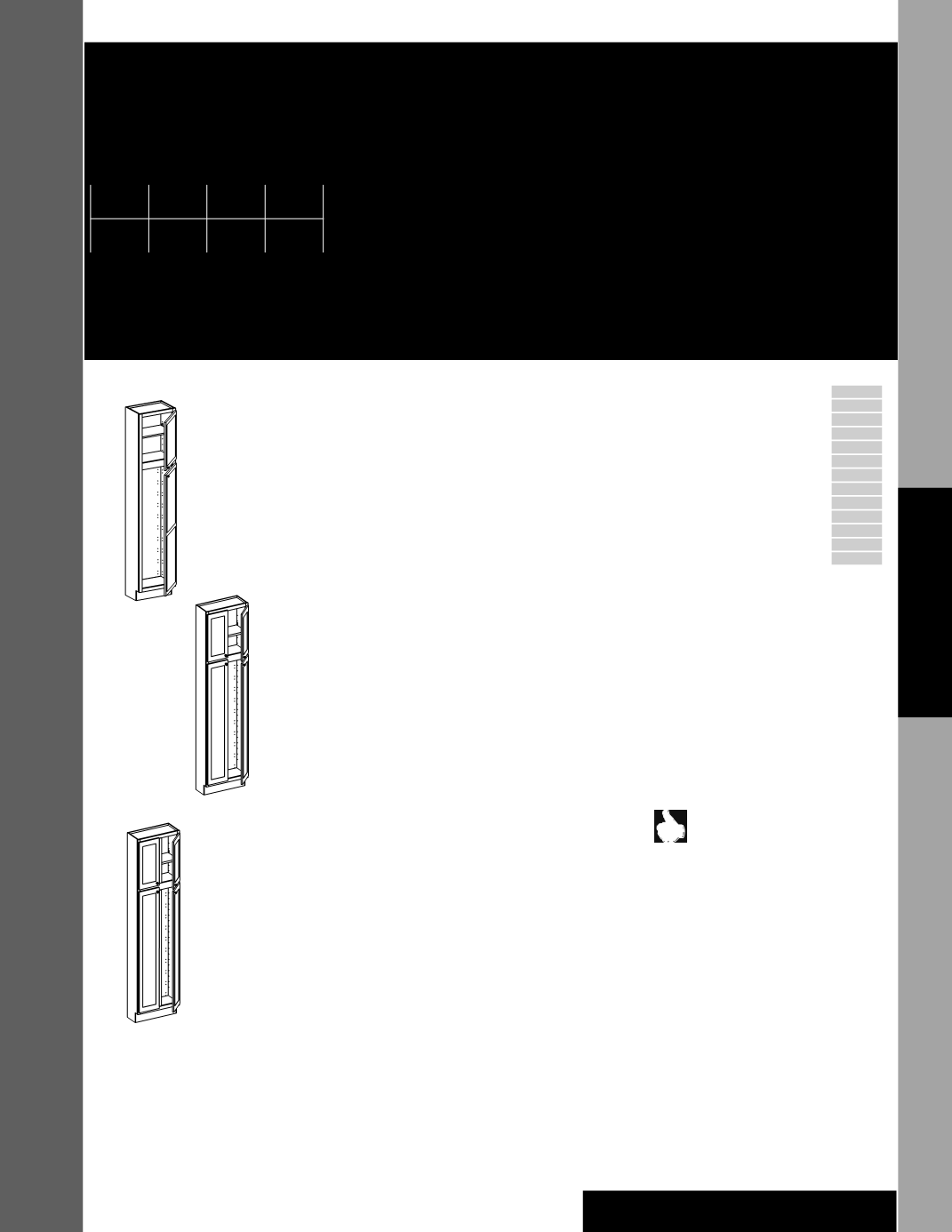

Utility Cabinets 12” Deep
Specify R or L
84” High
i;
U91284 R or L
U121284 R or L
U151284 R or L
U181284 R or L
U211284 R or L
U241284 R or L
U241284 BUTT
U271284 (Butt)
u
U301284
U301284 BUTT
u
U331284
U331284 BUTT
u
U361284
U361284 BUTT
87” High
i;
U91287 R or L
U121287 R or L
U151287 R or L
U181287 R or L
U211287 R or L
U241287 R or L
U241287 BUTT
U271287 (Butt)
u
U301287
U301287 BUTT
u
U331287
U331287 BUTT
u
U361287
U361287 BUTT
90” High
i;
U91290 R or L
U121290 R or L
U151290 R or L
U181290 R or L
U211290 R or L
U241290 R or L
U241290 BUTT
U271290 (Butt)
u
U301290
U301290 BUTT
u
U331290
U331290 BUTT
u
U361290
U361290 BUTT
93” High
i;
U91293 R or L
U121293 R or L
U151293 R or L
U181293 R or L
U211293 R or L
U241293 R or L
U241293 BUTT
U271293 (Butt)
u
U301293
U301293 BUTT
u
U331293
U331293 BUTT
u
U361293
U361293 BUTT
96” High
i;
U91296 R or L
U121296 R or L
U151296 R or L
U181296 R or L
U211296 R or L
U241296 R or L
U241296 BUTT
U271296 (Butt)
u
U301296
U301296 BUTT
u
U331296
U331296 BUTT
u
U361296
U361296 BUTT
• Includes adjustable shelves in
upper section: 84” & 87” high—
one shelf; 90” & 93” high—two
shelves; 96” high—three shelves
• No center rail on tall door
for Adrian, Beale, Captiva,
Carter, Castlewood, Edgemont,
Edgemont Cathedral, Englewood,
Edmundton, Fayetteville,
Fayetteville Cathedral, Grange,
Holace, Jackson, Jasper, Kensie,
Lennox Court, Madison, Maris,
Newburgh, Parkdale, Stanford,
Summit, Torrington and Veranda
door styles
• Toe kick is shipped separately on 93˝ & 96˝
high cabinets
I
WR and RTK
not
available on 93” & 96” high
cabinets
I
VTK is
not
available on 93” and 96” high
cabinets
I
When Inverted Frame (IF) is chosen in
arched door styles, U18, U24, U24BUTT
and U36, cabinets will have arched doors.
All other cabinet sizes will be supplied with
square doors
I
Glass doors available for top doors only
•
Note
: Shelf Kit (SK) for lower section
must
be ordered separately; see Shelving section
of this book
Remember to order a 3/16” skin
(WSK) for the exposed ends of 93”
& 96” high cabinets to conceal the
seam between the loose toe kick and the
cabinet.
l
PE
l
APC
l
APFC
l
FPEB
l
MI
l
DE
l
RD
I
IF
I
WR
l
XS
I
GD
I
RTK
I
VTK
84˝
87˝
90˝
93˝
96˝
12˝
U9-24
12˝
23 ½˝
27˝
30˝
33˝
36˝
84˝
87˝
90˝
93˝
96˝
23 ½˝
27˝
30˝
33˝
36˝
U24 BUTT -
U27 BUTT
12˝
84˝
87˝
90˝
93˝
96˝
23 ½˝
27˝
30˝
33˝
36˝
U30-36
with 3” center stile
i
Doors are square except full overlay arch door styles. Laminate door styles will always be square. Huntley,
Scarbourough and Veranda doors will have a solid, recessed flat panel.
;
Glass door option
not
available
u
3” center stile
Gray color coding indicates new product, size or code.
