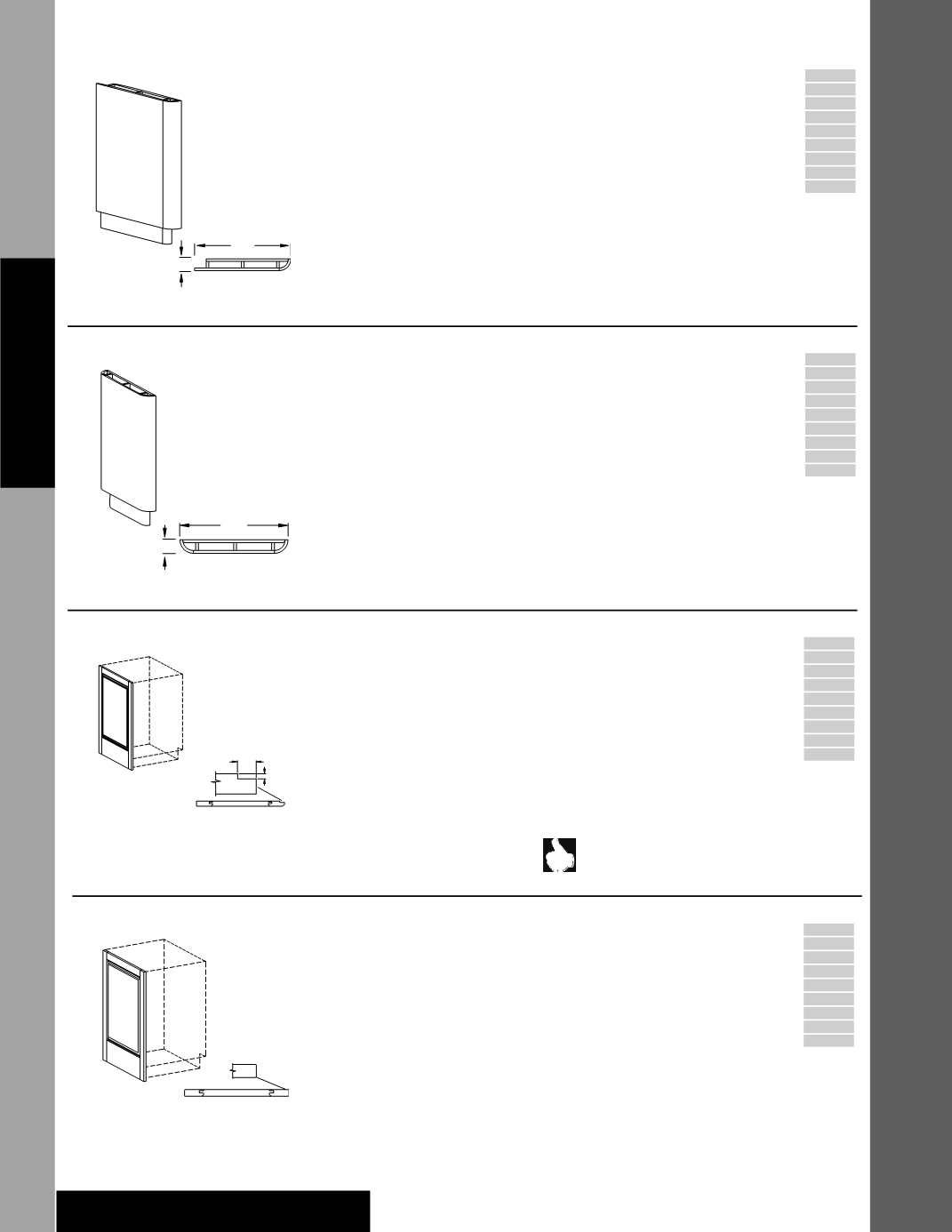

Base Cabinets
E72
Base Accessories
Base Curved End Panel
BEP3 CEP
• 5/8” wood veneer construction
• Reversible, may be used on either right or left end
• Curved matching toe kick included and shipped
separately
•
Not
available in Alder–Rustic door styles
•
Not
available in High-Gloss Laminate door styles
• Painted hardwood supplied for EverCore™
•
Not
available in Sturbridge; Beale, Hayward and
Manchester supplied plain sawn
PE
APC
APFC
FPEB
MI
RD
WR
RTKP
VTK
34
1
/
2
˝
24˝
3˝
24˝
Peninsula Base Curved End Panel
PBEP3 CEP
• 5/8” wood veneer construction
• Reversible, may be used on either right or left end
• Curved matching toe kick included and shipped
separately
•
Not
available in Alder–Rustic door styles
•
Not
available in High-Gloss Laminate door styles
• Painted hardwood supplied for EverCore™
•
Not
available in Sturbridge; Beale, Hayward and
Manchester supplied plain sawn
PE
APC
APFC
FPEB
MI
RD
WR
RTKP
VTK
34
1
/
2
˝
24˝
24˝
3˝
Matching Base End Panel
Specify R or L
MBEP R or L
Peninsula
PMBEP
• 3/4” thick panel with matching door edge profile on front
edge only
• Peninsula panel has routed door profile front and
back
• Laminate and slab door styles do
not
have grooves
and will
not
fit flush against 1/2˝ end panel.
A 3/16˝ shim is recommended.
• Inside of matching panel bottom rail will line up
with inside bottom rail of door
• Left shown
• Field installation only
•
Not
available in mitered door styles; use End Panel–Mitered
•
Not
available in Sturbridge Oak Square
I
Wide Bottom Rail—field notch for toe kick
When designing with Matching End Panels the
reveal will differ from the cabinet door height
reveal. Matching End Panels cover the entire side of
the cabinet. See drawing for exact measurements
PE
APC
APFC
FPEB
MI
RD
I
WR
RTKP
VTK
34
1
/
2
˝
23
7
/
8
˝
3
/
16
˝
Standard edge detail—fits flush against
1/2˝ end panel and behind face frame
¾˝
Matching Base End Panel–Square Edges
MBEP •S
• 3/4˝ thick panel with square edge front and back
• Inside of matching panel bottom rail will line up
with inside bottom rail of door
• Reversible, may be used on either right or left end
• Field installation only
• No frame recess dado
•
Not
available in Laminate door styles
•
Not
available in mitered door styles; use End Panel–
Mitered
•
Not
available in Sturbridge Oak Square
I
Wide Bottom Rail—field notch for toe kick
PE
APC
APFC
FPEB
MI
RD
I
WR
RTKP
VTK
34
1
/
2
˝
23
7
/
8
˝
Will not fit flush against 1/2˝ end panel,
a 3/16˝ shim is recommended
