Base Cabinets
E73
Base Accessories

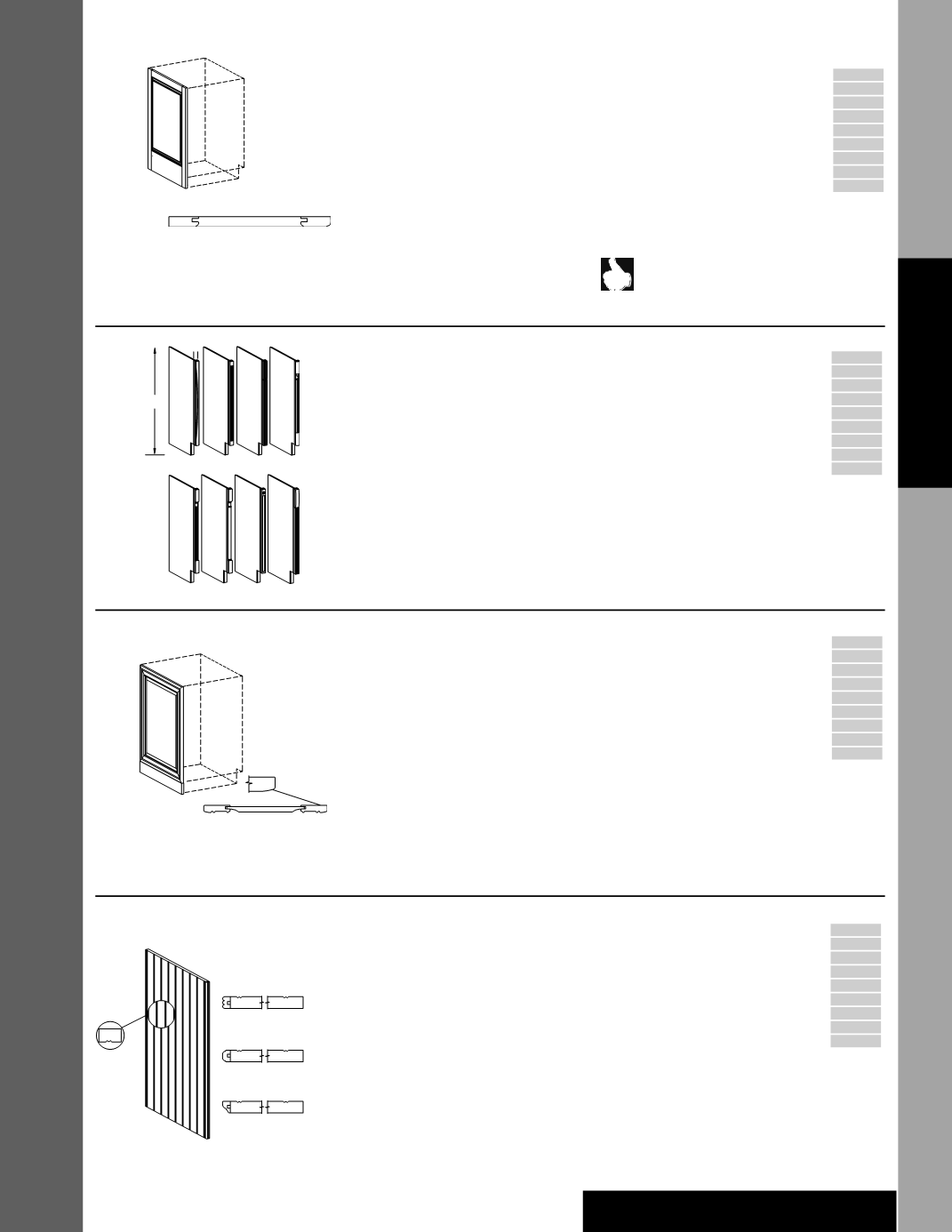

Furniture Matching Base End Panel
Specify R or L
FMBEP R or L
Peninsula
FPMBEP
• 3/4” thick panel with matching door edge profile on front
edge only
• Peninsula panel has routed door profile front
and back
• Inside of matching panel bottom rail will line
up with inside bottom rail of door
• For use with Furniture Plywood Ends
(FPEB)—flush ends
• Left shown
• Field installation only
•
Not
available in mitered door styles; use End
Panel–Mitered
•
Not
available in Sturbridge Oak Square
I
Wide Bottom Rail—field notch for toe kick
When designing with Matching End Panels the
reveal will differ from the cabinet door height
reveal. Matching End Panels cover the entire side
of the cabinet. See drawing for exact
measurements
PE
APC
APFC
FPEB
MI
RD
I
WR
RTKP
VTK
34
1
/
2
˝
23
7
/
8
˝
Decorative Accent End Panel
Specify R or L
DEP2434 R or L•S1
DEP2434 R or L•S2
DEP2434 R or L•S3
i
DEP2434 R or L•S4
i
DEP2434 R or L•S6
i
DEP2434 R or L•S7
i
DEP2434 R or L•S8
i
DEP2434 R or L•S9
i
Not
available in Alder–Rustic
door styles
• Available in Cherry, EverCore™, Laminate,
Maple and Rustic Alder full overlay door
styles only
• Painted hardwood supplied for EverCore™
and Laminate
• Applied decorative accent mounted toward
end panel
• End panel is trimmable
•
Not
available in High-Gloss Laminate door styles
PE
l
APC
l
APFC
v
FPEB
l
MI
l
RD
WR
RTKP
VTK
S1
S3 S2
S6 S7 S8 S9
S4
34
½
˝
1 ½˝
Matching Base End Panel–Mitered
M•MBEP
• 3/4˝ thick panel with matching door edge
profile on four sides
• Inside of matching panel bottom rail will line
up with inside bottom rail of door
• Available in mitered door styles only
• Reversible, may be used on either right or left
end
• Field installation only
• Toe kick shipped unattached
I
Wide Bottom Rail—field notch for toe kick
PE
APC
APFC
FPEB
MI
RD
I
WR
RTKP
VTK
34
1
/
2
˝
23
7
/
8
˝
Will not fit flush against 1/2˝ end panel,
a 3/16˝ shim is recommended
Matching Base End Panel Beaded
MBEPBE •SB•TB•OG
25 1/8” x 34 1/2” x 3/4”
Peninsula
PMBEPBE •SB•TB•OG
26 1/4” x 34 1/2” x 3/4”
• 3/4” thick solid wood
• Grooves are 3˝ on center
• Adds 3/4” to cabinet width
• Inside of matching panel bottom rail will line
up with inside bottom rail of door
• Painted hardwood supplied for EverCore™
and Laminate
•
Not
available in Sturbridge; Beale, Hayward
and Manchester supplied plain sawn
•
Not
available in High-Gloss Laminate door styles
•
Note
: Specify Single Bead (SB), Triple Bead
(TB) or Ogee Edge (OG) for front edge
treatment
PE
APC
APFC
FPEB
MI
RD
WR
RTKP
VTK
34
1
/
2
˝
25
1
/
8
˝, 26
1
/
4
˝
Beaded
Detail
Triple Bead (TB)
Single Bead (SB)
Ogee Edge (OG)
3
/
4
˝
3
/
4
˝
3
/
4
˝
