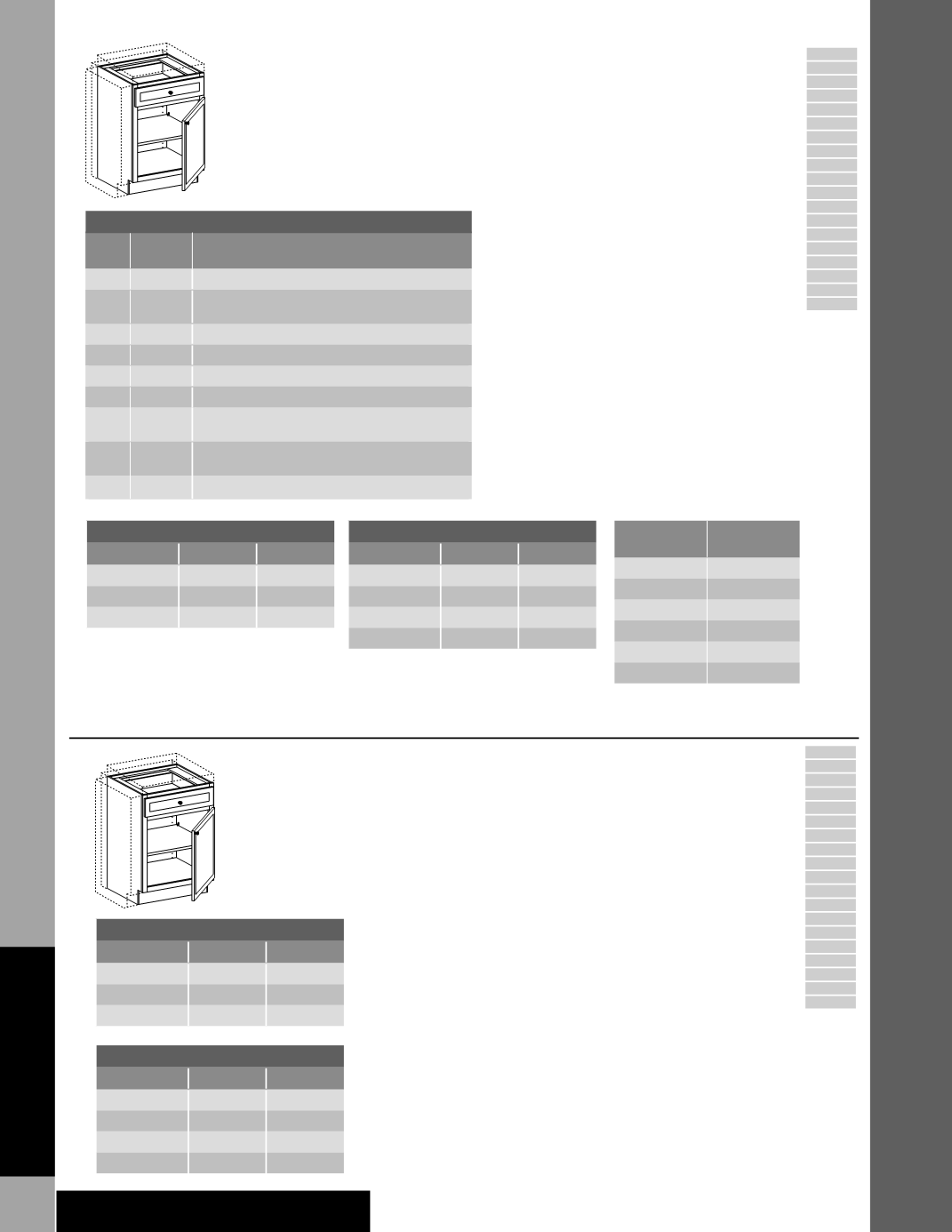

Specifications and Options
C26
Construction Options
Change Width, Reduce Depth & Change Height
Three Dimensions
CW.RD.CH
• Many cabinets can be modified to your
desired width, depth and height. We do have
suggested minimums that control function
of cabinets. Consult option availability chart
for your desired cabinet
• Any cabinet reduced in depth to less than
4 5/8” will be shipped as a Cabinet Front
Only (CFO)
• Double door cabinets
cannot
be modified to
less than 24” wide; single door cabinets
must
be used for this option
• To Change Height (CH) on wall cabinets
18 1/16” to 23 7/16” H, select a nominal
24” H cabinet (heights
cannot
be modified
on 21” H cabinets); for heights 23 9/16” to
29 15/16” H, select a nominal 30” H cabinet
(heights
cannot
be modified on 27” H
cabinets)
• 34 1/2” H Base Cabinets can be increased in height to 42”
H; height adjustments will be made to the door section
of the base cabinet, therefore height adjustments are
not
available for drawer stack cabinets
• For Tall 72 1/2”–83 15/16” H, select a nominal 84” H
cabinet; height adjustments will be made to the upper
section of the tall cabinet
PE
APC
APFC
FPEB
MI
DE
l
CW
l
RD
ID
l
CH
IF
TWR
WR
XS
XSG
GD
RTK
RTKP
VTK
Change Height
Cabinet
Wall
12˝
60˝
Base
29 ⁄
˝
42˝
Tall
Vanity Base
72½˝
29 ⁄
˝
96˝
42˝
Max. Height
Min. Height
Change Width
Cabinet
Wall and Base
9˝
48˝
Tall
9˝
36˝
Vanity Base
12˝
60˝
Max. Width
Min. Width
Sugg.
Min Cabinets
Reason
4
⅝
˝
All
Minimum for shelf hole drilling
6˝
All except
walls
Minimum for toe kick notch Less than 6” WR is mandatory
9˝
PB
Minimum for toe kick notch Less than 9” WR is mandatory
10˝
WZA
Minimum allowed
10 ⅝˝
WZA
Minimum for shelf
12˝
BZA
Minimum allowed
12˝ All except
walls
18˝
BEA
WEA
Minimum allowed
12˝
WWH
Minimum for working drawer - less than 12” depth
will have false drawer
Wine Storage section always 12” deep
Reduced Depth
Cabinet
Drawer Box
Depth
24”
20 ⁄
”
21”
17 ⁄
”
18”
14 ⁄
”
15”
11 ⁄
”
12”
8 ⁄
”
less than 12”
No drawer
Change Width, Increase Depth & Change Height
Three Dimensions
CW.ID.CH
• Many cabinets can be modified to your
desired width, depth and height. We do have
suggested minimums that control function
of cabinets. Consult option availability chart
for your desired cabinet
• Any wall cabinet over 24˝ wide or 30˝ high or
higher with a depth greater than 12˝ and/or
with butt doors
must
be installed between
two (2) cabinets, a cabinet and a wall or
supported from below
• Double door cabinets
cannot
be modified to
less than 24” wide; single door cabinets
must
be used for this option
• Maximum Increased Depth (ID) for
peninsula wall cabinets is 15˝
• To Change Height (CH) on wall cabinets
18 1/16” to 23 7/16” H, select a nominal 24”
H cabinet (heights
cannot
be modified on 21” H cabinets);
for heights 23 9/16” to 29 15/16” H, select a nominal 30” H
cabinet (heights
cannot
be modified on 27” H cabinets)
• 34 1/2” H Base Cabinets can be increased in height to 42”
H; height adjustments will be made to the door section
of the base cabinet, therefore height adjustments are
not
available for drawer stack cabinets
• For Tall 72 1/2”–83 15/16” H, select a nominal 84” H
cabinet; height adjustments will be made to the upper
section of the tall cabinet
•
Note
: Maximum cabinet width for this option is 36”
PE
APC
APFC
FPEB
MI
DE
l
CW
RD
l
ID
l
CH
IF
TWR
WR
XS
XSG
GD
RTK
RTKP
VTK
Change Height
Cabinet
Wall
12˝
60˝
Base
29 ⁄
˝
42˝
Tall
Vanity Base
72½˝
29 ⁄
˝
96˝
42˝
Max. Height
Min. Height
Change Width
Cabinet
Wall and Base
9˝
36˝
Tall
9˝
36˝
Vanity Base
12˝
36˝
Max. Width
Min. Width
