Specifications and Options
C24

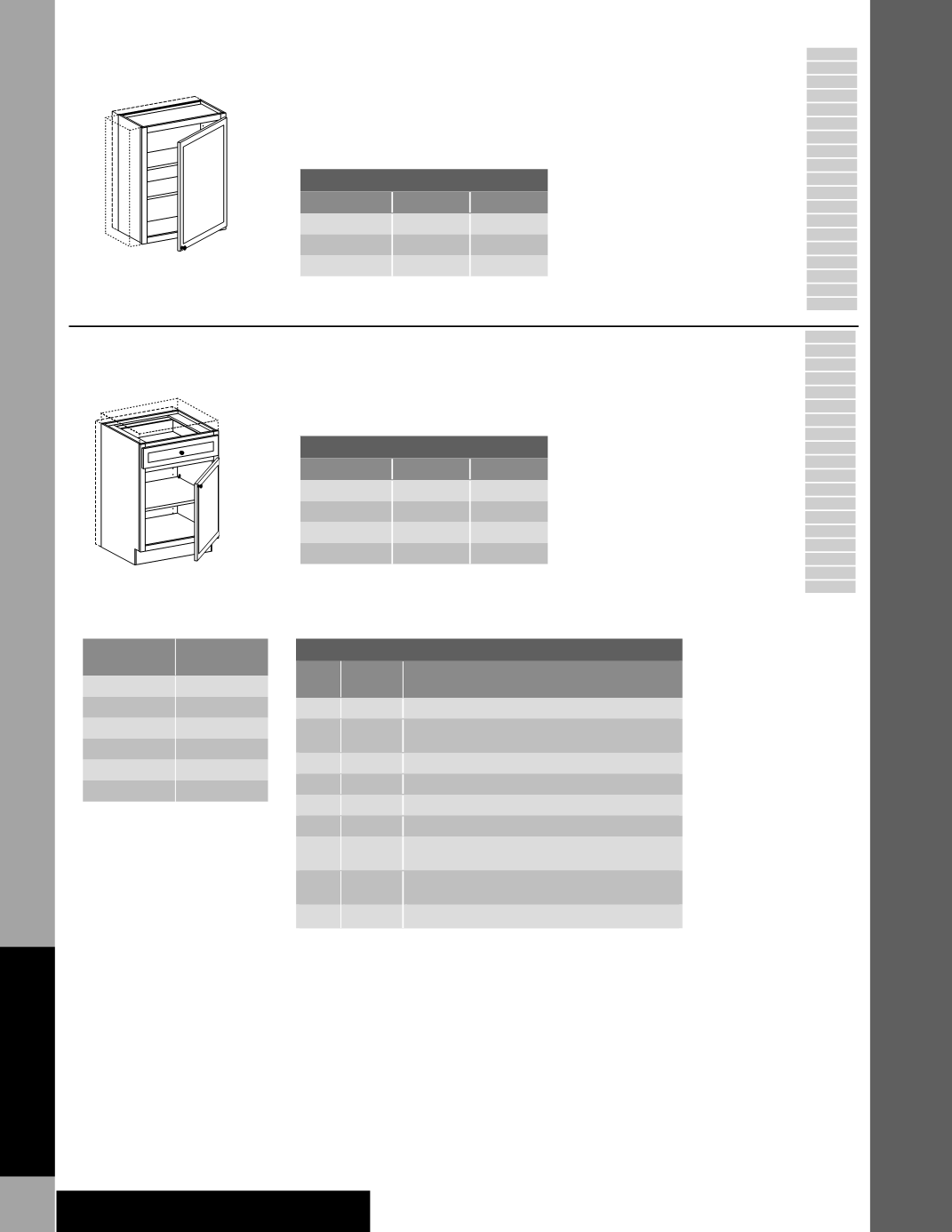

Construction Options
Change Width & Increase Depth
Two Dimensions
CW.ID
• Many cabinets can be modified to your
desired width and depth. Consult chart for
the suggested minimums that control the
functionality of cabinets
• Many wall cabinets can be increased to a 24”
depth, in 1/16” increments. Consult option
availability chart for your desired cabinet
• Double door cabinets
cannot
be modified to
less than 24” wide; single door cabinets
must
be used for this option
• Any wall cabinet over 24˝ wide or 30˝ high or
higher with a depth greater than 12˝ and/or
with butt doors
must
be installed between
two (2) cabinets, a cabinet and a wall or
supported from below
• Maximum Increased Depth (ID) for
peninsula wall cabinets is 15˝
•
Note
: Maximum cabinet width for this
option is 36”
PE
APC
APFC
FPEB
MI
DE
l
CW
RD
l
ID
CH
IF
TWR
WR
XS
XSG
GD
RTK
RTKP
VTK
Change Width
Cabinet
Wall and Base
9˝
36˝
Tall
9˝
36˝
Vanity Base
12˝
36˝
Max. Width
Min. Width
15˝
Reduce Depth & Change Height
Two Dimensions
RD.CH
• Many cabinets can be changed to your
desired depth and height. Consult chart
for suggested minimums that control the
functionality of cabinet
• Any cabinet reduced in depth to less than
4 5/8” will be shipped as a Cabinet Front
Only (CFO)
• To Change Height (CH) on wall cabinets
18 1/16” to 23 7/16” H, select a nominal
24” H cabinet (heights
cannot
be modified
on 21” H cabinets); for heights 23 9/16” to
29 15/16” H, select a nominal 30” H cabinet
(heights
cannot
be modified on 27” H
cabinets)
• 34 1/2” H Base Cabinets can be increased
in height to 42” H; height adjustments will
be made to the door section of the base
cabinet, therefore height adjustments are
not
available for drawer stack cabinets
• For Tall 72 1/2”–83 15/16” H, select a
nominal 84” H cabinet; height adjustments will be made to
the upper section of the tall cabinet
PE
APC
APFC
FPEB
MI
DE
CW
l
RD
ID
l
CH
IF
TWR
WR
XS
XSG
GD
RTK
RTKP
VTK
Change Height
Cabinet
Wall
12˝
60˝
Base
29 ⁄
˝
42˝
Tall
Vanity Base
72 ½˝
29 ⁄
˝
96˝
42˝
Max. Height
Min. Height
Sugg.
Min Cabinets
Reason
4
⅝
˝
All
Minimum for shelf hole drilling
6˝
All except
walls
Minimum for toe kick notch Less than 6” WR is mandatory
9˝
PB
Minimum for toe kick notch Less than 9” WR is mandatory
10˝
WZA
Minimum allowed
10 ⅝˝
WZA
Minimum for shelf
12˝
BZA
Minimum allowed
12˝ All except
walls
18˝
BEA
WEA
Minimum allowed
12˝
WWH
Minimum for working drawer - less than 12” depth
will have false drawer
Wine Storage section always 12” deep
Reduced Depth
Cabinet
Drawer Box
Depth
24”
20 ⁄
”
21”
17 ⁄
”
18”
14 ⁄
”
15”
11 ⁄
”
12”
8 ⁄
”
less than 12”
No drawer
