When providing DR as a Service, the Managed Service Provider needs to ensure complete separation between the organization network and the Managed Service Provider network. The Managed Service Provider needs to be able to route traffic between an organization network and the cloud replication network, in a secure manner without going through complex network and routing setups.
The Managed Service Provider can define a Zerto Cloud Connector per organization site, that has two Ethernet interfaces, one to the organization’s network and one to the Managed Service Provider's network. If the Managed Service Provider wants to add additional security, considering both cloud connector interfaces as part of the organization network, the Managed Service Provider can define a static route that will hop to a different cloud network, specifically for use by the Zerto Virtual Manager and VRAs in the cloud site.
|
•
|

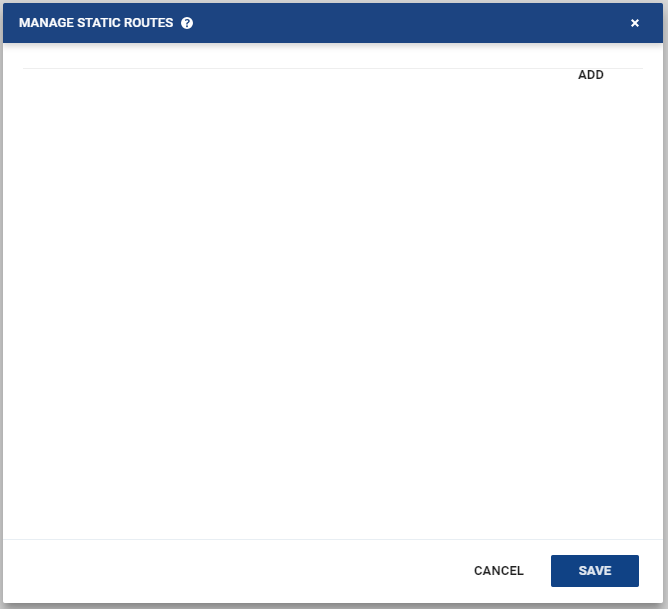

ADD: Click this field to add an entity and to define the static route it will use. Once you click ADD, the dialog changes: |
|
•
|

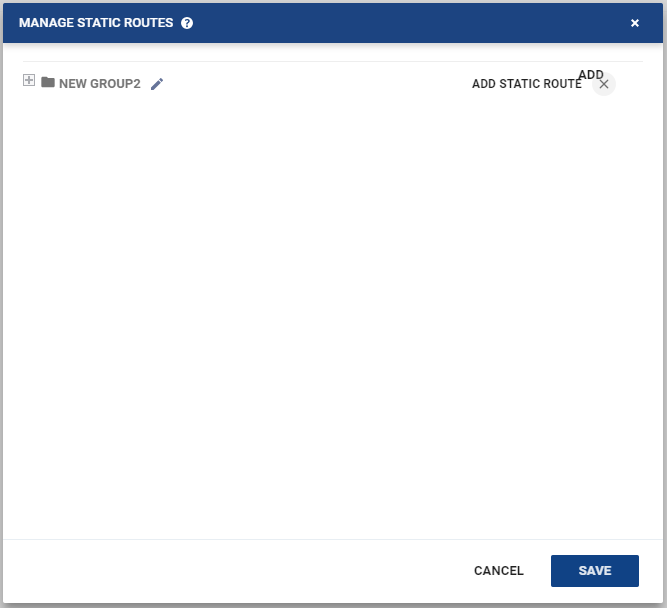

NEW GROUP: Defines a group that will use a static route to the subnet used by the Zerto Virtual Manager. Enter the name of the organization that will use this static route. |
