Clean Power VFD status

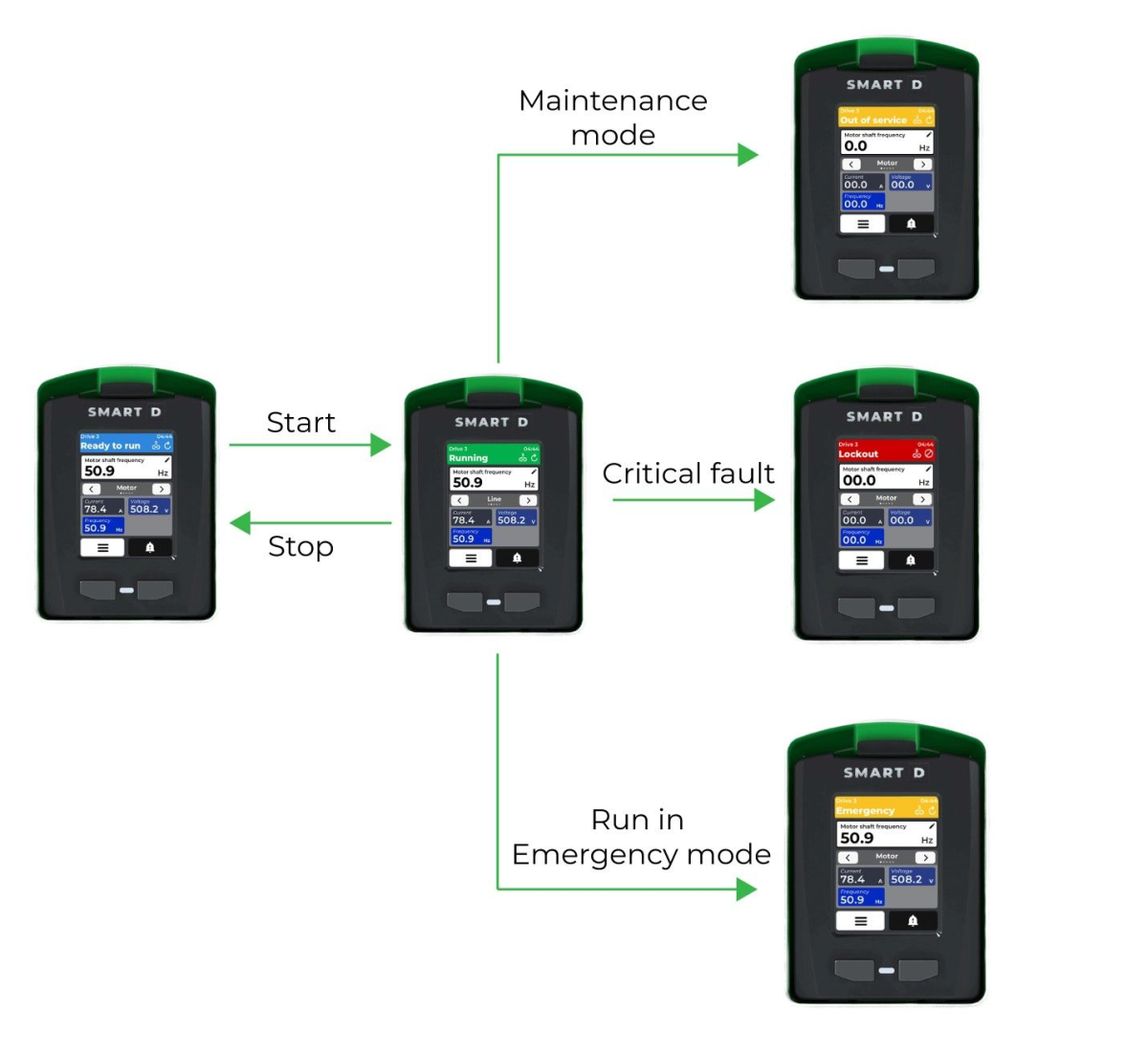

The Clean Power VFD status is displayed in the header of the HMI:
Ready to run - Running - Out of service - Lockout - Emergency mode
Ready to run⚓
The Clean Power VFD is powered up, and there are no alarms preventing the Clean Power VFD from operating and running the motor.
Running:⚓
The control command run (either forward or reverse) has been activated.
The Clean Power VFD delivers power to its output accordingly to the pre-set speed.
The motor is running.
Lockout:⚓
At least one critical alarm has been raised.
The output power of the Clean Power VFD is off and all its functions (except communication) are disabled.
To return in ready to run mode, the critical alarms must be fixed and a power cycle (off / on) must be executed to reset the system.
