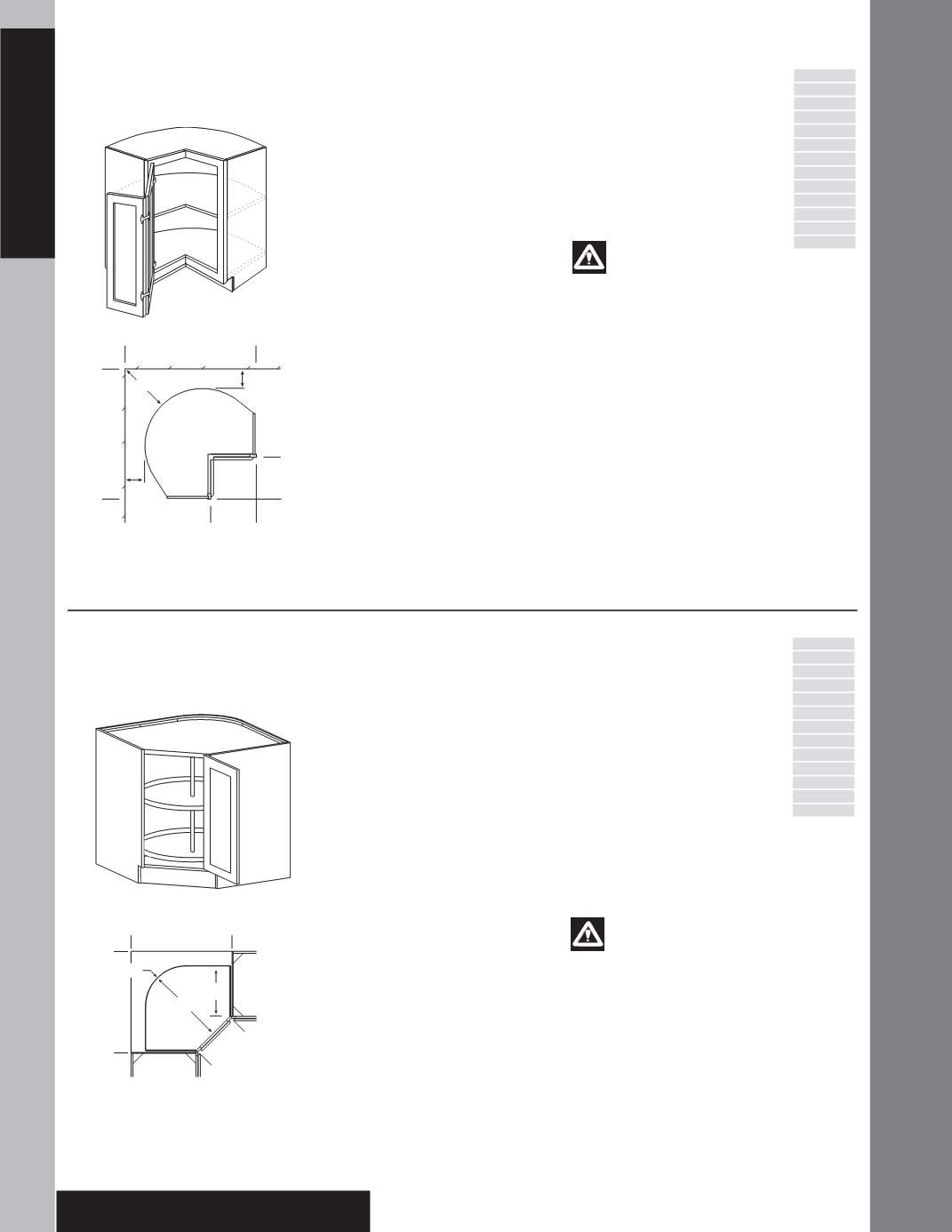

Base Corner Cabinets
Base Cabinets
Base Corner Fixed Shelf
Specify R or L
BCFS36 R or L
• One fixed, pie-cut shelf in center position
• Two piece bi-fold door with independent
adjustment
• 168° opening hinges on face frame door
• Full Overlay door style face frame stiles
are notched to accept door hinges. Door
hinging cannot be inverted in field
I
Note
: Back panel (barrel) will
not
be
plywood when APC is ordered
Caution
: If cabinet is installed
next to an appliance deeper than
25”, it may interfere with the cabinet
door opening. Options available: A) Use a filler
between cabinet and appliance, B) Pull
cabinet even with appliance front, which will
result in a deeper countertop and overall base
cabinet depth dimension
PE
I
APC
RD12
RD15
RD18
RD21
1ROT
2ROT
1FWROT
2FWROT
2DROT
2DFWROT
l
CFO
34 ½˝
24˝
24˝
36˝
24˝
12˝
14 / ˝
36˝
24˝
12˝
6˝
6˝
Lazy Susan Angle
Specify R or L
LSA36 R or L
• Two 28” diameter high impact white
plastic rotating shelves
• Shelves rotate independently of doors and
each other
• Shelf load rating of 15 lbs. per square foot,
not
to exceed 50 lbs.
• Adjacent cabinets can be installed directly
without fillers
• Requires 36” of wall space in each direction
• 29 1/4” minimum doorway clearance
required for delivery with cabinet door
removed
• Full and Partial Overlay door widths are
similar to avoid interference with adjacent
cabinet doors
I
Note
: Back panel (barrel) will
not
be plywood
when APC is ordered
Caution
: If cabinet is installed next
to an appliance deeper than 25”, it
may interfere with the cabinet door
opening. Options available: A) Use a filler
between cabinet and appliance, B) Pull
cabinet even with appliance front, which will
result in a deeper countertop and overall base
cabinet depth dimension
PE
I
APC
RD12
RD15
RD18
RD21
1ROT
2ROT
1FWROT
2FWROT
2DROT
2DFWROT
l
CFO
24˝
24˝
17˝
34 ½˝
17˝
24˝
24˝
36˝
36˝
18 / ˝
29 / ˝
14 / ˝ R
