E16
Base Appliance Cabinets
Base Cabinets
Base Appliance
Cabinets
Construction Options and
Modifications
I
Available with exceptions
l
Available with an upcharge
v
Included as standard
(Blank)
Not
available
When BUTT is in all capitals, it
must
be included as part of your
ordering nomenclature. A (Butt) in
parentheses is for your information
and isn’t required on an order form.
Material dimensions may vary slightly
based on lumber industry standards.
Specifications subject to change
without notice.
PE Plywood Ends
APC All Plywood Construction
RD21 Reduce Depth 21”
CFO Cabinet Front Only
BMC 30 24 34
code width depth height

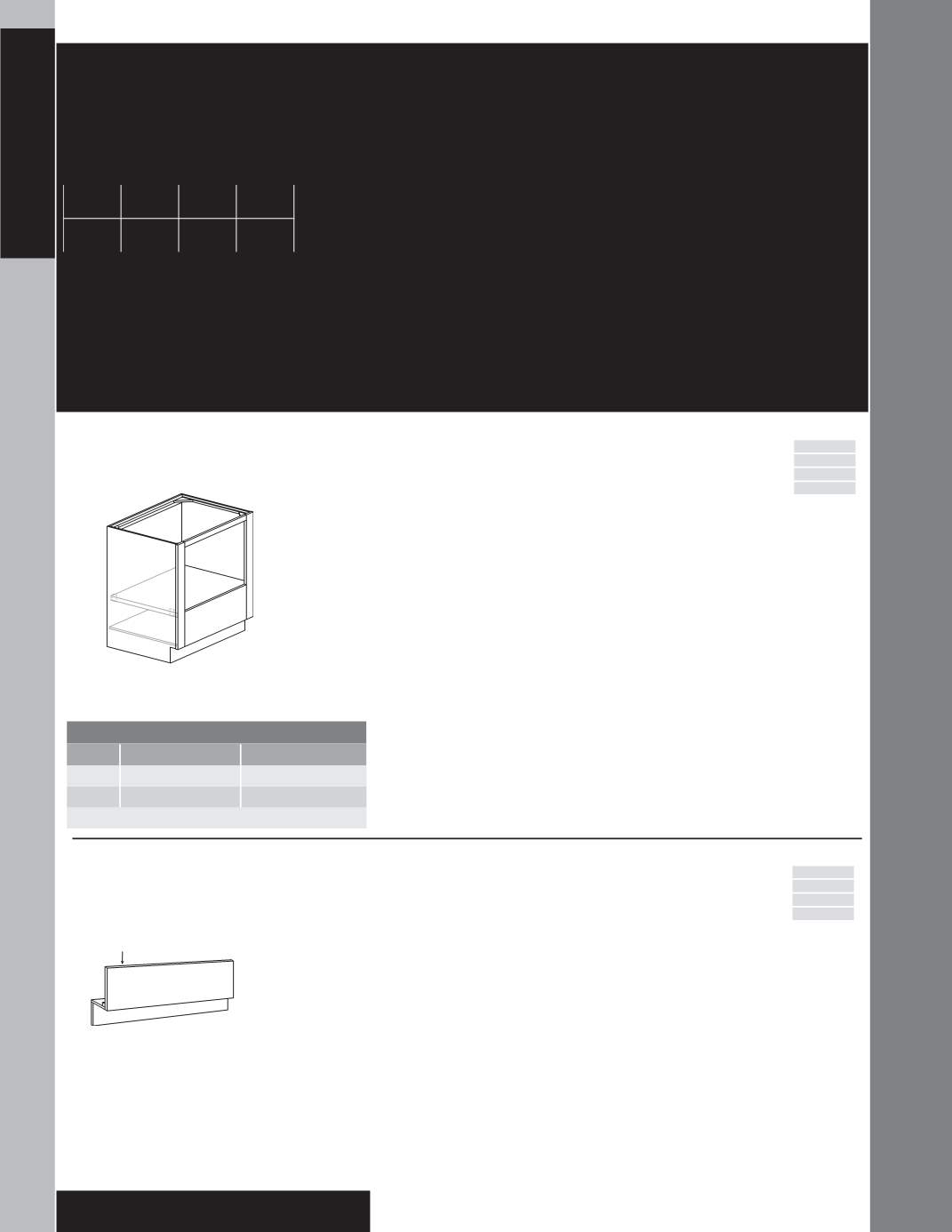

Base Oven Cabinet Universal
BOCU30
BOCU33
• Designed for under counter mounting of
single built-in ovens
• No back panel allowing full access to electrical
connections
• Includes an adjustable oven platform
supported with heavy-duty metal mounting
brackets and screws which install into pre-
drilled end panel holes at the four corners
• 1/2” end panels
• 3” wide trimmable vertical stiles provide oven
opening width adjustment
• 10” high trimmable horizontal rail along the
bottom provides opening height adjustment.
May be trimmed to 1 1/2”
l
PE
l
APC
RD21
CFO
Opening Sizes
Cabinet Minimum Opening *Maximum Opening
BOCU30
BOCU33
* Bottom rail trimmed to 1 ½˝ high and top rail removed
24˝ wide x 18 ½˝ high
27˝ wide x 18 ½˝ high 31˝ wide x 28½˝ high
28˝ wide x 28 ½˝ high
34 ½˝
24˝
Drop-In Range Panel
DIP30
• 3/4” thick solid wood panel
• Matching front panel may be trimmed to
fit drop-in range
• Must be installed between two base cabinets
• Toe Kick Backer included, shipped unattached
• Matching Toe Kick cover (MTK) is required
• Field trim as needed
PE
APC
RD21
CFO
30˝
10˝
¾˝
