D1
Wall Cabinets
Caution
! Installation of a wall cabinet 30˝ or wider requires additional support,
such as attachment to a soffit, or support from below.
Wall Cabinets
Wall Cabinets
Construction Options and
Modifications
I
Available with exceptions
l
Available with an upcharge
v
Included as standard
(Blank)
Not
available
Note
: Standard wall cabinet box depth
is 12˝ unless stated otherwise. Add door
thickness with bumpers for total depth.
Caution
: Installation of a wall cabinet
30˝ or wider requires additional support,
such as attachment to a soffit, or support
from below. Failure to provide additional
support could result in collapse of the
cabinet, serious personal injury, or
property damage. Damage relating to
failure to provide additional support is
not
covered by the limited warranty. See inside
cover for warranty details.
Any wall cabinet over 24” wide or 30” high
with a depth greater than 12” and/or butt
doors, in addition to Wine Cabinets and
Plate Racks, must be installed between
two cabinets, a cabinet and a wall, or
supported from below.
PE Plywood Ends
APC All Plywood Construction
RD9 Reduce Depth 9”
ID15 Increase Depth 15”
ID18 Increase Depth 18”
ID21 Increase Depth 21”
ID24 Increase Depth 24”
BIS Bistro Glass
MD Traditional Mullion Glass
SV Savannah Mullion Glass
MI Matching Interior
CFO Cabinet Front Only
W 30 12
code
width
height

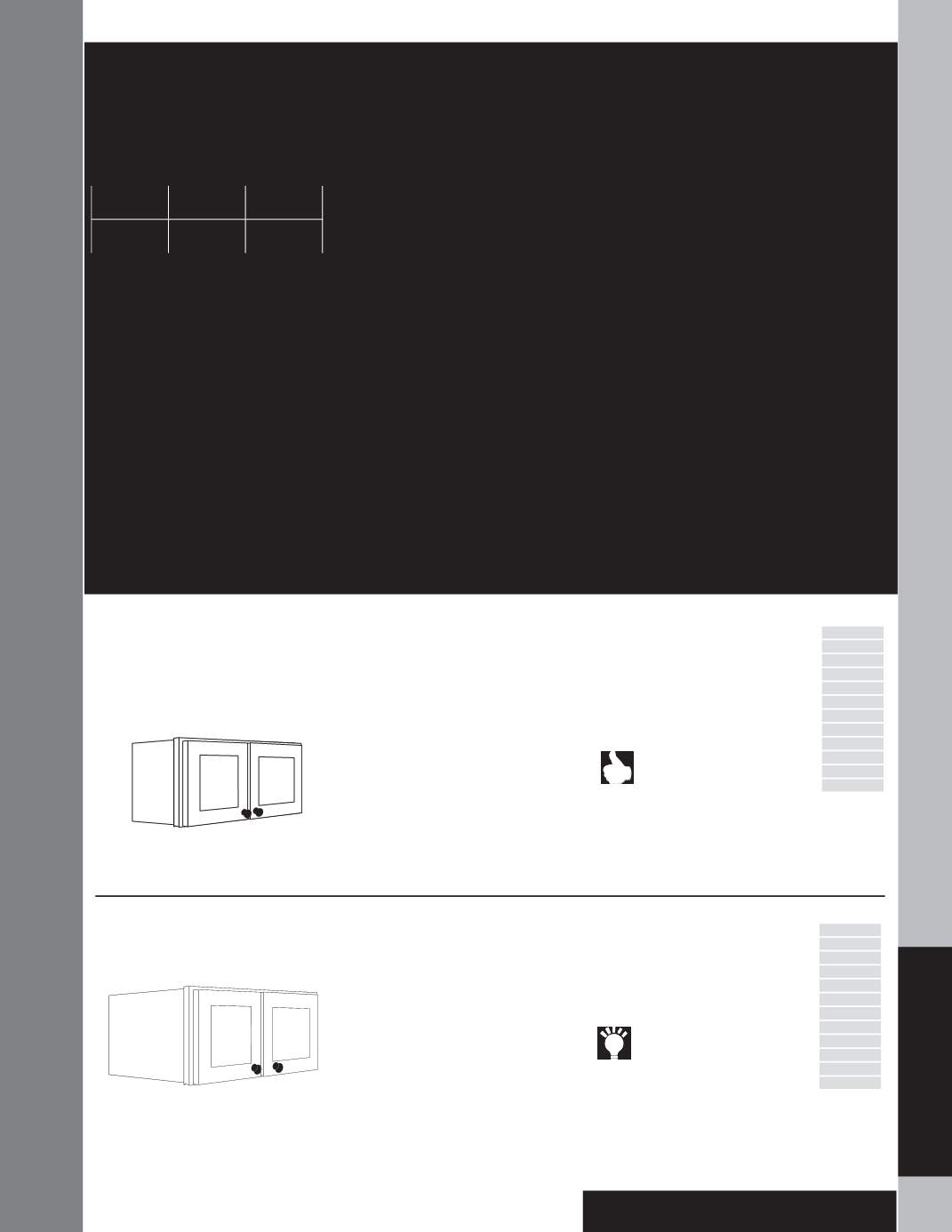

Wall Double Door 12” H
W2712 (Butt)
W3012 BUTT
W3312 BUTT
W3612 BUTT
W3912
W4212
W4512
W4812
• No shelf
• Any wall cabinet over 24˝ wide or 30˝ high
or higher with a depth greater than 12˝
and/or with butt doors must be installed
between two (2) cabinets, a cabinet and a
wall or supported from below
Remember, a cabinet designated
BUTT or (Butt) has no center
stile. When you see the word
BUTT in all capitals, it must be included as
part of your ordering nomenclature, a (Butt)
in parentheses is for your information and
isn’t required on an order form
l
PE
l
APC
l
RD9
l
ID15
l
ID18
l
ID21
l
ID24
BIS
MD
SV
MI
l
CFO
12˝
12˝
Wall Refrigerator 24” Deep 12” H
WR3012 BUTT
WR3312 BUTT
WR3612 BUTT
WR3912
WR4212
• No shelf
• Designed for use over refrigerators where
there is adequate clearance
• Additional support is required
When designing a built-in
refrigerator area, remember that
many side by side refrigerators
measure up to 36” wide. If you have the
extra space, it is recommended to use at
least a 1” filler with a 36” wide Wall
Refrigerator (WR) cabinet to assure clearance
for the appliance. Also, verify the height of the
appliance to make sure you are using the
correct Wall Refrigerator cabinet.
l
PE
l
APC
RD9
ID15
ID18
ID21
ID24
BIS
MD
SV
MI
l
CFO
24˝
12˝
Material dimensions may vary slightly
based on lumber industry standards.
Specifications subject to change
without notice.
