F9
Tall Cabinets
Note
: Remember to remove the white plastic “feet” from the bottom of all tall cabinets before
installation. Their sole purpose is to protect the floor after the cabinets are unboxed. Leaving them on
will result in uneven installation.

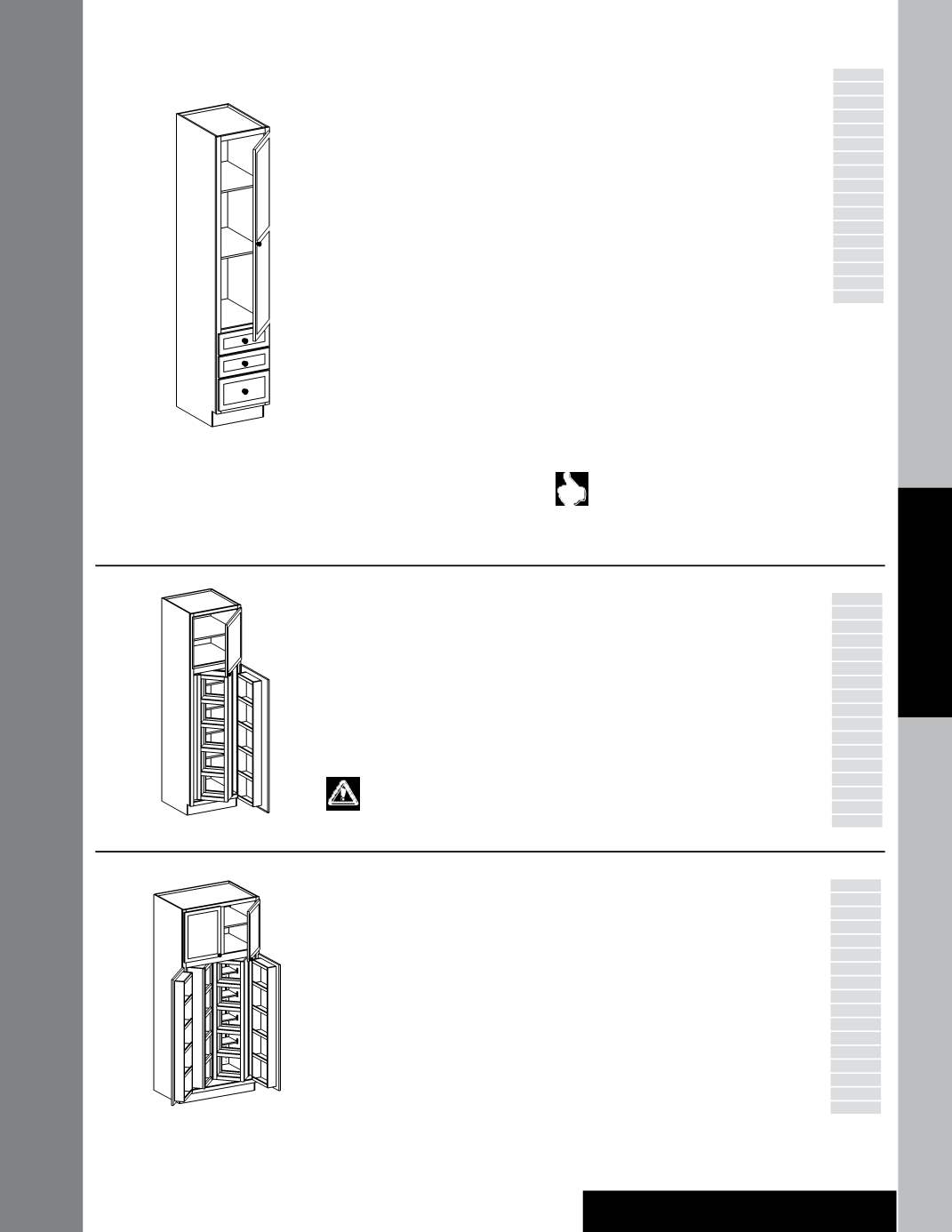

Tall Cabinets
• Includes two adjustable shelves in upper section
• Drawer Configuration:
84” high—Three drawers (two standard, one deep)
bottom edge of upper door aligns with bottom edge
of the top drawer of standard base cabinet
87” high—Three drawers (on standard, two deep).
Drawers will
not
align with other base cabinets
90” & 93” high—Four drawers (three standard, one
deep) top drawer aligns with top drawer of standard
base cabinet
96” high—Five drawers (four standard, one deep) top
drawer sets above countertop
• If DRPD option is selected, the standard drawer fronts
will be five-piece recessed panel for Bridgewater and
Bridgewater Cathedral
• No center rail on tall door for Argonne, Astoria,
Avery, Barnet, Camby, Chadwick, Cornell, Courtney,
Evana, Evana Cathedral, Ferguson, Garrison, Halden,
Harrington, Jamison, Judson, Kendrick, Layden,
Lockeford, Maxton, Northwicke, Parker House, Rutherford,
Shepparton, Sheridan, Sydney, Tennyson and Vanderbilt door styles
• Top drawer of 90”, 93” and 96” high unit will have recessed center
panel in Bradford door style
• Factory installed Roll-out Trays (ROT) are
not
available
• Toe kick is shipped separately on 93˝ & 96˝ high cabinets
I
Wide Bottom Rail (WR) and Recessed Toe Kick (RTK)
not
available
on 93” & 96” high cabinets
I
Void Toe Kick (VTK) is
not
available on 93” and 96” high cabinets
I
Maximum Increased Depth (ID) is 27”
Remember to order a 3/16” skin (WSK) for the exposed
ends of 93” & 96” high cabinets to conceal the seam
between the loose toe kick and the cabinet.
l
PE
l
APC
l
APFC
l
FPEB
l
MI
l
DE
OE
I
CW
l
RD
I
ID
CH
IF
I
WR
l
XS
GD
I
RTK
I
VTK
24˝
84˝
87˝
90˝
93˝
96˝
• Four 10 7/16” deep adjustable shelves in lower section
• One 4” deep door storage rack with five fixed shelves
• One 6 1/2” deep double-sided swing-out storage rack
with five fixed shelves
• Includes adjustable shelves in upper section: 84” &
87” high—one shelf; 90” & 93” high—two shelves; 96”
high—three shelves
• No center rail on tall door for Argonne, Astoria,
Avery, Barnet, Camby, Chadwick, Cornell, Courtney,
Evana, Evana Cathedral, Ferguson, Garrison, Halden,
Harrington, Jamison, Judson, Kendrick, Layden,
Lockeford, Maxton, Northwicke, Parker House,
Rutherford, Shepparton, Sheridan, Sydney, Tennyson
and Vanderbilt door styles
• Toe kick is shipped separately on 93˝ & 96˝ high
cabinets
I
Wide Bottom Rail (WR) and Recessed Toe Kick (RTK)
not
available on 93” & 96” high cabinets
I
Glass doors available for top doors only
I
Void Toe Kick (VTK) is
not
available on 93” and 96”
high cabinets
l
PE
l
APC
l
APFC
l
FPEB
l
MI
DE
OE
CW
RD
ID
l
CH
IF
I
WR
l
XS
I
GD
I
RTK
I
VTK
24˝
84˝
87˝
90˝
93˝
96˝
23 ½˝
27˝
30˝
33˝
36˝
• Eight 7 1/8” deep adjustable shelves in lower section;
four on each side of center partition
• Two 4” deep storage racks with five fixed shelves
• Two 6 1/2” deep double-sided swing-out storage racks
with five fixed shelves
• Includes adjustable shelves in upper section: 84” &
87” high—one shelf; 90” & 93” high—two shelves; 96”
high—three shelves
• No center rail on tall door for Argonne, Astoria,
Avery, Barnet, Camby, Chadwick, Cornell, Courtney,
Evana, Evana Cathedral, Ferguson, Garrison, Halden,
Harrington, Jamison, Judson, Kendrick, Layden,
Lockeford, Maxton, Northwicke, Parker House,
Rutherford, Shepparton, Sheridan, Sydney, Tennyson
and Vanderbilt door styles
• Toe kick is shipped separately on 93˝ & 96˝ high
cabinets
I
Wide Bottom Rail (WR) and Recessed Toe Kick (RTK)
not
available on 93” & 96” high cabinets
I
Glass doors available for top doors only
I
Void Toe Kick (VTK) is
not
available on 93” and 96”
high cabinets
•
Note
: Swing-out shelves operate within a 90° door opening
l
PE
l
APC
l
APFC
l
FPEB
l
MI
DE
OE
CW
RD
ID
l
CH
IF
I
WR
l
XS
I
GD
I
RTK
I
VTK
24˝
84˝
87˝
90˝
93˝
96˝
23 ½˝
27˝
30˝
33˝
36˝
Pantry Storage
Specify R or L
84” High
PS182484 R or L
PS242484 R or L
m
PS242484 BUTT
87” High
PS182487 R or L
PS242487 R or L
m
PS242487 BUTT
90” High
PS182490 R or L
PS242490 R or L
m
PS242490 BUTT
93” High
PS182493 R or L
PS242493 R or L
m
PS242493 BUTT
96” High
s
PS182496 R or L
s
PS242496 R or L
ms
PS242496 BUTT
m
Change Width (CW) option
not
available
s
Not
available in Halden door styles
Multi Storage Pantry 24” Wide
Specify R or L
MSP242484 R or L
MSP242487 R or L
MSP242490 R or L
MSP242493 R or L
MSP242496 R or L
Multi Storage Pantry 36” Wide
MSP362484
MSP362487
MSP362490
MSP362493
MSP362496
•
Note
: Swing-out shelves operate within a
90° door opening
Caution
! Cabinetry or other
obstacles
cannot
protrude past
the face frame on the non-hinged
side of the cabinet.
Not
following
this rule may result in improper function of
the swing out unit
