F16
Tall Appliance Cabinets
Note
: Remember to remove the white plastic “feet” from the bottom of all tall cabinets before
installation. Their sole purpose is to protect the floor after the cabinets are unboxed. Leaving them on
will result in uneven installation.
Tall Cabinets

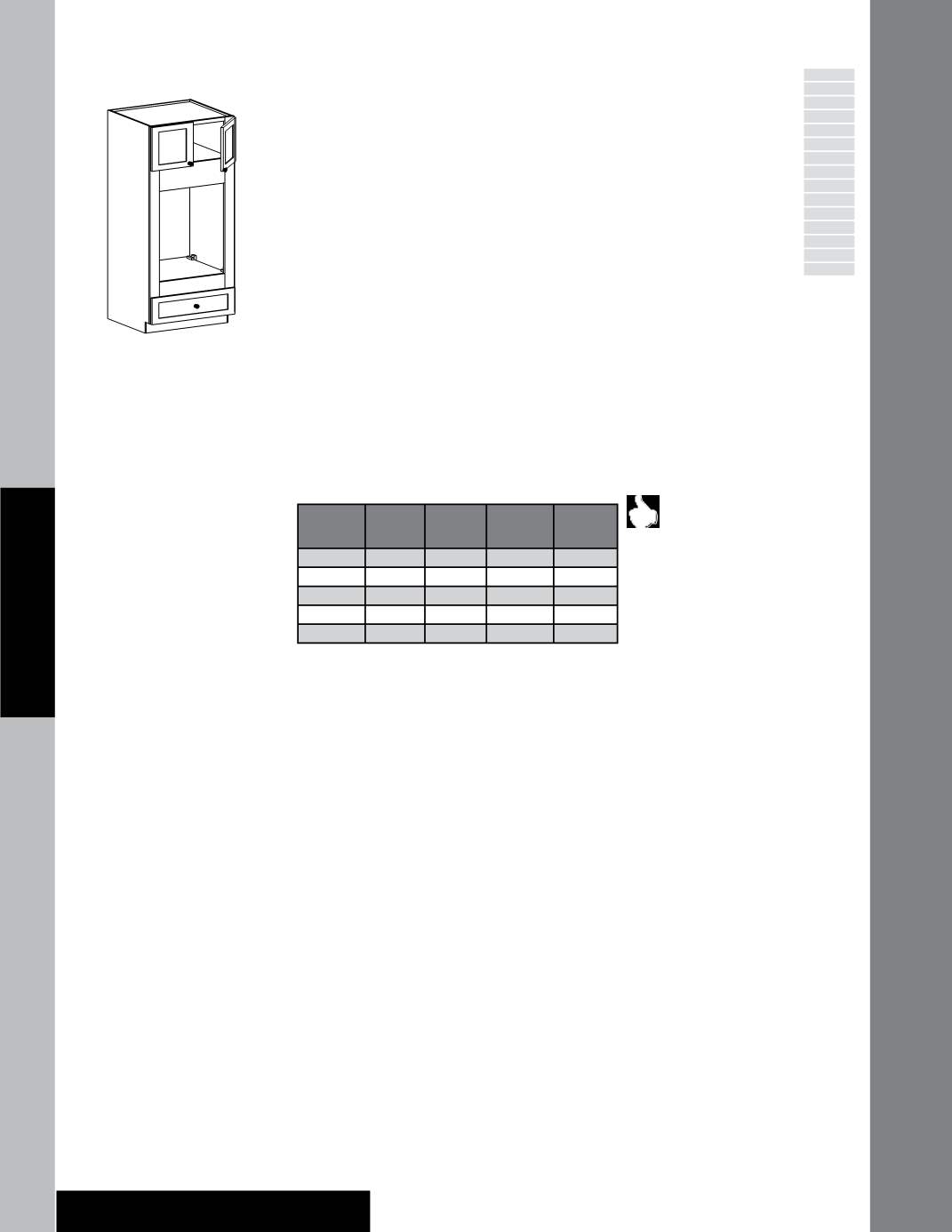

Oven Cabinet–Double w/3” Stiles–Deep Drawer
84” High
im
OC242484 (Butt)D•DD
OC272484 (Butt)D•DD
OC302484 (Butt)D•DD
OC312484 (Butt)D•DD
OC332484 BUTTD•DD
87” High
im
OC242487 (Butt)D•DD
OC272487 (Butt)D•DD
OC302487 (Butt)D•DD
OC312487 (Butt)D•DD
OC332487 BUTTD•DD
90” High
im
OC242490 (Butt)D•DD
OC272490 (Butt)D•DD
OC302490 (Butt)D•DD
OC312490 (Butt)D•DD
OC332490 BUTTD•DD
93” High
im
OC242493 (Butt)D•DD
OC272493 (Butt)D•DD
OC302493 (Butt)D•DD
OC312493 (Butt)D•DD
OC332493 BUTTD•DD
96” High
im
OC242496 (Butt)D•DD
OC272496 (Butt)D•DD
OC302496 (Butt)D•DD
OC312496 (Butt)D•DD
OC332496 BUTTD•DD
• Includes adjustable shelves in
upper section: 84” high—no
shelves; 87”, 90” & 93” high—one
shelf; 96” high—two shelves
• Oven Trim Kit (overlay panel)
available for a full overlay look;
see Tall Accessories section of this
book
• Double Oven Opening Kit (DOK)
shelf available for two appliance
installation; see Tall Accessories
section of this book
I
Change Height (CH)
modifications will be made in
the upper door section, appliance cutout
dimensions are
not
affected
I
Wide Bottom Rail (WR) and Recessed Toe Kick
(RTK)
not
available on 93” & 96” high cabinets
I
Void Toe Kick (VTK) is
not
available on 93”
and 96” high cabinets
I
Glass doors available for top doors only
•
Not
available with knife hinge door option
• Roll-out Trays (ROT) are
not
available for 31
1/2” wide cabinets
I
Maximum Increased Depth (ID) is 27”
•
Note
: When ordering glass doors in full overlay
door styles, a portion of the 3” face frame will
be visible
Remember to order a 3/16” skin
(WSK) for the exposed ends of 93” &
96” high cabinets to conceal the
seam between the loose toe kick and the
cabinet.
l
PE
l
APC
l
APFC
l
FPEB
l
MI
I
CW
l
RD
I
ID
I
CH
IF
I
WR
l
XS
I
GD
I
RTK
I
VTK
7˝
24˝
84˝
87˝
90˝
93˝
96˝
18˝
21˝
23 ½˝
27˝
30˝
Cabinet
Width
Min.
Width
Max.
Width
Min.
Height
Max.
Height
24"
21"
22"
36 1/2”
47"
27"
21"
25"
36 1/2”
47”
30"
24"
28"
36 1/2”
47”
31 1/2"
25 1/2" 29 1/2"
36 1/2”
47”
33"
27"
31"
36 1/2”
47”
Cut out dimensions
i
1 1/2˝ stiles
m
Change Width (CW) option
not
available
Grey color coding indicates new product, size or code.
