F15
Tall Appliance Cabinets
Note
: Remember to remove the white plastic “feet” from the bottom of all tall cabinets before
installation. Their sole purpose is to protect the floor after the cabinets are unboxed. Leaving them on
will result in uneven installation.
Tall Cabinets

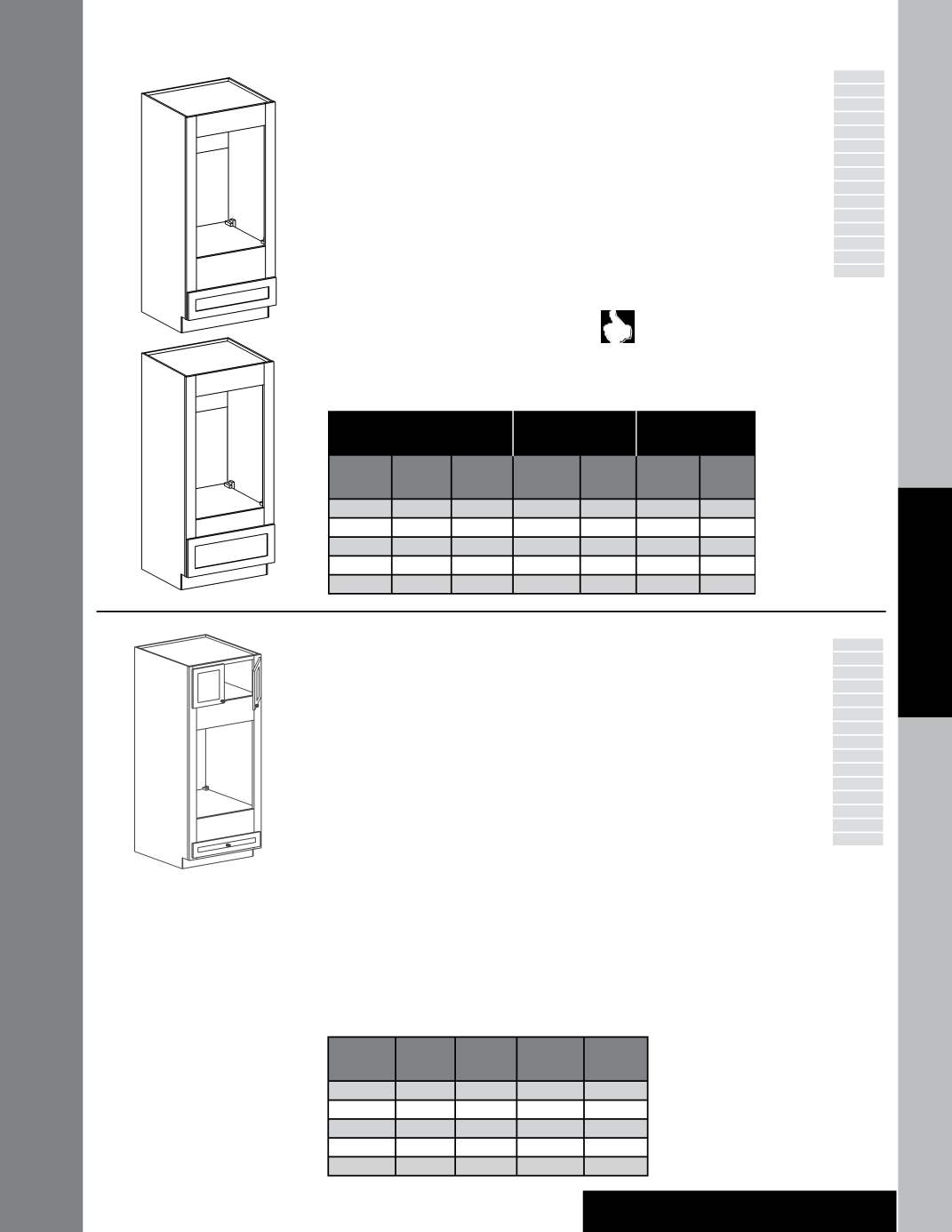

Oven Cabinet–Single Oven/Microwave Combination w/3” Stiles–Bottom Drawer
4” High Drawer
im
OC242460 (Butt)
OC272460 (Butt)
OC302460 (Butt)
OC312460 (Butt)
OC332460
7” High Deep Drawer
im
OC242460 (Butt)•DD
OC272460 (Butt)•DD
OC302460 (Butt)•DD
OC312460 (Butt)•DD
OC332460 •DD
• No shelf
• Oven Trim Kit (overlay panel) available for a
full overlay look; see Tall Accessories section
of this book
• Double Oven Opening Kit (DOK) shelf
available for two appliance installation; see
Tall Accessories section of this book
I
Change Height (CH) modifications will be
made in the upper door section, appliance
cutout dimensions are
not
affected
•
Not
available with knife hinge door option
• Roll-out Trays (ROT) are
not
available for 31
1/2” wide cabinets
I
Maximum Increased Depth (ID) is 27”
Remember to order a 3/16” skin (WSK) for
the exposed ends of 93” & 96” high cabinets
to conceal the seam between the loose toe
kick and the cabinet.
l
PE
l
APC
l
APFC
l
FPEB
l
MI
I
CW
l
RD
I
ID
I
CH
IF
l
WR
l
XS
GD
l
RTK
l
VTK
Cut out dimensions
4” Bottom
Drawer
7” Bottom
Drawer
Cabinet
Width
Min.
Width
Max.
Width
Min.
Height
Max.
Height
Min.
Height
Max.
Height
24"
21"
22"
33 1/2"
44"
34 1/2"
41"
27"
21"
25"
33 1/2"
44"
34 1/2”
41"
30"
24"
28"
33 1/2”
44"
34 1/2”
41"
31 1/2” 25 1/2" 29 1/2"
33 1/2”
44"
34 1/2”
41"
33"
27"
31"
33 1/2”
44"
34 1/2”
41"
24˝
4˝
7˝
24˝
60 ½˝
60 ½˝
OC_60
OC_60 •DD
i
1 1/2˝ stiles
m
Change Width (CW) option
not
available
Grey color coding indicates new product, size or code.
Oven Cabinet–Double w/3” Stiles
84” High
im
OC242484 (Butt)D
OC272484 (Butt)D
OC302484 (Butt)D
OC312484 (Butt)D
OC332484 BUTTD
87” High
im
OC242487 (Butt)D
OC272487 (Butt)D
OC302487 (Butt)D
OC312487 (Butt)D
OC332487 BUTTD
90” High
im
OC242490 (Butt)D
OC272490 (Butt)D
OC302490 (Butt)D
OC312490 (Butt)D
OC332490 BUTTD
93” High
im
OC242493 (Butt)D
OC272493 (Butt)D
OC302493 (Butt)D
OC312493 (Butt)D
OC332493 BUTTD
96” High
im
OC242496 (Butt)D
OC272496 (Butt)D
OC302496 (Butt)D
OC312496 (Butt)D
OC332496 BUTTD
• Includes adjustable shelves in upper section:
84” & 87” high—no shelves; 90” & 93” high—
one shelf; 96” high—two shelves
• Oven Trim Kit (overlay panel) available for a
full overlay look; see Tall Accessories section
of this book
• Double Oven Opening Kit (DOK) shelf
available for two appliance installation; see
Tall Accessories section of this book
I
Change Height (CH) modifications will be
made in the upper door section, appliance
cutout dimensions are
not
affected
I
Wide Bottom Rail (WR) and Recessed Toe
Kick (RTK)
not
available on 93” & 96” high
cabinets
• Toe kick is shipped separately on 93˝ & 96˝ high
cabinets
I
Void Toe Kick (VTK) is
not
available on 93” and 96”
high cabinets
•
Not
available with knife hinge door option
• Roll-out Trays (ROT) are
not
available for 31 1/2” wide
cabinets
I
Maximum Increased Depth (ID) is 27”
•
Note
: When ordering glass doors in full overlay door
styles, a portion of the 3” face frame will be visible
l
PE
l
APC
l
APFC
l
FPEB
l
MI
I
CW
l
RD
I
ID
I
CH
IF
I
WR
l
XS
l
GD
I
RTK
I
VTK
4˝
24˝
84˝
87˝
90˝
93˝
96˝
18˝
21˝
23 ½˝
27˝
30˝
Cabinet
Width
Min.
Width
Max.
Width
Min.
Height
Max.
Height
24"
21"
22"
36 1/2”
50"
27"
21"
25"
36 1/2”
50"
30"
24"
28"
36 1/2”
50”
31 1/2"
25 1/2" 29 1/2"
36 1/2”
50"
33"
27"
31"
36 1/2”
50"
Cut out dimensions
i
1 1/2˝ stiles
m
Change Width (CW) option
not
available
Grey color coding indicates new product, size or code.
