Tall Cabinets
Note
: Remember to remove the white plastic “feet” from the bottom of all tall cabinets before
installation. Their sole purpose is to protect the floor after the cabinets are unboxed. Leaving them on
will result in uneven installation.
Tall Cabinets

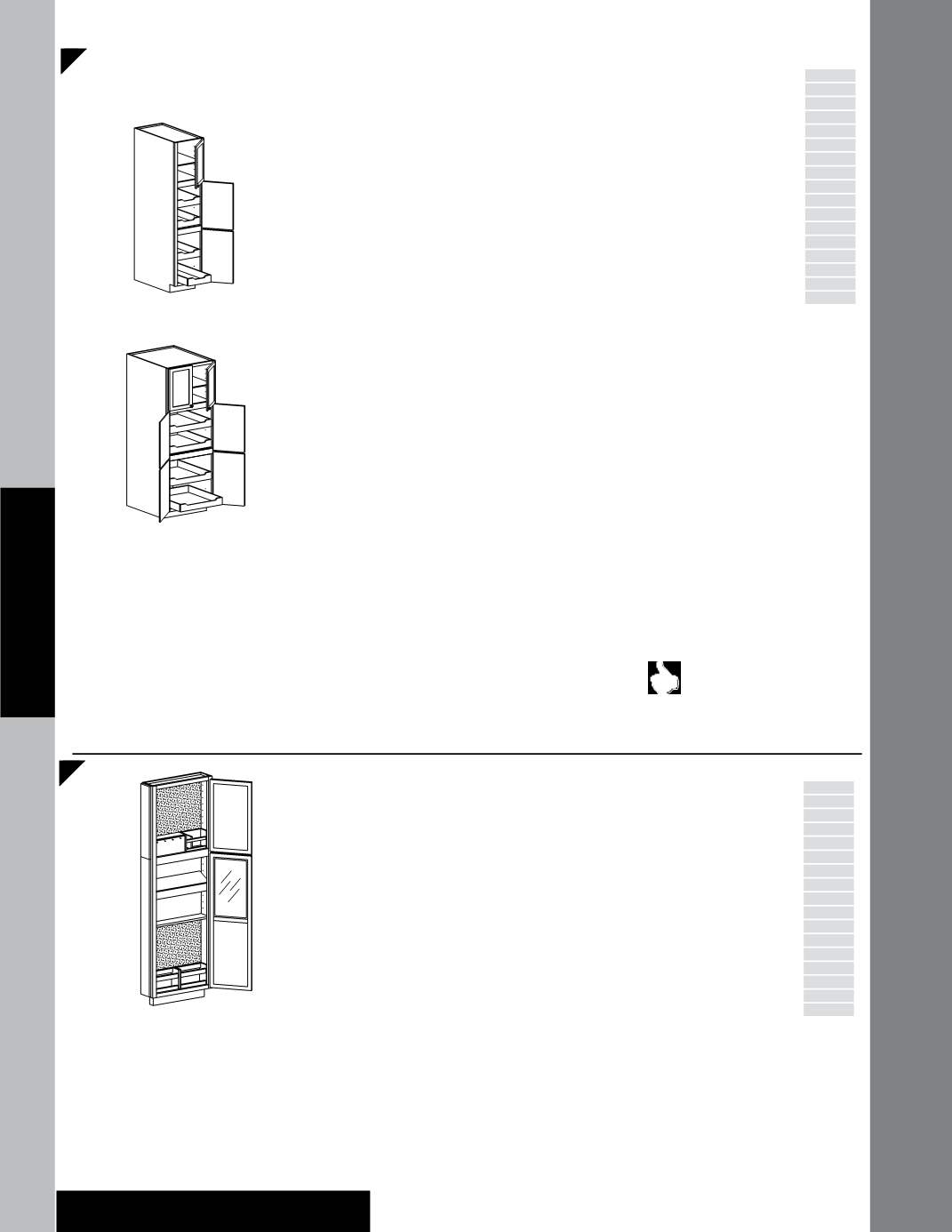

Utility Stack 84”-96” High Deluxe Dovetailed Roll-out Tray
Specify R or L
84” High
UST152484 R or L•4DXROT
UST182484 R or L•4DXROT
UST212484 R or L•4DXROT
UST242484 R or L•4DXROT
m
UST242484 BUTT•4DXROT
s
UST272484 (Butt)•4DXROT
s
UST302484 BUTT•4DXROT
s
UST332484 BUTT•4DXROT
s
UST362484 BUTT•4DXROT
87” High
UST152487 R or L•4DXROT
UST182487 R or L•4DXROT
UST212487 R or L•4DXROT
UST242487 R or L•4DXROT
m
UST242487 BUTT•4DXROT
s
UST272487 (Butt)•4DXROT
s
UST302487 BUTT•4DXROT
s
UST332487 BUTT•4DXROT
s
UST362487 BUTT•4DXROT
90” High
UST152490 R or L•4DXROT
UST182490 R or L•4DXROT
UST212490 R or L•4DXROT
UST242490 R or L•4DXROT
m
UST242490 BUTT•4DXROT
s
UST272490 (Butt)•4DXROT
s
UST302490 BUTT•4DXROT
s
UST332490 BUTT•4DXROT
s
UST362490 BUTT•4DXROT
93” High
UST152493 R or L•4DXROT
UST182493 R or L•4DXROT
UST212493 R or L•4DXROT
UST242493 R or L•4DXROT
m
UST242493 BUTT•4DXROT
s
UST272493 (Butt)•4DXROT
s
UST302493 BUTT•4DXROT
s
UST332493 BUTT•4DXROT
s
UST362493 BUTT•4DXROT
96” High
UST152496 R or L•4DXROT
UST182496 R or L•4DXROT
UST212496 R or L•4DXROT
UST242496 R or L•4DXROT
m
UST242496 BUTT•4DXROT
s
UST272496 (Butt)•4DXROT
s
UST302496 BUTT•4DXROT
s
UST332496 BUTT•4DXROT
s
UST362496 BUTT•4DXROT
• Includes adjustable shelves
in upper section: 84” &
87” high—one shelf; 90” &
93” high—two shelves; 96”
high—three shelves
• Deluxe Dovetailed Roll-
out Trays (DXROT) are
4” deep, 3/4˝ solid wood
dovetailed sides with 3/16”
plywood bottom, notched
front and full extension
runners with integrated
buffer
• Two Deluxe Roll-out Trays
(DXROT) in bottom section
and two Deluxe Roll-out
Trays (DXROT) in the center
section
• Roll-out Trays (ROT) shipped separately
on 27˝–36˝ wide units
• Factory installed Roll-out Trays (ROT)
will be installed in the bottom section up
to the maximum number allowed, any
remaining trays will be installed in the
center section
• Factory installed Roll-out Trays (ROT) are
not
available on Utility Cabinets wider
than 24”
• Toe kick is shipped separately on 93˝ &
96˝ high cabinets
I
Change Height (CH) modifications will be
made in the upper section
I
Glass doors available for top section only
I
Wide Bottom Rail (WR) and Recessed Toe
Kick (RTK)
not
available on 93” & 96” high
cabinets
I
Void Toe Kick (VTK) is
not
available on 93”
and 96” high cabinets
•
Note
: Shelf Kit (SK) for center and bottom
sections
must
be ordered separately; see
Shelving section of this book
Remember to order a 3/16” skin
(WSK) for the exposed ends of
93” & 96” high cabinets to
conceal the seam between the loose toe
kick and the cabinet.
l
PE
l
APC
l
APFC
l
FPEB
l
MI
l
DE
OE
I
CW
I
RD
I
ID
I
CH
IF
I
WR
l
XS
I
GD
I
RTK
I
VTK
24˝
24˝
23 ½˝
27˝
30˝
33˝
36˝
23 ½˝
27˝
30˝
33˝
36˝
84˝
87˝
90˝
93˝
96˝
84˝
87˝
90˝
93˝
96˝
U15-24
U24-36BUTT
New
m
Change Width (CW) option
not
available
s
Reduced Depth (RD) is
not
available
Grey color coding indicates new product, size or code.
Utility Message Center
MCU2484 R or L
MCU2487 R or L
MCU2490 R or L
MCU2493 R or L
MCU2496 R or L
• Top section features: Key hooks,
cork board and organizer
unit
• Bottom section features:
Dry erase board, cork board,
2 magazine racks, 1 shelf,
charging station (two - three-
prong and two USB outlets)
• Requires separate power
source in bottom section
• For use at the end of a
cabinet run
• Back of cabinet is unfinished
• Two-piece Tall Filler Overlay
(TFOL) supplied; shipped
separately
I
Void Toe Kick (VTK) is
not
available on 93” and 96” high
cabinets
PE
APC
v
APFC
FPEB
MI
DE
OE
CW
RD
ID
CH
IF
I
WR
XS
GD
v
RTK
I
VTK
84˝
87˝
90˝
93˝
96˝
6˝
24˝
New
Grey color coding indicates new product, size or code.
