F1
Tall Cabinets
Note
: Remember to remove the white plastic “feet” from the bottom of all tall cabinets before
installation. Their sole purpose is to protect the floor after the cabinets are unboxed. Leaving them on
will result in uneven installation.
Tall Cabinets
Tall Cabinets
Construction Options and
Modifications
v
Included as standard
l
Available with an upcharge
I
Available with exceptions
(Blank)
Not
available
PE
Plywood Ends
APC All Plywood Construction
APFC All Plywood Furniture Construction
FPEB Furniture Plywood Ends
MI
Matching Interior
DE Integrated Decorative End
OE Operational End
CW Change Width
RD Reduced Depth
ID Increased Depth
CH Change Height
IF
Inverted Frame
WR Wide Bottom Rail
XS
Extended Stile
GD Glass Doors
RTK Recessed Toe Kick
VTK Void Toe Kick
Note
: Standard tall cabinet box depth is 12” or 24” unless stated otherwise. Add
door thickness with bumpers for total depth.
When BUTT is in all capitals, it
must
be included as part of your ordering
nomenclature. A (Butt) in parentheses is for your information and isn’t required on
an order form.
Material dimensions listed may vary slightly from actual dimensions of the product.
Specifications subject to change without notice.
PS 18 24 84
code
width depth height

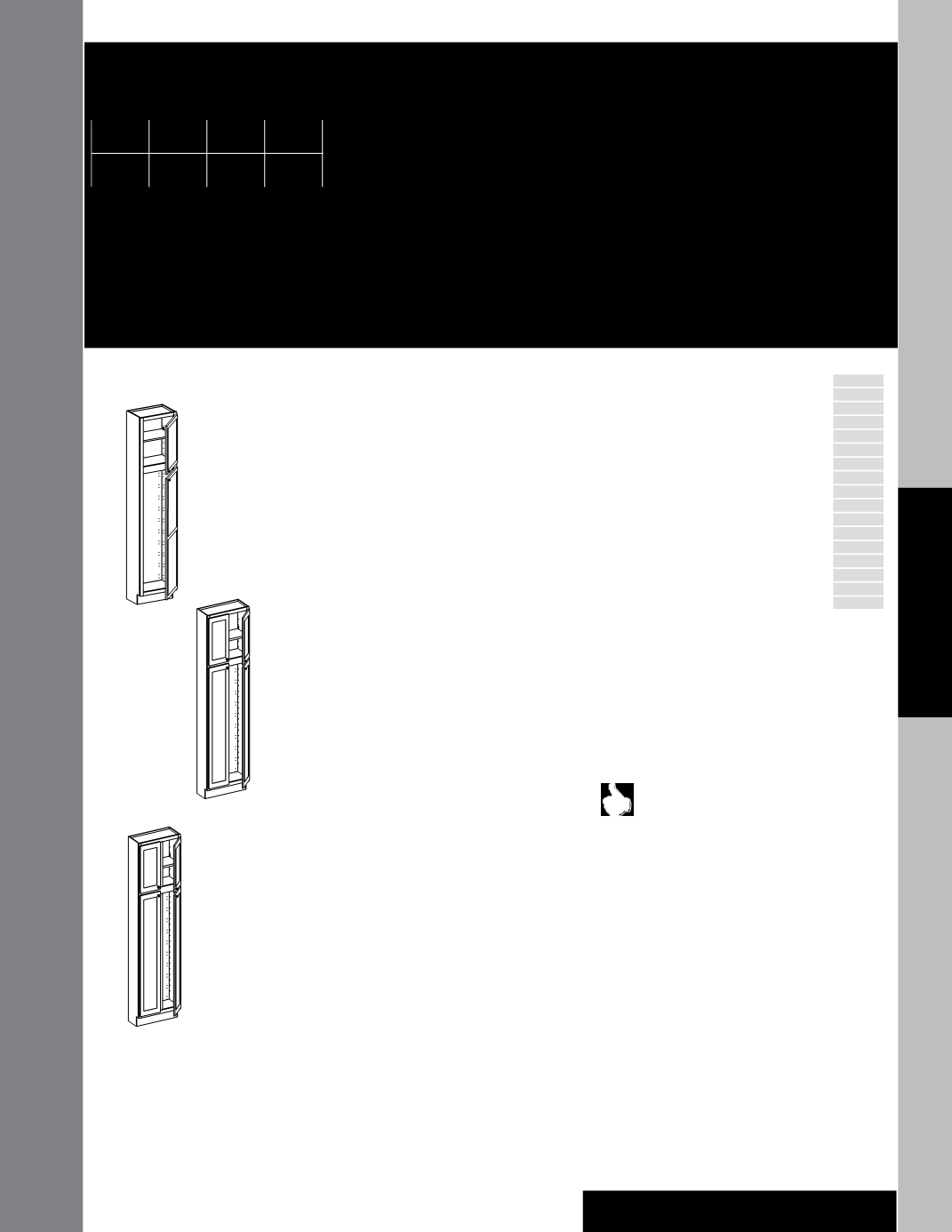

Utility Cabinets 12” Deep
Specify R or L
84” High
im;
U91284 R or L
U121284 R or L
U151284 R or L
U181284 R or L
U211284 R or L
U241284 R or L
m
U241284 BUTT
U271284 (Butt)
u
U301284
U301284 BUTT
u
U331284
U331284 BUTT
u
U361284
U361284 BUTT
87” High
im;
U91287 R or L
U121287 R or L
U151287 R or L
U181287 R or L
U211287 R or L
U241287 R or L
m
U241287 BUTT
U271287 (Butt)
u
U301287
U301287 BUTT
u
U331287
U331287 BUTT
u
U361287
U361287 BUTT
90” High
im;
U91290 R or L
U121290 R or L
U151290 R or L
U181290 R or L
U211290 R or L
U241290 R or L
m
U241290 BUTT
U271290 (Butt)
u
U301290
U301290 BUTT
u
U331290
U331290 BUTT
u
U361290
U361290 BUTT
93” High
im;
U91293 R or L
U121293 R or L
U151293 R or L
U181293 R or L
U211293 R or L
U241293 R or L
m
U241293 BUTT
U271293 (Butt)
u
U301293
U301293 BUTT
u
U331293
U331293 BUTT
u
U361293
U361293 BUTT
96” High
im;
U91296 R or L
U121296 R or L
U151296 R or L
U181296 R or L
U211296 R or L
U241296 R or L
m
U241296 BUTT
U271296 (Butt)
u
U301296
U301296 BUTT
u
U331296
U331296 BUTT
u
U361296
U361296 BUTT
• Includes adjustable shelves in upper section:
84” & 87” high—one shelf; 90” & 93” high—
two shelves; 96” high—three shelves
• No center rail on tall door for Argonne,
Astoria, Avery, Barnet, Camby, Chadwick,
Cornell, Courtney, Evana, Evana Cathedral,
Ferguson, Garrison, Halden, Harrington,
Jamison, Judson, Kendrick, Layden, Lockeford,
Maxton, Northwicke, Parker House,
Rutherford, Shepparton, Sheridan, Sydney,
Tennyson and Vanderbilt door styles
• Toe kick is shipped separately on 93˝ & 96˝
high cabinets
I
Wide Bottom Rail (WR) and Recessed Toe
Kick (RTK)
not
available on 93” & 96” high
cabinets
I
Void Toe Kick (VTK) is
not
available on 93”
and 96” high cabinets
I
When Inverted Frame (IF) is chosen in arched door styles,
U18, U24, U24BUTT and U36, cabinets will have arched
doors. All other cabinet sizes will be supplied with square
doors
I
Glass doors available for top doors only
I
Maximum Increased Depth (ID) is 23 15/16”
I
Operational End (OE) is
not
available with Increased
Depth (ID) or Reduced Depth (RD) options
•
Note
: Shelf Kit (SK) for lower section
must
be ordered
separately; see Shelving section of this book
Remember to order a 3/16” skin (WSK) for the
exposed ends of 93” & 96” high cabinets to
conceal the seam between the loose toe kick
and the cabinet.
l
PE
l
APC
l
APFC
l
FPEB
l
MI
l
DE
l
OE
I
CW
I
RD
I
ID
l
CH
I
IF
I
WR
l
XS
I
GD
I
RTK
I
VTK
84˝
87˝
90˝
93˝
96˝
12˝
U9-24
12˝
23 ½˝
27˝
30˝
33˝
36˝
84˝
87˝
90˝
93˝
96˝
23 ½˝
27˝
30˝
33˝
36˝
U24 BUTT -
U27 BUTT
12˝
84˝
87˝
90˝
93˝
96˝
23 ½˝
27˝
30˝
33˝
36˝
U30-36
with 3” center stile
i
Doors are square except full overlay arch door
styles. Laminate door styles will always be square.
Harlowe, Smithton and Vanderbilt doors will have
a solid, recessed flat panel.
m
Change Width (CW) option
not
available
;
Glass door option
not
available
u
3” center stile
