Cabinet
Width
Min.
Width
Max.
Width
Min.
Height
Max.
Height
24"
21"
22"
21"
33 13/16"
27"
21"
25"
21"
33 13/16"
30"
24"
28"
21"
33 13/16"
31 1/2"
25 1/2" 29 1/2"
21"
33 13/16"
33"
27"
31"
21"
33 13/16"
39"
33"
37"
21"
33 13/16"
Cut out dimensions
• Includes adjustable shelves in upper section:
84” & 87” high—no shelves; 90” & 93” high—
one shelf; 96” high—two shelves
• Field installed Roll-out Trays (ROT) may be
installed in lower compartment as follows:
• OC 24 utilizes ROT 24; Deluxe Dovetailed
Roll-out Tray
not
available
OC 27 utilizes ROT 24; Deluxe Dovetailed
Roll-out Tray
not
available
OC 30 utilizes ROT 27; Deluxe Dovetailed
Roll-out Tray
not
available
OC 33 utilizes ROT 15 or 30; Deluxe Dovetailed Roll-out
Tray
not
available
OC 39 utilizes ROT 18 or 36; Deluxe Dovetailed Roll-out
Tray
not
available
• Factory installed Roll-out Trays (ROT) are
not
available,
except OC 24
• Mullion strip oven cabinet (MSOTB) option is available
on OC 33_S and OC 39_S; see Construction Options
section of this book
• Oven Trim Kit (overlay panel) available for a full overlay
look; see Tall Accessories section of this book
I
Wide Bottom Rail (WR) and Recessed Toe Kick (RTK)
not
available on 93” & 96” high cabinets
I
Void Toe Kick (VTK) is
not
available on 93” and 96”
high cabinets
I
Glass doors available for top doors only
•
Not
available with knife hinge door option
• Roll-out Trays (ROT) are
not
available for 31 1/2” wide
cabinets
I
Maximum Increased Depth (ID) is 27”
•
Note
: When ordering glass doors in full overlay door
styles, a portion of the 3” face frame will be visible
Remember to order a 3/16” skin (WSK) for
the exposed ends of 93” & 96” high cabinets
to conceal the seam between the loose toe
kick and the cabinet.
F13
Tall Appliance Cabinets
Note
: Remember to remove the white plastic “feet” from the bottom of all tall cabinets before
installation. Their sole purpose is to protect the floor after the cabinets are unboxed. Leaving them on
will result in uneven installation.
Tall Cabinets
Tall Appliance
Cabinets
Construction Options and
Modifications
v
Included as standard
l
Available with an upcharge
I
Available with exceptions
(Blank)
Not
available
PE
Plywood Ends
APC All Plywood Construction
APFC All Plywood Furniture Construction
FPEB Furniture Plywood Ends
MI
Matching Interior
RD Reduced Depth
ID Increased Depth
IF
Inverted Frame
WR Wide Bottom Rail
XS
Extended Stile
GD Glass Doors
RTK Recessed Toe Kick
VTK Void Toe Kick
Note
: Standard tall cabinet box depth is 12” or 24” unless stated otherwise. Add
door thickness with bumpers for total depth.
Material dimensions listed may vary slightly from actual dimensions of the product.
Specifications subject to change without notice.
OC 30 24 84
code
width depth height

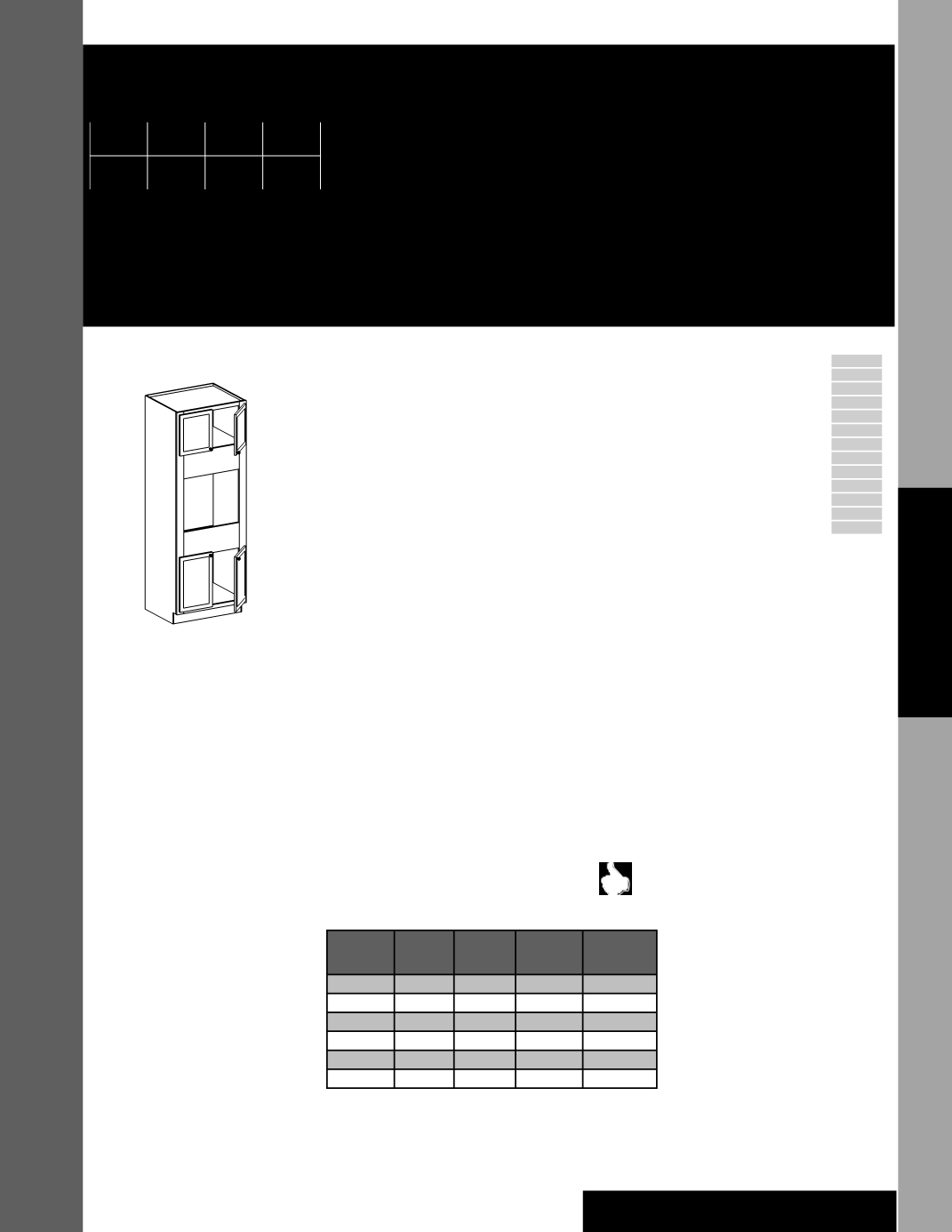

Oven Cabinet–Single w/3” Stiles
84” High
i
OC242484 (Butt)S
OC272484 (Butt)S
OC302484 (Butt)S
OC312484 (Butt)S
OC332484 BUTTS
us
OC392484 S
87” High
i
OC242487 (Butt)S
OC272487 (Butt)S
OC302487 (Butt)S
OC312487 (Butt)S
OC332487 BUTTS
us
OC392487 S
90” High
i
OC242490 (Butt)S
OC272490 (Butt)S
OC302490 (Butt)S
OC312490 (Butt)S
OC332490 BUTTS
us
OC392490 S
93” High
i
OC242493 (Butt)S
OC272493 (Butt)S
OC302493 (Butt)S
OC312493 (Butt)S
OC332493 BUTTS
us
OC392493 S
96” High
i
OC242496 (Butt)S
OC272496 (Butt)S
OC302496 (Butt)S
OC312496 (Butt)S
OC332496 BUTTS
us
OC392496 S
l
PE
l
APC
l
APFC
l
FPEB
l
MI
l
RD
I
ID
IF
I
WR
l
XS
I
GD
I
RTK
I
VTK
24˝
84˝
87˝
90˝
93˝
96˝
18˝
21˝
23 ½˝
27˝
30˝
i
1 1/2˝ stiles
u
3” center stile
s
Check manufacturer’s specifications for required
cutout dimensions. If the required cutout
height is less than 25˝, optional Oven Trim Kit is
required with the installation.
Grey color coding indicates new product, size or code.
