Tall Cabinets
Note
: Remember to remove the white plastic “feet” from the bottom of all tall cabinets before
installation. Their sole purpose is to protect the floor after the cabinets are unboxed. Leaving them on
will result in uneven installation.
Tall Cabinets

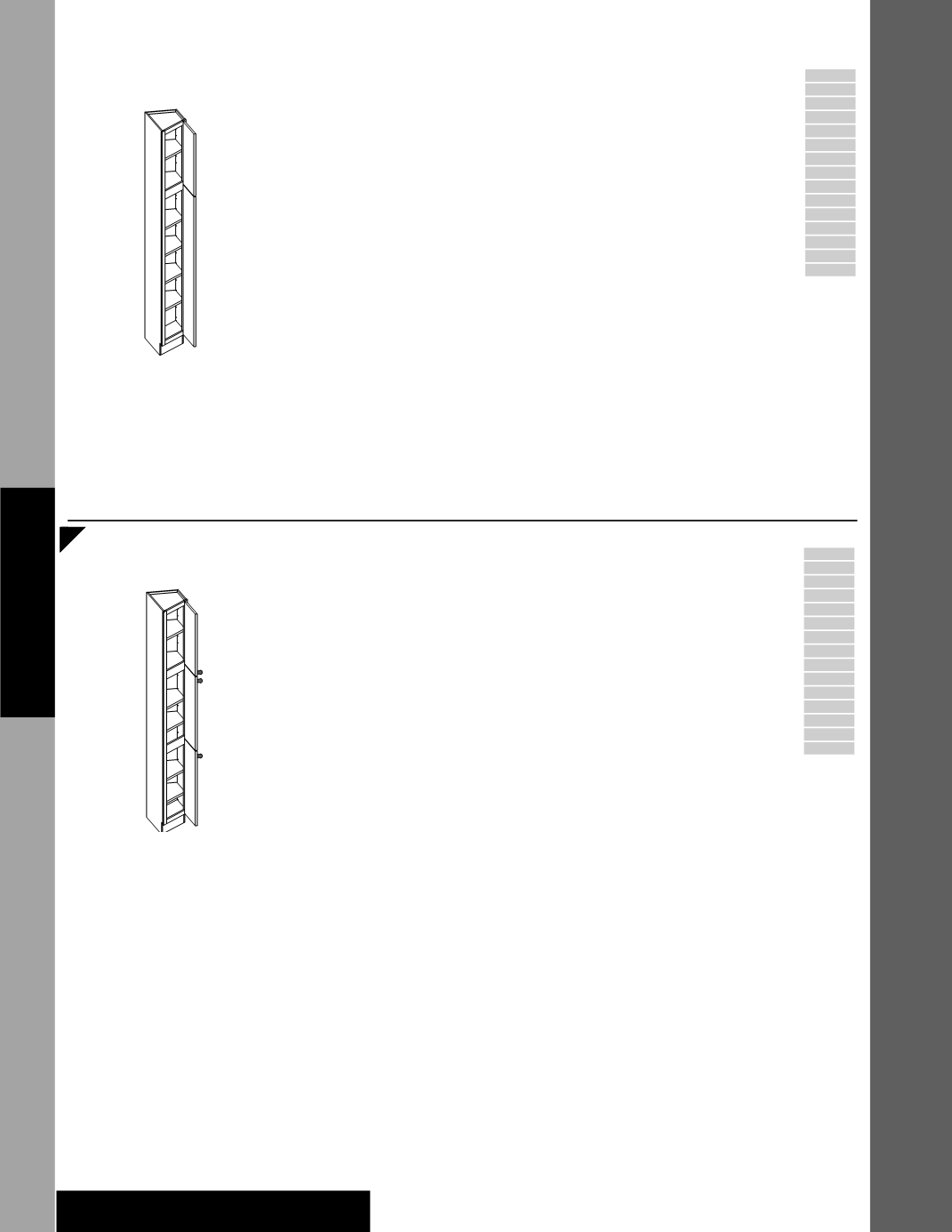

Tall End Angle
Specify R or L
TEA122484 R or L
TEA122487 R or L
TEA122490 R or L
TEA122493 R or L
TEA122496 R or L
• Includes adjustable shelves in upper section:
84” & 87” high—one shelf; 90” & 93” high—
two shelves; 96” high—three shelves
• Four adjustable bottom shelves; shipped
separately
• No center rail for Aldrich, Arlington, Ashbury,
Bartlett, Calumet, Carrington, Everett,
Kensington, North Bay and Shelburne door
styles
• Contrasting Back Options (CBEB, CPLB,
CVGR)
not
available
• Toe kick is shipped separately on 93˝ & 96˝
high cabinets
• Replacement shelf available specify BEA12 R
or L
I
Integrated Decorative Ends available on 12” Deep side
only
I
Minimum Reduced Depth (RD) is 18˝
I
Wide Rail Plain only (WR)
I
Recessed Toe Kick (RTK) available hinge side only
I
Void Toe Kick (VTK) is
not
available on 93” and 96” high
cabinets
•
Note
: 24 in. end panels are unfinished; cabinet is
intended to be used with a Utility or Oven Cabinet.
A panel
must
be used to cover the exposed side if
installing without an adjacent tall cabinet. 12 in. deep
end panels are finished.
•
Note
: Full overlay door styles use a 1/2” overlay hinge
l
PE
l
APC
l
APFC
l
FPEB
l
MI
I
DE
OE
I
RD
ID
IF
I
WR
XS
l
GD
I
RTK
l
VTK
12
˝
24
˝
23
½
˝
27
˝
30
˝
33
˝
36
˝
84˝
87˝
90˝
93˝
96˝
Tall End Angle Stack
Specify R or L
TEAST122484 R or L
TEAST122487 R or L
TEAST122490 R or L
TEAST122493 R or L
TEAST122496 R or L
• Includes adjustable shelves in upper section:
84” & 87” high—one shelf; 90” & 93” high—
two shelves; 96” high—three shelves
• Four adjustable bottom shelves; shipped
separately
• Contrasting Back Options (CBEB, CPLB,
CVGR)
not
available
• Toe kick is shipped separately on 93˝ & 96˝
high cabinets
• Replacement shelf available specify BEA12 R
or L
I
Integrated Decorative Ends available on 12”
Deep side only
I
Minimum Reduced Depth (RD) is 18˝
I
Wide Rail Plain only (WR)
I
Recessed Toe Kick (RTK) available hinge side only
I
Glass doors available for top section only
I
Change Height (CH) modifications will be made in the
upper section
I
Void Toe Kick (VTK) is
not
available on 93” and 96”
high cabinets
•
Note
: 24 in. end panels are unfinished; cabinet is
intended to be used with a Utility or Oven Cabinet.
A panel
must
be used to cover the exposed side if
installing without an adjacent tall cabinet. 12 in. deep
end panels are finished.
•
Note
: Full overlay door styles use a 1/2” overlay hinge
l
PE
l
APC
l
APFC
l
FPEB
l
MI
I
DE
OE
I
RD
ID
IF
I
WR
XS
I
GD
I
RTK
l
VTK
24˝
12˝
84˝
87˝
90˝
93˝
96˝
23 ½˝
27˝
30˝
33˝
36˝
30˝
26˝
New
Grey color coding indicates new product, size or code.
