Tall Appliance Cabinets
Note
: Remember to remove the white plastic “feet” from the bottom of all tall cabinets before
installation. Their sole purpose is to protect the floor after the cabinets are unboxed. Leaving them on
will result in uneven installation.
Tall Cabinets

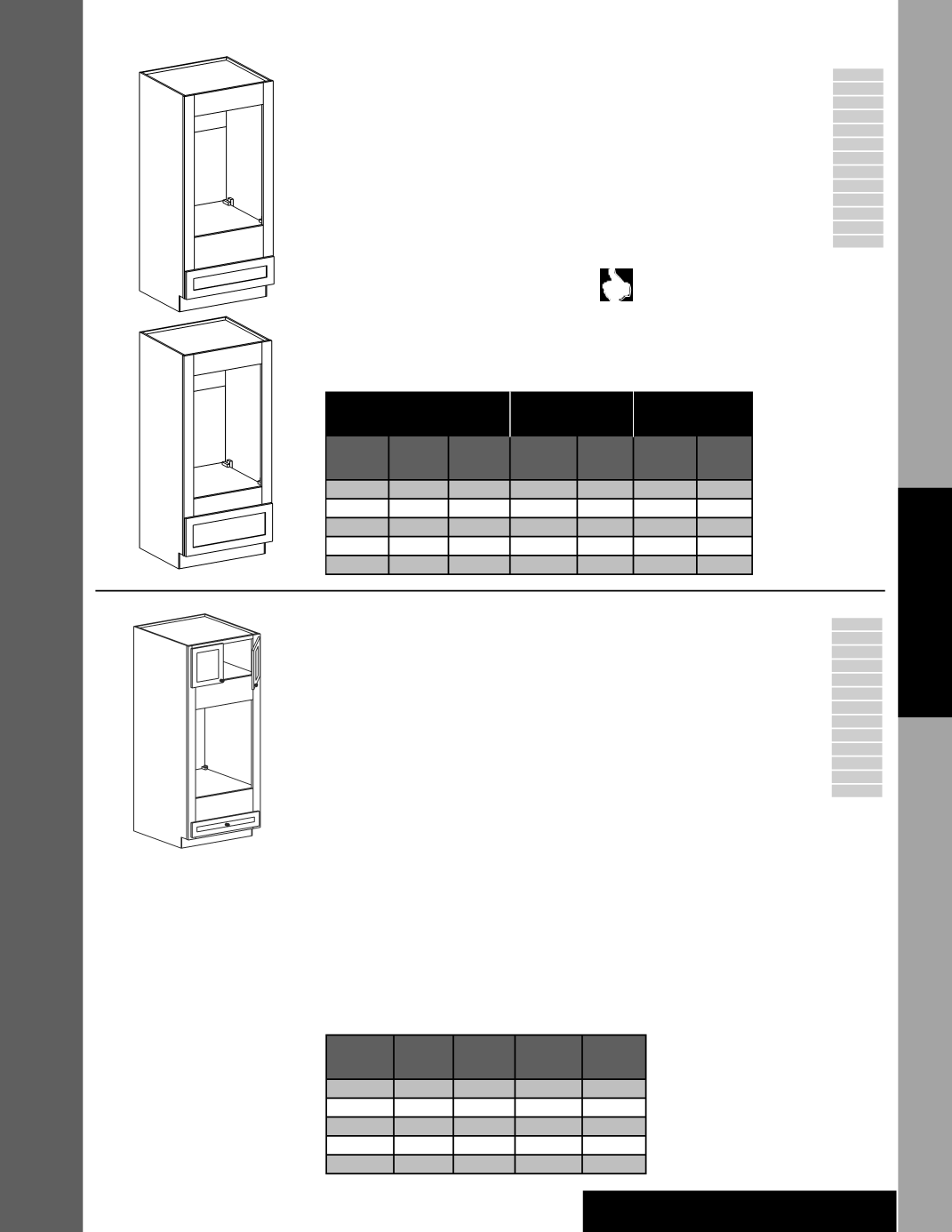

Oven Cabinet–Single Oven/Microwave Combination w/3” Stiles–Bottom Drawer
4” High Drawer
i
OC242460 (Butt)
OC272460 (Butt)
OC302460 (Butt)
OC312460 (Butt)
OC332460
7” High Deep Drawer
i
OC242460 (Butt)•DD
OC272460 (Butt)•DD
OC302460 (Butt)•DD
OC312460 (Butt)•DD
OC332460 •DD
• No shelf
• Oven Trim Kit (overlay panel) available for a
full overlay look; see Tall Accessories section
of this book
• Double Oven Opening Kit (DOK) shelf
available for two appliance installation; see
Tall Accessories section of this book
•
Not
available with knife hinge door option
• Roll-out Trays (ROT) are
not
available for 31
1/2” wide cabinets
I
Maximum Increased Depth (ID) is 27”
Remember to order a 3/16” skin (WSK) for the
exposed ends of 93” & 96” high cabinets to
conceal the seam between the loose toe kick
and the cabinet.
l
PE
l
APC
l
APFC
l
FPEB
l
MI
l
RD
I
ID
IF
l
WR
l
XS
GD
l
RTK
l
VTK
Cut out dimensions
4” Bottom
Drawer
7” Bottom
Drawer
Cabinet
Width
Min.
Width
Max.
Width
Min.
Height
Max.
Height
Min.
Height
Max.
Height
24"
21"
22"
33 1/2"
44"
34 1/2"
41"
27"
21"
25"
33 1/2"
44"
34 1/2”
41"
30"
24"
28"
33 1/2”
44"
34 1/2”
41"
31 1/2” 25 1/2" 29 1/2"
33 1/2”
44"
34 1/2”
41"
33"
27"
31"
33 1/2”
44"
34 1/2”
41"
24˝
4˝
7˝
24˝
60 ½˝
60 ½˝
OC_60
OC_60 •DD
i
1 1/2˝ stiles
Grey color coding indicates new product, size or code.
Oven Cabinet–Double w/3” Stiles
84” High
i
OC242484 (Butt)D
OC272484 (Butt)D
OC302484 (Butt)D
OC312484 (Butt)D
OC332484 BUTTD
87” High
i
OC242487 (Butt)D
OC272487 (Butt)D
OC302487 (Butt)D
OC312487 (Butt)D
OC332487 BUTTD
90” High
i
OC242490 (Butt)D
OC272490 (Butt)D
OC302490 (Butt)D
OC312490 (Butt)D
OC332490 BUTTD
93” High
i
OC242493 (Butt)D
OC272493 (Butt)D
OC302493 (Butt)D
OC312493 (Butt)D
OC332493 BUTTD
96” High
i
OC242496 (Butt)D
OC272496 (Butt)D
OC302496 (Butt)D
OC312496 (Butt)D
OC332496 BUTTD
• Includes adjustable shelves in upper section:
84” & 87” high—no shelves; 90” & 93” high—
one shelf; 96” high—two shelves
• Oven Trim Kit (overlay panel) available for a
full overlay look; see Tall Accessories section
of this book
• Double Oven Opening Kit (DOK) shelf
available for two appliance installation; see
Tall Accessories section of this book
I
Wide Bottom Rail (WR) and Recessed Toe
Kick (RTK)
not
available on 93” & 96” high
cabinets
• Toe kick is shipped separately on 93˝ & 96˝ high cabinets
I
Void Toe Kick (VTK) is
not
available on 93” and 96” high
cabinets
•
Not
available with knife hinge door option
• Roll-out Trays (ROT) are
not
available for 31 1/2” wide
cabinets
I
Maximum Increased Depth (ID) is 27”
•
Note
: When ordering glass doors in full overlay door styles,
a portion of the 3” face frame will be visible
l
PE
l
APC
l
APFC
l
FPEB
l
MI
l
RD
I
ID
IF
I
WR
l
XS
l
GD
I
RTK
I
VTK
4˝
24˝
84˝
87˝
90˝
93˝
96˝
18˝
21˝
23 ½˝
27˝
30˝
Cabinet
Width
Min.
Width
Max.
Width
Min.
Height
Max.
Height
24"
21"
22"
36 1/2”
50"
27"
21"
25"
36 1/2”
50"
30"
24"
28"
36 1/2”
50”
31 1/2"
25 1/2" 29 1/2"
36 1/2”
50"
33"
27"
31"
36 1/2”
50"
Cut out dimensions
i
1 1/2˝ stiles
Grey color coding indicates new product, size or code.
