F6
Tall Cabinets
Note
: Remember to remove the white plastic “feet” from the bottom of all tall cabinets before
installation. Their sole purpose is to protect the floor after the cabinets are unboxed. Leaving them on
will result in uneven installation.

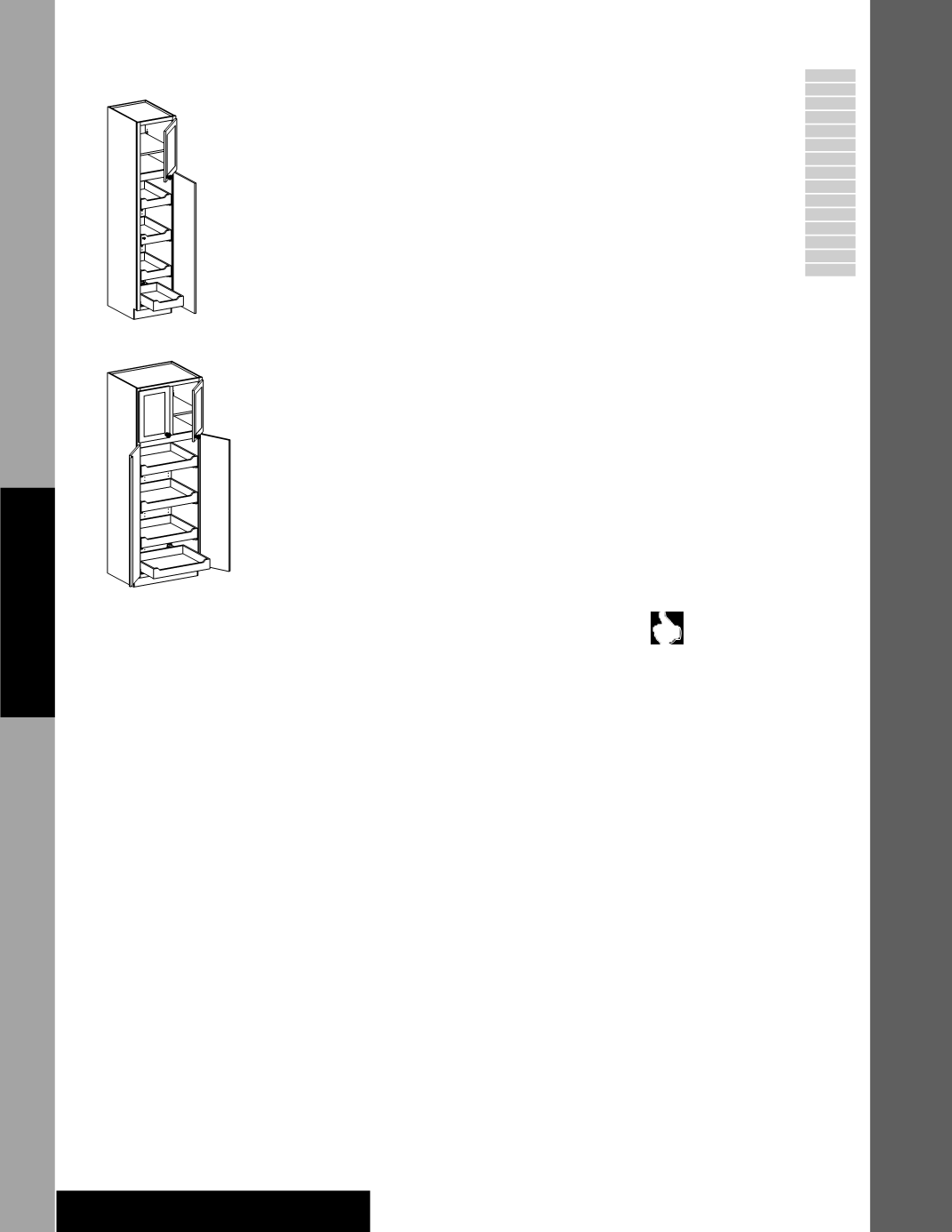

Tall Cabinets
Utility Deluxe Dovetailed Roll-out Tray
Specify R or L
84” High
U152484 R or L•4DXROT
U182484 R or L•4DXROT
U212484 R or L•4DXROT
U242484 R or L•4DXROT
U242484 BUTT•4DXROT
U272484 (Butt)•4DXROT
U302484 •4DXROT
U302484 BUTT•4DXROT
U332484 •4DXROT
U332484 BUTT•4DXROT
U362484 •4DXROT
U362484 BUTT•4DXROT
87” High
U152487 R or L•4DXROT
U182487 R or L•4DXROT
U212487 R or L•4DXROT
U242487 R or L•4DXROT
U242487 BUTT•4DXROT
U272487 (Butt)•4DXROT
U302487 •4DXROT
U302487 BUTT•4DXROT
U332487 •4DXROT
U332487 BUTT•4DXROT
U362487 •4DXROT
U362487 BUTT•4DXROT
90” High
U152490 R or L•4DXROT
U182490 R or L•4DXROT
U212490 R or L•4DXROT
U242490 R or L•4DXROT
U242490 BUTT•4DXROT
U272490 (Butt)•4DXROT
U302490 •4DXROT
U302490 BUTT•4DXROT
U332490 •4DXROT
U332490 BUTT•4DXROT
U362490 •4DXROT
U362490 BUTT•4DXROT
93” High
U152493 R or L•4DXROT
U182493 R or L•4DXROT
U212493 R or L•4DXROT
U242493 R or L•4DXROT
U242493 BUTT•4DXROT
U272493 (Butt)•4DXROT
U302493 •4DXROT
U302493 BUTT•4DXROT
U332493 •4DXROT
U332493 BUTT•4DXROT
U362493 •4DXROT
U362493 BUTT•4DXROT
96” High
U152496 R or L•4DXROT
U182496 R or L•4DXROT
U212496 R or L•4DXROT
U242496 R or L•4DXROT
U242496 BUTT•4DXROT
U272496 (Butt)•4DXROT
U302496 •4DXROT
U302496 BUTT•4DXROT
U332496 •4DXROT
U332496 BUTT•4DXROT
U362496 •4DXROT
U362496 BUTT•4DXROT
• Four adjustable Roll-out
Trays (ROT) included in
lower section
• Includes adjustable shelves
in upper section: 84” &
87” high—one shelf; 90” &
93” high—two shelves; 96”
high—three shelves
• No center rail on tall door
for Arlington, Ashbury,
Burwell, Calumet,
Carrington, Cresden, Everett
Roman, Everett Square,
Frederickton, Gresham,
Hartwell, Hollin, Jamestown, Jayden,
Kendall, Kensington, Lenway, Malibu,
Merrill, North Bay Square, Shelburne,
Stilton, Templeton and Vienna door styles
• Roll-out Trays (ROT) are 4” deep, 3/4˝
solid wood dovetailed sides with 3/16”
plywood bottom, notched front and full
extension runners with integrated buffer
• Roll-out Trays (ROT) shipped separately
on 27˝–36˝ wide units
• Toe kick is shipped separately on 93˝ &
96˝ high cabinets
I
Reduced Depth (RD) available in 18˝ and
21˝ depths only
I
Wide Bottom Rail (WR) and Recessed Toe
Kick (RTK)
not
available on 93” & 96” high
cabinets
I
27˝–36˝ wide units
not
available with
Reduced Depth (RD)
I
Glass doors available for top doors only
I
Void Toe Kick (VTK) is
not
available on
93” and 96” high cabinets
I
Maximum Increased Depth (ID) is 27”
Remember to order a 3/16” skin
(WSK) for the exposed ends of
93” & 96” high cabinets to
conceal the seam between the loose toe
kick and the cabinet.
