F4
Tall Cabinets
Note
: Remember to remove the white plastic “feet” from the bottom of all tall cabinets before
installation. Their sole purpose is to protect the floor after the cabinets are unboxed. Leaving them on
will result in uneven installation.
Tall Cabinets

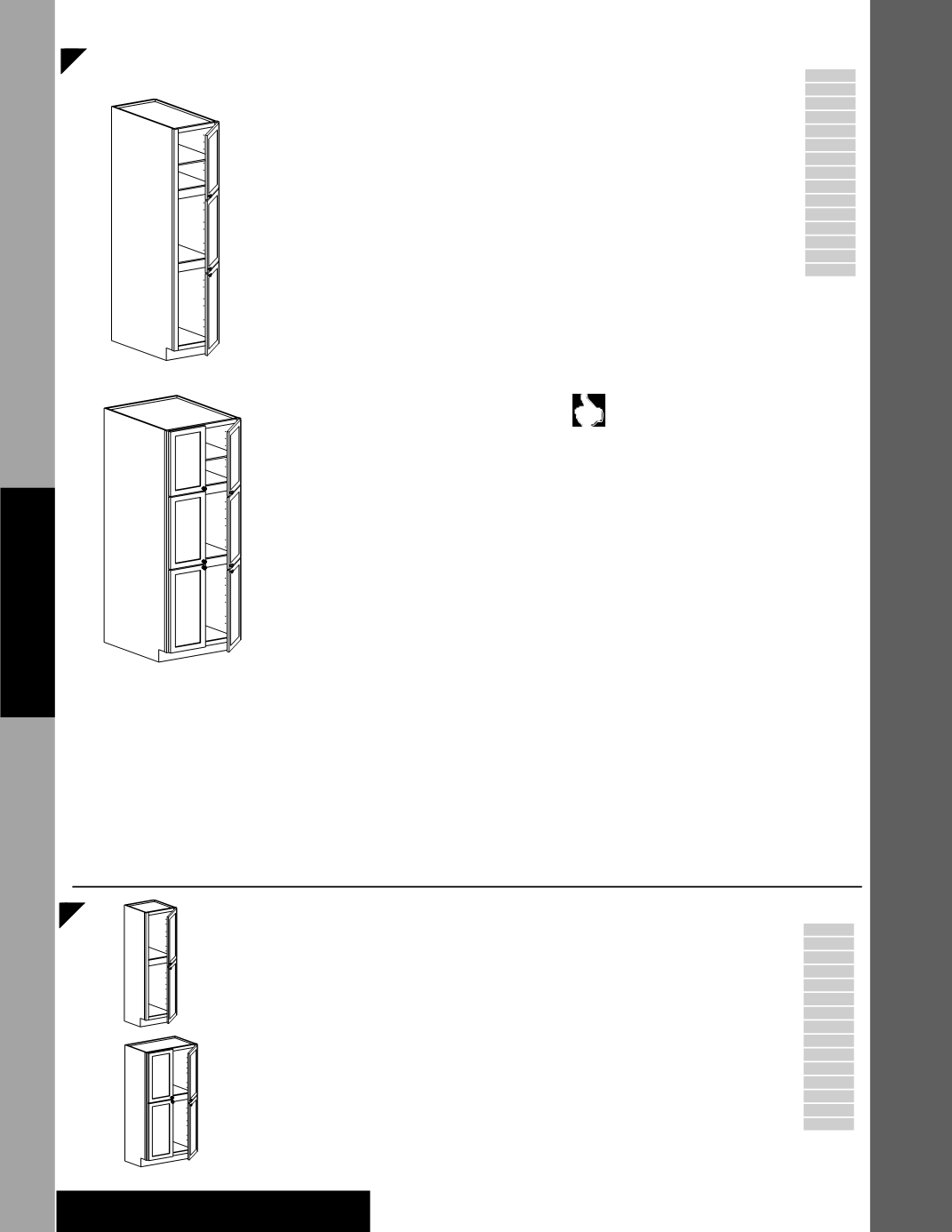

Utility Stack Cabinets 24” Deep
Specify R or L
84” High
i;
UST92484 R or L
UST122484 R or L
UST152484 R or L
UST182484 R or L
UST212484 R or L
UST242484 R or L
UST242484 BUTT
UST272484 (Butt)
UST302484 BUTT
UST332484 BUTT
UST362484 BUTT
87” High
i;
UST92487 R or L
UST122487 R or L
UST152487 R or L
UST182487 R or L
UST212487 R or L
UST242487 R or L
UST242487 BUTT
UST272487 (Butt)
UST302487 BUTT
UST332487 BUTT
UST362487 BUTT
90” High
i;
UST92490 R or L
UST122490 R or L
UST152490 R or L
UST182490 R or L
UST212490 R or L
UST242490 R or L
UST242490 BUTT
UST272490 (Butt)
UST302490 BUTT
UST332490 BUTT
UST362490 BUTT
93” High
i;
UST92493 R or L
UST122493 R or L
UST152493 R or L
UST182493 R or L
UST212493 R or L
UST242493 R or L
UST242493 BUTT
UST272493 (Butt)
UST302493 BUTT
UST332493 BUTT
UST362493 BUTT
96” High
i;
UST92496 R or L
UST122496 R or L
UST152496 R or L
UST182496 R or L
UST212496 R or L
UST242496 R or L
UST242496 BUTT
UST272496 (Butt)
UST302496 BUTT
UST332496 BUTT
UST362496 BUTT
• Includes adjustable shelves in upper section:
84” & 87” high—one shelf; 90” & 93” high—
two shelves; 96” high—three shelves
• Factory installed Roll-out Trays (ROT) are
not
available on Utility Cabinets wider than 24˝
• Toe kick is shipped separately on 93˝ & 96˝
high cabinets
I
Wide Bottom Rail (WR) and Recessed Toe
Kick (RTK)
not
available on 93” & 96” high
cabinets
I
Void Toe Kick (VTK) is
not
available on 93”
and 96” high cabinets
I
Glass doors available for top doors only
I
Change Height (CH) modifications will be made in the
upper section
I
Maximum Increased Depth (ID) is 27”
I
Operational End (OE) is
not
available with Reduced Depth
(RD) options
•
Note
: Shelf Kits (SK) for center and bottom sections
must
be ordered separately; see Shelving section of this book
Remember to order a 3/16” skin (WSK) for the
exposed ends of 93” & 96” high cabinets to
conceal the seam between the loose toe kick
and the cabinet.
l
PE
l
APC
l
APFC
l
FPEB
l
MI
l
DE
I
OE
l
RD
I
ID
IF
I
WR
l
XS
I
GD
I
RTK
I
VTK
84˝
87˝
90˝
93˝
96˝
84˝
87˝
90˝
93˝
96˝
24˝
24˝
23 ½˝
27˝
30˝
33˝
36˝
23 ½˝
27˝
30˝
33˝
36˝
U9-24
U24-36
26˝
30˝
26˝
30˝
New
i
Doors are square except full overlay arch door
styles. Laminate doors styles will always be square.
Hathaway, Southington and Vienna doors will
have a solid, recessed flat panel
;
Glass door option
not
available
Grey color coding indicates new product, size or code.
Utility Stack Cabinets 60 1/2” High 12” Deep
Specify R or L
Single Door
i;
UST91260 R or L
UST121260 R or L
UST151260 R or L
UST181260 R or L
UST211260 R or L
UST241260 R or L
Double Door
UST241260 BUTT
UST271260 (Butt)
UST301260 BUTT
UST331260 BUTT
UST361260 BUTT
• No shelf
• All door styles furnished square
• Factory installed Roll-out Trays (ROT) are
not
available on Utility Cabinets wider than 24˝
I
Maximum Increased Depth (ID) is 23 15/16”
I
Operational End (OE) is
not
available with
Increased Depth (ID) or Reduced Depth (RD)
options
•
Note
: Shelf Kits (SK) for center and bottom
sections
must
be ordered separately; see
Shelving section of this book
l
PE
l
APC
l
APFC
l
FPEB
l
MI
l
DE
l
OE
I
RD
I
ID
IF
l
WR
l
XS
GD
l
RTK
l
VTK
12˝
12˝
60 ½˝
60 ½˝
U9-24
U24 BUTT-
U36 BUTT
26˝
30˝
26˝
30˝
New
i
Hathaway, Southington and Vienna doors will
have a solid, recessed flat panel
;
Glass door option
not
available
Grey color coding indicates new product, size or code.
