D19
Peninsula Wall Corner Cabinets
Wall Cabinets
Peninsula Wall
Corner Cabinets
Construction Options and
Modifications
v
Included as standard
l
Available with an upcharge
I
Available with exceptions
(Blank)
Not
available
PE
Plywood Ends
APC All Plywood Construction
APFC All Plywood Furniture Construction
FPEB Furniture Plywood Ends
MI
Matching Interior
RD Reduced Depth
ID Increased Depth
XS
Extended Stile
GD Glass Doors
Material dimensions listed may vary slightly from actual dimensions of the product.
Specifications subject to change without notice.
PWA 24 30 R L
code width height
kitchen
side
hinging
rear
door
place-
ment
(look-
ing at
kitchen
side)

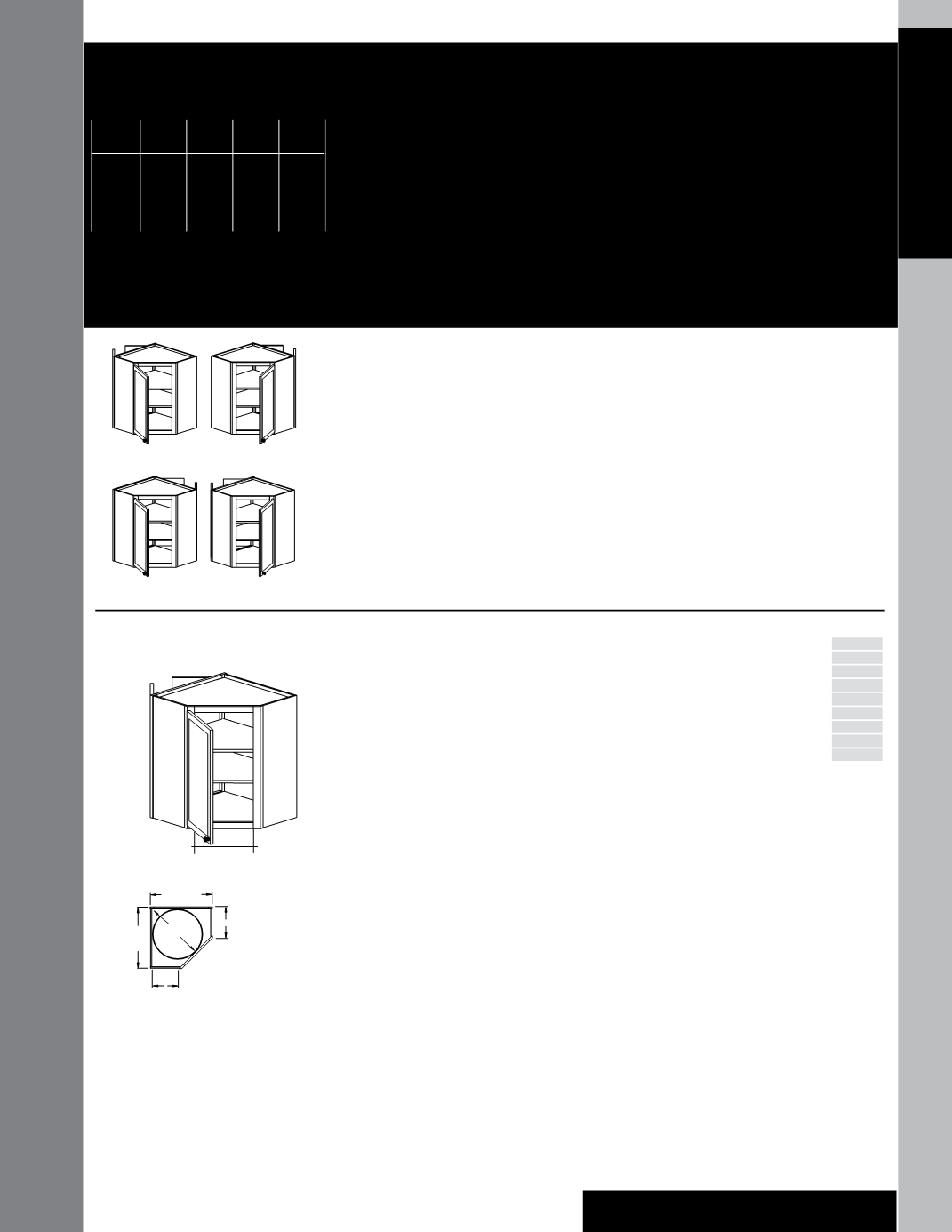

Peninsula Wall Angle Example
• Specify R or L rear door position
• The second R or L designates rear frame
position looking at kitchen side
Left/Left
Right/Right
Right/Left
Left/Right
Peninsula Wall Angle
Specify R or L Kitchen Side Hinging
Specify R or L Rear Door Placement
One shelf
23 1/2” High
PWA2424 RR or RL
PWA2424 LR or LL
Two shelves
30” High
PWA2430 RR or RL
PWA2430 LR or LL
33” High
PWA2433 RR or RL
PWA2433 LR or LL
Three shelves
36” High
PWA2436 RR or RL
PWA2436 LR or LL
39” High
PWA2439 RR or RL
PWA2439 LR or LL
42” High
PWA2442 RR or RL
PWA2442 LR or LL
• Left/Left shown
• Adjustable shelves
• Butt doors on peninsula side
• Frame backs are
not
finished
• See example for hinging and rear door
position
•
Note:
Full Overlay door styles: Kitchen side
(front) doors use a 1/2” overlay hinge. Peninsula side
(back) doors use a full overlay hinge
l
PE
l
APC
l
APFC
l
FPEB
l
MI
RD
ID
XS
l
GD
23 ½˝
30˝
33˝
36˝
39˝
42˝
12˝
24˝
13 ½˝
opening
25 / ˝
24˝
24˝
12˝
12˝
