Decorative Appliance Panels
Decorative Panel–Door Onlay Panel and Hinge Doors
APDRL •B or W
APDRR •B or W
APDRNH •B or W
• Doors and onlay panels ordered 10˝–42˝ high
will have a single center panel
• Doors and onlay panels ordered 55” – 80”
will have a double center panel (a horizontal
center rail will equally divide the onlay panel)
• Mitered door styles will have a single center
panel, regardless of height
• When an arched door style is selected, you
must
select Arched (•W) or Square (•B) to
determine the door and onlay panel’s top
profile
• When a square door style is selected, the
square profile will be supplied for all onlay
panels as standard. It is recommended to
use a square profile when ordering an onlay
panel for a dishwasher or trash compactor
application.
• Multiple doors and panels of identical size
may be ordered by listing the quantity needed.
The quantity will default to one if a number is
not
given.
• Veneer raised panel door styles will be
supplied with a solid wood center panel
machined to resemble the veneer center panel
• Due to varying dimensions and designs of
raised center panels, recessed center panels
may be supplied when the center panel width
or height is less than 3 1/4”
• Hinging for doors:
Doors 10” to 33” get two hinge holes
Doors 33 1/6” to 48” get three hinge holes
Doors 48 1/2” to 80” get four hinge holes
• Backs are finished
•
Note:
Check appliance manufacturer’s specs
for any additional material (shims, spacers,
etc.) that may be needed before placing any
order. Appliance model numbers are
not
sufficient, numeric dimensions
must
be used
when ordering.

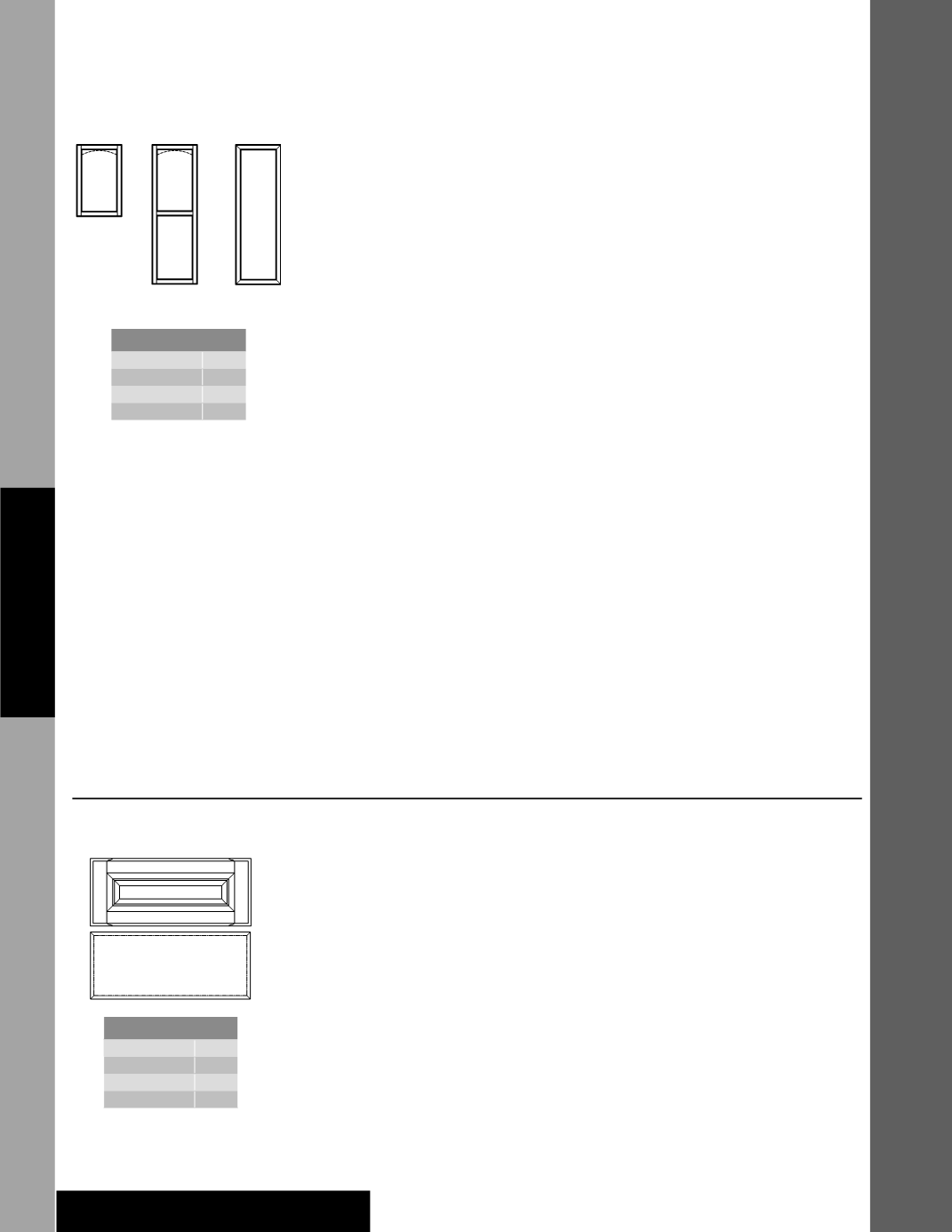

10˝- 42˝
High
Mitered
Onlay Panel
Minimum Width 8˝
Maximum Width 36˝
Minimum Height
10˝
Maximum Height
80˝
42 / ˝
80˝
High
Decorative Panel–Drawer Onlay Panel
APDW
• APDW will follow the selected door style’s
drawer front configuration
• Five-piece grill panels/drawer heads ordered in
heights less than 6 1/8˝ may be supplied as a
solid slab onlay panel. Some five-piece drawer
fronts may have a recessed center panel.
• Multiple doors and panels of identical size
may be ordered by listing the quantity needed.
The quantity will default to one if a number is
not
given.
• “Width” will be referred to as “Length” on
your faxed acknowledgments for APDW only
• If unit is installed at an angle, fillers should
be used to avoid interference with adjacent
cabinet
• Veneer raised panel door styles will be
supplied with a solid wood center panel
machined to resemble the veneer center panel
• Backs are finished
•
Note:
Check appliance manufacturer’s specs
for any additional material (shims, spacers,
etc.) that may be needed before placing any
order. Appliance model numbers are
not
sufficient, numeric dimensions
must
be used
when ordering.
Onlay Panel
Minimum Width 6”
Maximum Width 48”
Minimum Height
2 ¼”
Maximum Height
30”
