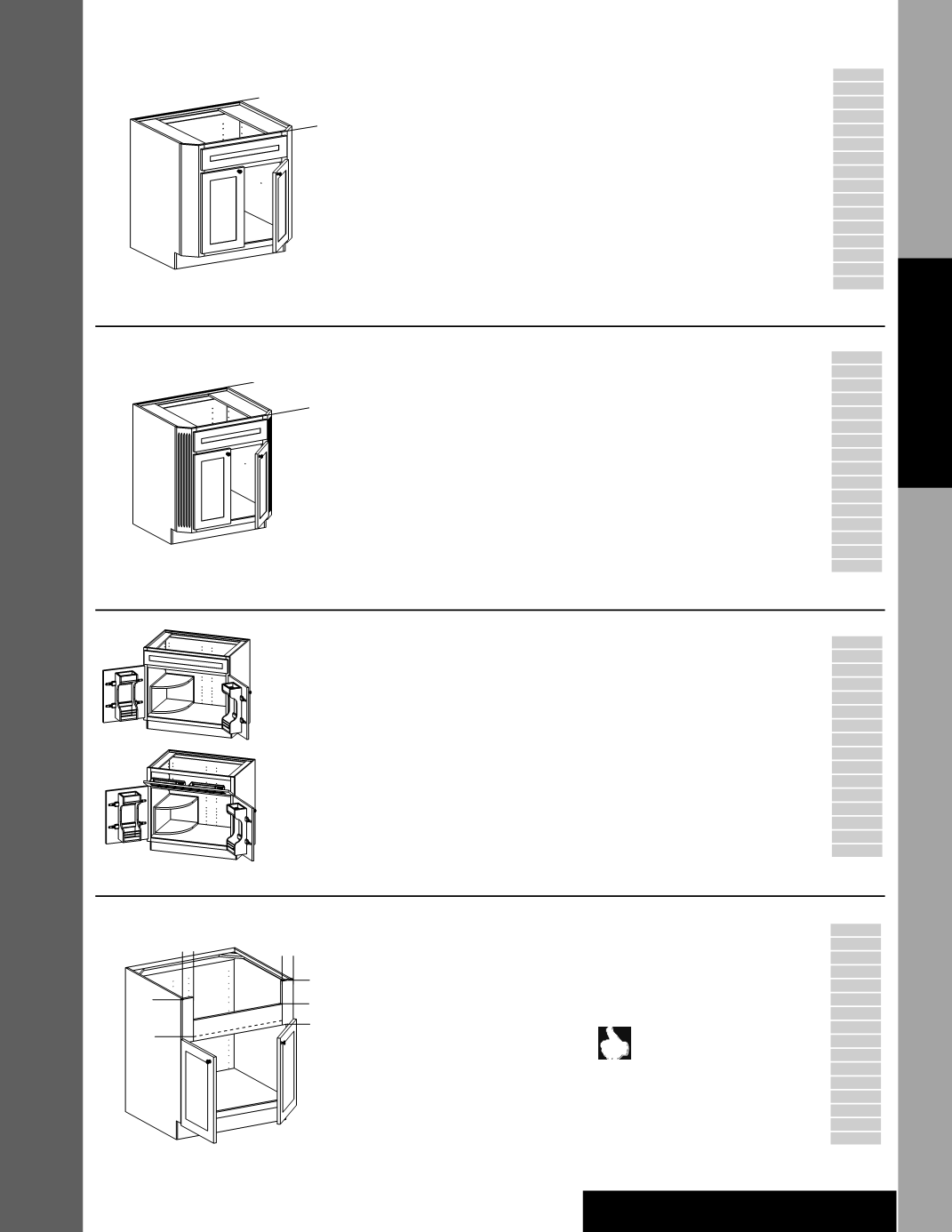

Base Cabinets
E13
Base Cabinets
Sink Base–Clipped Corners
SBCC3027 BUTT
SBCC3327 BUTT
SBCC3627 BUTT
SBCC4227 BUTT
• No shelf
• False drawer front
• Optional Door Storage Unit (SBDSU) is
available
• Optional Utensil Trays (UT and SUT) are
available
• Angled stiles extend 3˝ each side
• Nominal width is overall cabinet width.
Example: SBCC3027BUTT is 30˝ wide.
• Factory installed Roll-out Trays (ROT) are
not
available
• Can be used as corner sink by butting up
adjacent cabinets to the clipped corner area
• Includes a Touch-Up Kit (TUK)
• Use Full-Height Kitchen (FHK) option to
achieve a full-height door look
l
PE
l
APC
l
APFC
l
FPEB
MI
DE
RD
IF
l
TWR
WR
XS
XSG
l
GD
RTK
RTKP
l
VTK
34
1
/
2
˝
24˝
27˝
Sink Base–Fluted Clipped Corners
SBFCC3027 BUTT
SBFCC3327 BUTT
SBFCC3627 BUTT
SBFCC4227 BUTT
• No shelf
• False drawer front
• Optional Door Storage Unit (SBDSU) is
available
• Optional Utensil Trays (UT and SUT) are
available
• Angled stiles extend 3˝ each side
• Nominal width is overall cabinet width.
Example: SBFCC3027BUTT is 30˝ wide.
• Factory installed Roll-out Trays (ROT) are
not
available
• Includes a Touch-Up Kit (TUK)
• Use Full-Height Kitchen (FHK) option to
achieve a full-height door look
•
Not
available in Sturbridge; Beale, Hayward
and Manchester supplied plain sawn
l
PE
l
APC
l
APFC
l
FPEB
MI
DE
RD
IF
l
TWR
WR
XS
XSG
l
GD
RTK
RTKP
l
VTK
34
1
/
2
˝
24˝
27˝
Sink Base Multi-Storage Cabinet
SBMS30 BUTT
SBMS33 BUTT
SBMS36 BUTT
u
SBMS39
u
SBMS42
With Stainless Utensil Tray
SBMS30 BUTT•SUT
SBMS33 BUTT•SUT
SBMS36 BUTT•SUT
u
SBMS39 •SUT
u
SBMS42 •SUT
• No shelf
• False drawer front(s)
• Includes two Door Storage Units (SBDSU)
and one Multi-Storage Shelf (SBMSSK)
• Sink Base Multi-Storage Shelf Kit (SBMSSK)
shipped separately
I
Sink Base Multi-Storage Shelf Kit (SBMSSK)
is Natural Birch plywood and does
not
come
matching
• Includes a Touch-Up Kit (TUK)
l
PE
l
APC
l
APFC
l
FPEB
I
MI
l
DE
RD
IF
l
TWR
l
WR
l
XS
XSG
GD
l
RTK
l
RTKP
l
VTK
34
1
/
2
˝
24˝
34
1
/
2
˝
24˝
•SUT
u
3” center stile
Deep Sink Base
DSB30 BUTT
DSB36 BUTT
• 3˝ stiles are routed to 1 1/2˝ in the door area
• Includes a Touch-Up Kit (TUK)
•
Note
: Be sure to follow manufacturer’s
specifications to ensure proper sink fit
To avoid cutting the side walls of a
sink base cabinet, make sure your
sink base cabinet is at least 2 1/2”
wider than the overall width of your sink. If
your overall front-to-back sink depth is 22
1/2” or greater use a 27” deep sink base.
l
PE
l
APC
l
APFC
l
FPEB
l
MI
DE
l
RD
IF
TWR
l
WR
l
XS
XSG
l
GD
l
RTK
l
RTKP
l
VTK
34 ½˝
5 ½˝
8¾˝
max
cutout
5˝
3˝
3˝
24˝
