Specifications and Options
C1
Cabinet Specifications
Cabinet
Specifications

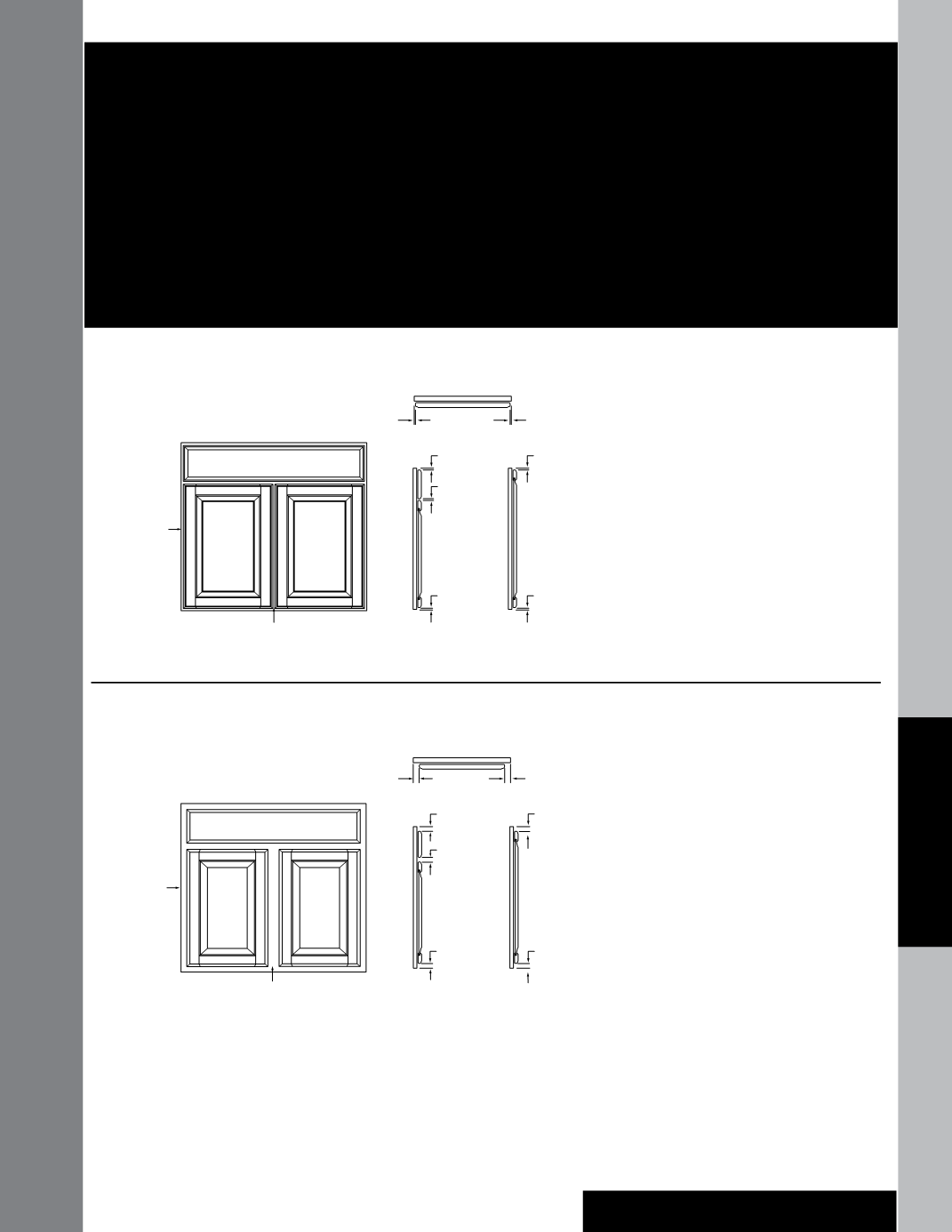

Full Overlay – Concealed Hinges
• Full Overlay doors leave 3/16˝ of the cabinet’s face frame
exposed on either sides of the doors and 3/8” exposed
between doors
• Butt door cabinets have 1/8” reveal between doors
• Nickel-finished self-closing hinges with soft-close action.
Adjustable six ways for perfect alignment
• The reveals shown here may vary slightly on some
cabinets due to actual door/drawer front sizes used. Refer
to the replacement part section of the book for actual
door/drawer sizes for specific cabinets
•
Note
: A combination of soft-close and non-soft-close
hinges may be used based on door size and weight
⁄
"
reveal
⅜"
reveal
top view
side view
⁄
"
⁄
"
⅜"
⅜"
⅜"
⅜"
⅜"
1/2” Overlay – Concealed Hinges
• 1/2” overlay doors leave 7/8” of the cabinet’s face frame
exposed on either side of the doors and 1 3/4” exposed
between doors
• Butt door cabinets have 1/8” reveal between doors
• Nickel-finished self-closing hinges with soft-close action.
Adjustable six ways for perfect alignment
• The reveals shown here may vary slightly on some
cabinets due to actual door/drawer front sizes used.
Refer to the replacement part section of the book for
actual door/drawer sizes for specific cabinets
•
Note
: A combination of soft-close and non-soft-close
hinges may be used based on door size and weight
⅞" reveal
1¾" reveal
⅞"
⅞"
top view
side view
1"
1"
1"
1"
1"
