Detailed Description

A layout that positions all of its children in a row, a column, or a 'shaft'.

By default, children are arranged horizontally (i.e. in a row).

This layout respects the padding layout configuration option and the margin per-node layout configuration option.

Note: There are three 'helper' layout classes that can be used instead of CYILinearLayout: CYIRowLayout, CYIColumnLayout, and CYIShaftLayout. Using these classes will force a specific orientation on the linear layout.

Container View Template Comments Specification

These values are applied to the comment field of the container composition. All properties are optional.

Label	Default value	Accepted values	Description
spacing	10.0	floating point	The amount of space left between laid-out items.
justify	false	true, false	If true, items will be laid-out to take the full width (or height for vertical layouts, or depth for shaft layouts) of the container. Items will be separated by an equal amount of space.
orientation	horizontal	horizontal, vertical, or shaft	The orientation in which items will be laid-out in the layout: in a row, a column, or a shaft, respectively.
overflow	ignore	ignore, offscreen, wrap, wrap-and-offscreen	The behaviour when items overflow the container. See the 'overflow' section for details.
line-gravity	default	default, start, middle, end, justify	The alignment of lines in the non-layout direction. See the 'overflow' section for details.

Note: The meaning of the 'gravity' property of CYILayout is modified slightly by this class. See the 'Gravity and Justification' section for details.

The parent layout class may define more properties that can be used.

See also: CYIAnimatingLayout

Children View Template Comments Specification

This class has no configurable per-child properties, except for those of the parent class.

See also: CYIAnimatingLayout

Gravity and Justification

The meaning of the 'gravity' property is slightly altered by this layout. Normally, the gravity is applied to each child of the layout individually. But for linear layouts, the gravity value in the layout direction (for example the horizontal component of the gravity for horizontal linear layouts) is applied to the group of laid-out children rather than to individual children.

When an 'item gravity' per-node layout configuration is set on one (or more) of the children, that child may be aligned separately. The linear layout sorts children within each line in three groups: children aligned at the start of the line, children aligned at the end of the line, and children aligned at the middle of the line. If, during arrangement, the middle children would overlap with either the start or end children, then the middle children are offset appropriately to avoid overlap.

Warning: Setting a gravity value of 'none' for the layout direction will result in undefined behaviour.

As an example, the following diagram shows using a horizontal layout with two items and a gravity of 'top-right'.

+--------------------------------+
|               +------+ +------+|
|               |Item 1| |Item 2||
|               +------+ +------+|
|                                |
|                                |
+--------------------------------+

The 'justify' property has a special effect: if there are two or more layoutable children in the layout, the children will be laid out so that they fill the whole width of the container (or the full height for vertical layouts, or the full depth for shaft layouts). The amount of space between each pair of child will be kept equal, and will not be smaller than the value of the 'spacing' property. The following diagram shows justification when a gravity of 'bottom-right' is used:

+--------------------------------+
|                                |
|                                |
|+------+    +------+    +------+|
||Item 1|    |Item 2|    |Item 3||
|+------+    +------+    +------+|
+--------------------------------+

Overflow

By default, children are arranged in a single line. If the total length of all items exceeds the dimensions of the parent container in the layout direction, items are allowed to overflow outside of the container. This behaviour can be changed by setting the 'overflow' property.

Four different modes are available:

Ignore overflow. This is the default mode, where children are allowed to overflow outside of the container's bounds.
Overflow offscreen. In this mode, children that overflow outside of the container's bounds (and any subsequent children) are moved offscreen. Their size and position does not count towards the container's size when 'fit content' is used.
Wrap. In this mode, children that would overflow outside of the container's bounds are wrapped onto a new line. New lines are added and lines are allowed to overflow outside of the container (in the non-layout direction).
Wrap and overflow offscreen. In this mode, children that would overflow outside of the container's bounds are wrapped onto a new line. If a new line would overflow outside of the bounds of the container, that line (and subsequent lines) is moved offscreen.

When one of the wrap overflow modes is used, children may be arranged onto multiple lines. How these lines are arranged can be controlled with the 'line gravity' property. By default, lines are arranged using the same gravity as the layout itself. For example, given a linear layout set with a 'horizontal' orientation, a 'bottom-right' gravity, and enough items to fill two rows, the lines would be aligned to the bottom of the composition (with items within each individual lines being aligned to the right of the composition.)

Lines can also be aligned to the start of the container, the middle of the container, or the end of the container. A 'justify' mode is available to position the lines such that they take up the full height or width of the container, with the amount of space between each pair of lines being equal.

Warning: Using items configured with a minimum size and 'fill parent' in the layout direction results in undefined behaviour when the 'minimum size' of the items differs between items and items are being wrapped onto new rows. Using items configured with a minimum size and 'fill parent' in the layout direction works correctly when all items have the same minimum size.

#include <layout/YiLinearLayout.h>

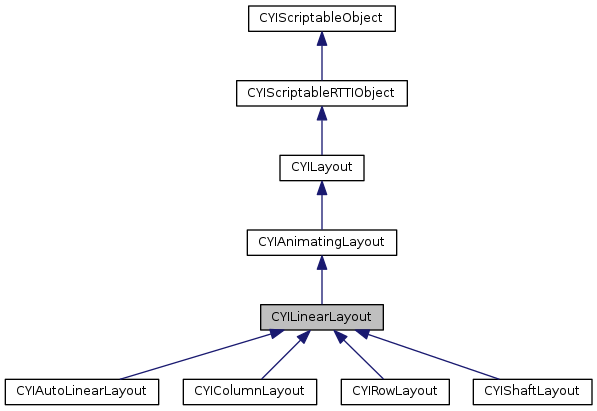

Inheritance diagram for CYILinearLayout:

[legend]

Public Types
enum	ORIENTATION { ORIENTATION_HORIZONTAL, ORIENTATION_VERTICAL, ORIENTATION_SHAFT }

enum	OVERFLOW_MODE { OVERFLOW_IGNORE, OVERFLOW_OFFSCREEN, OVERFLOW_WRAP, OVERFLOW_WRAP_AND_MOVE_OFFSCREEN }

enum	LINE_GRAVITY { LINE_GRAVITY_DEFAULT, LINE_GRAVITY_START, LINE_GRAVITY_MIDDLE, LINE_GRAVITY_END, LINE_GRAVITY_JUSTIFY }

Public Types inherited from CYILayout
enum	POSITIONING_MODE { SET_POSITION_DIRECTLY, DO_NOT_SET_POSITION_DIRECTLY }

typedef CYILayoutConfig::CubeOffset	Padding

Public Member Functions
	CYILinearLayout ()

virtual	~CYILinearLayout ()

void	SetSpacing (float fSpacing)

float	GetSpacing () const

void	SetJustify (bool bJustify)

bool	IsUsingJustify () const

void	SetOrientation (ORIENTATION eOrientation)

ORIENTATION	GetOrientation () const

void	SetOverflowMode (OVERFLOW_MODE eMode)

OVERFLOW_MODE	GetOverflowMode () const

void	SetLineGravity (LINE_GRAVITY eLineGravity)

LINE_GRAVITY	GetLineGravity () const

Public Member Functions inherited from CYIAnimatingLayout
	CYIAnimatingLayout ()

virtual	~CYIAnimatingLayout ()

void	DisableAnimationsOnNextLayout (bool bDisable=true)

void	DisableAnimationsOnNextLayoutFor (CYISceneNode *pChild, bool bDisable=true)

virtual void	ChildAdded (CYISceneNode *pChild) override

virtual void	ChildRemoved (CYISceneNode *pChild) override

virtual void	ChildVisibilityChanged (CYISceneNode *pChild) override

void	SetMovingTime (uint32_t uMovingTimeMs)

uint32_t	GetMovingTimeMs () const

void	SetSizingTime (uint32_t uSizingTimeMs)

uint32_t	GetSizingTimeMs () const

void	SetTimeInterpolator (std::unique_ptr< CYITimeInterpolator > pInterpolator)

CYITimeInterpolator *	GetTimeInterpolator ()

const CYITimeInterpolator *	GetTimeInterpolator () const

Public Member Functions inherited from CYILayout
	CYILayout ()

virtual	~CYILayout ()

void	AttachTo (CYISceneView *pView)

void	ConfigureFromAttachedNode ()

void	DetachFromNode ()

CYISceneNode *	GetAssociatedSceneNode () const

void	Measure (const CYISceneNode::MeasureSpec &widthSpec, const CYISceneNode::MeasureSpec &heightSpec, const CYISceneNode::MeasureSpec &depthSpec)

void	ApplyMeasurements ()

void	SetPositioningMode (POSITIONING_MODE ePositioningMode)

POSITIONING_MODE	GetPositioningMode () const

void	SetPadding (const Padding &padding)

const Padding &	GetPadding () const

void	SetUseReverseChildrenOrder (bool bUseReverseChildrenOrder)

bool	IsUsingReverseChildrenOrder () const

void	SetGravity (const glm::vec3 &vLayoutGravity)

void	SetGravity (CYILayoutConfig::GRAVITY eGravity)

const glm::vec3 &	GetGravity () const

Public Member Functions inherited from CYIScriptableRTTIObject
	CYIScriptableRTTIObject ()

virtual	~CYIScriptableRTTIObject ()

virtual const CYIRuntimeTypeInfo *	GetRuntimeTypeInfoForScriptObject () const override

Public Member Functions inherited from CYIScriptableObject
	CYIScriptableObject ()

	CYIScriptableObject (const CYIScriptableObject &other)

CYIScriptableObject &	operator= (const CYIScriptableObject &other)

virtual	~CYIScriptableObject ()

CYIBindingImplementation *	GetBindingImplementation () const

void	SetBindingImplementation (CYIBindingImplementation *pBindingImplementation)

Protected Member Functions
virtual void	Configure () override

virtual void	OnMeasure (const CYISceneNode::MeasureSpec &widthSpec, const CYISceneNode::MeasureSpec &heightSpec, const CYISceneNode::MeasureSpec &depthSpec) override

virtual void	OnApplyMeasurements () override

Protected Member Functions inherited from CYIAnimatingLayout
virtual void	OnMeasurementsApplied () override

virtual const CYIRuntimeTypeInfo &	GetLayoutConfigType () const override

virtual void	ApplyPosition (CYISceneNode *pChild, const glm::vec3 &vPosition) override

virtual void	ApplySize (CYISceneNode *pChild, const glm::vec3 &vSize) override

Protected Member Functions inherited from CYILayout
virtual void	OnSceneViewAttached ()

virtual void	OnMeasurementsCalculated (const CYISceneNode::MeasureSpec &widthSpec, const CYISceneNode::MeasureSpec &heightSpec, const CYISceneNode::MeasureSpec &depthSpec)

virtual std::unique_ptr< CYILayoutState >	CreateLayoutStateInstance () const

void	CreateLayoutObjectsFor (CYISceneNode *pNode) const

CYISceneNode *	GetChild (uint32_t uIndex) const

void	ApplyMeasurementsToBackgroundChildren ()

const Padding &	GetPaddingForChild (const CYISceneNode *pChild) const

Protected Member Functions inherited from CYIScriptableRTTIObject
virtual std::pair< const CYIRuntimeTypeInfo , const void >	GetRuntimeTypeInfoWithObject () const =0

Protected Attributes
float	m_fSpacing

bool	m_bJustify

ORIENTATION	m_eOrientation

OVERFLOW_MODE	m_eOverflowMode

LINE_GRAVITY	m_eLineGravity

Protected Attributes inherited from CYILayout
CYISceneView *	m_pNode
	In most cases, this variable is used as a node (thus the name m_pNode ) More...

Padding	m_padding

bool	m_bReverseChildrenOrder

glm::vec3	m_vGravity

POSITIONING_MODE	m_ePositioningMode

Additional Inherited Members
Static Public Member Functions inherited from CYILayout
static void	RegisterAllLayouts ()

static bool	IsLayoutable (const CYISceneNode *pNode)

static glm::vec3	GetDefaultSize (const CYISceneNode *pNode, const CYISceneNode::MeasureSpec &widthSpec, const CYISceneNode::MeasureSpec &heightSpec, const CYISceneNode::MeasureSpec &depthSpec)

static void	UpdateMeasuredSizeForFitContent (const CYISceneNode pNode, glm::vec3 pMeasuredSize, const glm::vec3 &contentSize, const Padding &padding, const CYISceneNode::MeasureSpec &widthSpec, const CYISceneNode::MeasureSpec &heightSpec, const CYISceneNode::MeasureSpec &depthSpec)

static void	UnscaleMeasureSpecs (const glm::vec3 &vScale, CYISceneNode::MeasureSpec pWidthSpec, CYISceneNode::MeasureSpec pHeightSpec, CYISceneNode::MeasureSpec *pDepthSpec)

static float	CalculateDimension (const CYISceneNode::MeasureSpec &spec, const CYILayoutConfig::SizeConstraint &constraint, float fCurrentValue)

Protected Types inherited from CYILayout
enum	DIMENSIONS { DIMENSIONS_NONE = 0x0, DIMENSIONS_X = 0x1, DIMENSIONS_Y = 0x2, DIMENSIONS_Z = 0x4, DIMENSIONS_ALL_BUT_X = DIMENSIONS_Y \| DIMENSIONS_Z, DIMENSIONS_ALL_BUT_Y = DIMENSIONS_X \| DIMENSIONS_Z, DIMENSIONS_ALL_BUT_Z = DIMENSIONS_X \| DIMENSIONS_Y, DIMENSIONS_ALL = DIMENSIONS_X \| DIMENSIONS_Y \| DIMENSIONS_Z }

Static Protected Member Functions inherited from CYILayout
static void	MeasureChildWithMargins (CYISceneNode *pChild, const CYISceneNode::MeasureSpec &parentWidthSpec, const CYISceneNode::MeasureSpec &parentHeightSpec, const CYISceneNode::MeasureSpec &parentDepthSpec, const Padding &padding)

static void	MeasureChildWithMargins (CYISceneNode *pChild, const CYISceneNode::MeasureSpec &parentWidthSpec, const CYISceneNode::MeasureSpec &parentHeightSpec, const CYISceneNode::MeasureSpec &parentDepthSpec, const Padding &padding, const glm::vec3 &vChildScale)

static CYISceneNode::MeasureSpec	CalculateChildMeasureSpec (const CYISceneNode::MeasureSpec &parentMeasureSpec, float fPadding, const CYILayoutConfig::SizeConstraint &childConstraint, float fChildScale)

static bool	UpdateMeasureSpecsForFitContent (const CYISceneNode pNode, CYISceneNode::MeasureSpec widthSpec, CYISceneNode::MeasureSpec heightSpec, CYISceneNode::MeasureSpec depthSpec)

static void	RemeasureChildrenForFillParent (const CYISceneNode *pNode, const glm::vec3 &vParentMeasuredSize, const Padding &padding, DIMENSIONS eDimensionsToRemeasure)

static glm::vec3	GetAdjustedPosition (const glm::vec3 &vDesiredTopLeftPosition, const CYISceneNode *pChild)

static glm::vec3	GetUnadjustedPosition (const glm::vec3 &vCurrentTopLeftPosition, const CYISceneNode *pChild)

static glm::vec3	GetAdjustedMeasuredSize (const CYISceneNode *pChild)

static glm::vec3	GetTopLeftPositionWithGravity (const glm::vec3 &vLayoutGravity, const glm::vec3 &vChildGravity, const glm::vec3 &vContainerTopLeft, const glm::vec3 &vContainerSize, const CYILayout::Padding &padding, const glm::vec3 &vChildSize, const CYILayoutConfig::Margin &margin, const glm::vec3 &vCurrentChildPosition)

static void	MeasureBackgroundChildren (CYISceneNode *pNode, const glm::vec3 &vSize)

Member Enumeration Documentation

enum CYILinearLayout::LINE_GRAVITY

Enumerator
LINE_GRAVITY_DEFAULT	Lines are aligned as indicated in the view's gravity value (in the non-layout direction)
LINE_GRAVITY_START	Lines are aligned at the 'start' of the view (e.g. top for horizontal orientations and left for vertical orientations)
LINE_GRAVITY_MIDDLE	Lines are aligned at the centre of the view.
LINE_GRAVITY_END	Lines are aligned at the 'end' of the view (e.g. bottom for horizontal orientations and right for vertical orientations)
LINE_GRAVITY_JUSTIFY	Lines are justified within the view (in the non-layout direction)

enum CYILinearLayout::ORIENTATION

Enumerator
ORIENTATION_HORIZONTAL	Align children side-by-side along the x axis.
ORIENTATION_VERTICAL	Align children along the y axis.
ORIENTATION_SHAFT	Align children on top of one another along the z axis.

enum CYILinearLayout::OVERFLOW_MODE

Enumerator
OVERFLOW_IGNORE	Items are laid out in a single line. No consideration is made for items that overflow the view in the layout direction.
OVERFLOW_OFFSCREEN	Items are laid out in a single line. Items that overflow the view in the layout direction are moved offscreen.
OVERFLOW_WRAP	Items are laid out in one or more lines. Items that overflow the view in the layout direction are wrapped onto additional lines. No consideration is made for items that overflow the view in the non-layout direction.
OVERFLOW_WRAP_AND_MOVE_OFFSCREEN	Items are laid out in one or more lines. Items that overflow the view in the layout direction are wrapped onto additional lines. Items that overflow the view in the non-layout direction are moved offscreen.

Constructor & Destructor Documentation

CYILinearLayout::CYILinearLayout ( )

virtual CYILinearLayout::~CYILinearLayout ( )

virtual

Member Function Documentation

virtual void CYILinearLayout::Configure ( )

overrideprotectedvirtual

Extracts relevant properties the associated scene node and configures this layout with said properties.

Note: Subclasses should override this method if they have custom configuration values. Remember to call the parent Configure function.

Reimplemented from CYIAnimatingLayout.

Reimplemented in CYIAutoLinearLayout, CYIColumnLayout, CYIRowLayout, and CYIShaftLayout.

LINE_GRAVITY CYILinearLayout::GetLineGravity ( ) const

See also: CYILinearLayout::SetLineGravity(LINE_GRAVITY)

ORIENTATION CYILinearLayout::GetOrientation ( ) const

See also: CYILinearLayout::SetOrientation(ORIENTATION)

OVERFLOW_MODE CYILinearLayout::GetOverflowMode ( ) const

See also: CYILinearLayout::SetOverflowMode(OVERFLOW_MODE)

float CYILinearLayout::GetSpacing ( ) const

See also: CYILinearLayout::SetSpacing(float)

bool CYILinearLayout::IsUsingJustify ( ) const

See also: CYILinearLayout::SetSpacing(bool)

virtual void CYILinearLayout::OnApplyMeasurements ( )

overrideprotectedvirtual

Applies the measured sizes of the associate scene node's children.

Warning: Implementations of this function are required to ensure that the ApplyMeasurements function of each child node is called at least once, even if those children are hidden or are non-laid-out.

Note: Typically, if OnApplyMeasurements is overridden then OnMeasure must also be overridden.

See also: CYILayout::ApplyMeasurements

Implements CYILayout.

virtual void CYILinearLayout::OnMeasure	(	const CYISceneNode::MeasureSpec &	widthSpec,
		const CYISceneNode::MeasureSpec &	heightSpec,
		const CYISceneNode::MeasureSpec &	depthSpec
	)

overrideprotectedvirtual

Measures the associated scene node, considering its layout configuration constraints (if available) and the provided measure specifications.

Warning: Implementations of this function are required to ensure that the Measure function of each child scene node is called at least once, even if those children are hidden or are non-laid-out.

Note: Typically, if OnMeasure is overridden then OnApplyMeasurements must also be overridden.

See also: CYILayout::Measure

Implements CYILayout.

Reimplemented in CYIAutoLinearLayout.

void CYILinearLayout::SetJustify ( bool bJustify )

Enables or disables justification of laid-out items. By default, justification is disabled.

If enabled, laid-out items will fill the full width (or the full height for vertical layouts, or the full depth for shaft layouts) of the container. The amount of space between each pair of child will be kept equal, and will not be smaller than the value of the 'spacing' property.

void CYILinearLayout::SetLineGravity ( LINE_GRAVITY eLineGravity )

Sets the line gravity to eLineGravity.

The line gravity determines how individual lines get aligned in the non-layout direction. The default line gravity is 'default', which indicates that the gravity from the layout itself should be used as the line gravity.

Note: The line gravity has no effect when the overflow mode is CYILinearLayout::OVERFLOW_IGNORE

void CYILinearLayout::SetOrientation ( ORIENTATION eOrientation )

Sets the orientation of this layout. The default orientation is horizontal.

Note: Alternatively, the layout classes CYIRowLayout, CYIColumnLayout and CYIShaftLayout can be used. These classes have their orientation pre-set to Horizontal, Vertical and Shaft respectively.

See also: CYILinearLayout::ORIENTATION

void CYILinearLayout::SetOverflowMode ( OVERFLOW_MODE eMode )

Sets the overflow mode to eMode. The default overflow mode is CYILinearLayout::OVERFLOW_IGNORE.

The overflow mode is used to determine how items should be aligned when the layout runs out of room in the layout direction. For more details, see CYILinearLayout.

void CYILinearLayout::SetSpacing ( float fSpacing )

Sets the spacing value to fSpacing. The default spacing is 10.0f.

The spacing is extra 'space' that will be added between laid-out items by the linear layout.

Note: Negative values are supported, and will result in the children overlapping each other.

Member Data Documentation

bool CYILinearLayout::m_bJustify

protected

LINE_GRAVITY CYILinearLayout::m_eLineGravity

protected

ORIENTATION CYILinearLayout::m_eOrientation

protected

OVERFLOW_MODE CYILinearLayout::m_eOverflowMode

protected

float CYILinearLayout::m_fSpacing

protected

The documentation for this class was generated from the following file:

layout/YiLinearLayout.h

Detailed Description

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
