Detailed Description

A layout that positions items in a grid.

This layout divides the available space into rows and columns, forming a set of grid cells. Each child is then positioned within one of those cells.

Container View Template Comments Specification

These values are applied to the comment field of the container composition. All properties are optional.

Label	Default value	Accepted values	Description
spacing	10.0	floating point	The amount of space left between each row and between each column.
rows	0	positive integers	The number of rows that the grid should have. If 0, the rows count is determined from the number of layoutable children.
columns	0	positive integers	The number of columns that the grid should have. If 0, the columns count is determined from the number of layoutable children.
uniform-rows	false	true, false	When true, all rows will have the same height. When false, rows can be of variable height.
uniform-columns	false	true, false	When true, all columns will have the same width. When false, columns can be of variable width.
table-cells	false	true, false	When true, all cells within a given row have the same height, and all cells within a given column have the same height. When false, cells can have differing heights within a single row, and can have differing widths within a single column.
fill-order	automatic	special*	The order in which cells are filled in the grid. By default, the cells are filled row-by-row, starting in the top-left corner (except when there is a fixed number of rows). See the Fill Order section for details.
pack-mode	tetris	wrap, tetris, first	The algorithm used to try and avoid 'holes' in the grid when dealing with non-1x1 items. See the Pack Mode section for details.

The parent layout class may define more properties that can be used.

See also: CYIAnimatingLayout

Children View Template Comments Specification

These values are applied to the comment field of the to-be-laid-out children. All properties are optional.

Label	Default value	Accepted values	Description
cell-width	1	non-0 positive integers	The number of grid cells that this child takes up, horizontally, in the grid.
cell-height	1	non-0 positive integers	The number of grid cells that this child takes up, vertically, in the grid.

The parent layout class may define more properties that can be used.

See also: CYIAnimatingLayout

Rows and Columns

The number of rows and columns in the grid layout can be manually specified. If the total number of layoutable children exceeds the number of grid cells, the remaining children will overflow out of the grid.

The grid layout can automatically determine the rows and columns count based on the number of layoutable children. This is done if either the configured rows or configured columns is 0 (which is the default). When only one of the rows or columns count is configured, the other value is determined by a simple division. However, when both the rows and columns counts are non-specified, the grid layout calculates rows and columns counts that approximates the aspect ratio of the incoming measure width/height. If the layout is configured to 'fit content' for either the width or height, the grid layout assumes an aspect ratio of 1:1 (e.g. same count of rows and columns).

By default, the grid layout automatically determines the rows' widths and the columns' heights based on the size of the items they contain. If this is undesirable, the uniform-rows and uniform-columns template properties can be used to force the grid layout to make all rows have the same height, or make all columns have the same width.

The 'table cells' mode can be used to change the size of the cells within a grid layout. When enabled, it causes cells within a given row to all be of the same height, and causes cells within a given column to all be of the same width. Coupled with a background node on the laid-out children, this mode results in a table-like arrangement of cells. Note that when this mode is enabled, the normal layout behaviour of the children of the grid layout is overridden, which may result in some of the layout properties set on those children not being respected.

Non-1x1 Items

By default, all children in the grid are assumed to occupy one grid cell, no matter how large the child may be. In order to increase the flexibility of the grid layout, the children can be configured with specific cell width and cell height. The total number of cells taken in the grid is expressed as (cell width * cell height). Children cannot take 0 grid cells – the cell width and cell height both cannot be smaller than 1.

Note that when using non-1x1 items, 'holes' can result in the arranged children. The use of the various Pack Modes can alleviate this by allowing reordering of children to try and fill the gaps.

Fill Order

The fill order of the grid layout determines the order in which cells are filled in the grid layout. The following table details the available fill orders for the 'fill-order' template comment (and for the FILL_ORDER enum). The table also provides a sample fill order, given 7 layoutable children (numbered 1 to 7) and the following grid positions:

+-----+-----+-----+
|  A  |  B  |  C  |
+-----+-----+-----+
|  D  |  E  |  F  |
+-----+-----+-----+
|  G  |  H  |  I  |
+-----+-----+-----+

Enum Value	Template Comment Values	Description	Sample Fill Order
CYIGridLayout::TOP_LEFT_TO_RIGHT	top-left-to-right	Fills the grid row-by-row, starting in the top-left corner.	ABCDEFG
CYIGridLayout::LEFT_TOP_TO_BOTTOM	left-top-to-bottom	Fills the grid column-by-column, starting in the top-left corner.	ADGBEHC
CYIGridLayout::TOP_RIGHT_TO_LEFT	top-right-to-left	Fills the grid row-by-row, starting in the top-right corner.	CBAFEDI
CYIGridLayout::RIGHT_TOP_TO_BOTTOM	right-top-to-bottom	Fills the grid column-by-column, starting in the top-right corner.	CFIBEHA
CYIGridLayout::BOTTOM_LEFT_TO_RIGHT	bottom-left-to-right	Fills the grid row-by-row, starting in the bottom-left corner.	GHIDEFA
CYIGridLayout::LEFT_BOTTOM_TO_TOP	left-bottom-to-top	Fills the grid column-by-column, starting in the bottom-left corner.	GDAHEBI
CYIGridLayout::BOTTOM_RIGHT_TO_LEFT	bottom-right-to-left	Fills the grid row-by-row, starting in the bottom-right corner.	IHGFEDC
CYIGridLayout::RIGHT_BOTTOM_TO_TOP	right-bottom-to-top	Fills the grid column-by-column, starting in bottom-right corner.	IFCHEBG
CYIGridLayout::AUTOMATIC	auto, automatic	Automatically picks between CYIGridLayout::TOP_LEFT_TO_RIGHT and CYIGridLayout::LEFT_TOP_TO_BOTTOM. If the rows count is configured and the columns count is not, CYIGridLayout::LEFT_TOP_TO_BOTTOM is used. Otherwise, CYIGridLayout::TOP_LEFT_TO_RIGHT is used.	N/A

Pack Mode

The pack mode of the grid determines how non-1x1 grid items are arranged in the grid. The following table lists the available pack modes, along with a short description of each.

Enum Value	Template Comment Values	Description
CYIGridLayout::WRAP	wrap	Fills the grid row-by-row (or column-by-column, depending on the fill order), wrapping to the next line when a line is full.
CYIGridLayout::TETRIS	tetris, masonry	Places each child in the first column (counting from the left) that can fit the child while minimizing the y position.
CYIGridLayout::FIRST	first, packery	Places each child in the first position (counting from the top-left) which can fit the child.

Note: The selected pack mode has no effect when all children have cell dimensions of 1x1.

For the following detailed descriptions of pack modes, consider the following layoutable children:

       +---+             +---+
+---+  |   |  +-------+  |   |  +---+ +---+
| 1 |  | 2 |  |   3   |  | 4 |  | 5 | | 6 |
+---+  |   |  +-------+  |   |  +---+ +---+
 1x1   +---+     2x1     +---+   1x1   1x1
        1x2               1x2

As an example, these layoutable children will be laid-out in a 3-column grid with each pack mode. In the diagrams, X represents an empty cell in the grid.

'Wrap' Pack Mode

+---+---+---+
| 1 |   |XXX|
+---+ 2 |XXX|
|XXX|   |XXX|
+---+---+---+
|   3   |   |
+-------+ 4 |
|XXXXXXX|   |
+---+---+---+
| 5 | 6 |XXX|
+---+-------+

In this pack mode, rows are filled one by one, with the x position in each row being strictly incremented. Holes/gaps are common when using this packing mode. Despite this, this packing mode guarantees that the ordering of children is respected.

'Tetris' Pack Mode

+---+---+---+
| 1 |   |   |
+---+ 2 | 4 |
|XXX|   |   |
+---+---+---+
|   3   | 5 |
+---+---+---+
| 6 |XXXXXXX|
+---+-------+

In this pack mode, children are placed in the 'first' column that can fit them, while minimizing the y position of those children. Holes are still possible, but are more rare. The ordering of children is roughly respected, but out-of-order children can occur. For example, look at the children #2 and #4 in the previous diagram.

This pack mode is similar to the 'masonry' packing algorithm used by some web frameworks.

'First' Pack Method

+---+---+---+
| 1 |   |   |
+---+ 2 | 4 |
| 5 |   |   |
+---+---+---+
|   3   | 6 |
+---+---+---+

In this pack mode, children are placed at the first cell that can fit them. This mode attempts to backfill gaps with layoutable children. This comes at a cost: the children can be greatly out-of-order.

This pack mode is similar to the 'packery' packing algorithm used by some web frameworks.

Warning: This pack mode can be computationally intensive, with a worst-case complexity of O(n^2).

#include <layout/YiGridLayout.h>

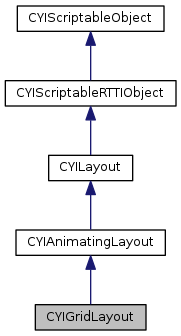

Inheritance diagram for CYIGridLayout:

[legend]

Public Types
enum	FILL_ORDER { AUTOMATIC = 0, TOP_LEFT_TO_RIGHT, LEFT_TOP_TO_BOTTOM, TOP_RIGHT_TO_LEFT, RIGHT_TOP_TO_BOTTOM, BOTTOM_LEFT_TO_RIGHT, LEFT_BOTTOM_TO_TOP, BOTTOM_RIGHT_TO_LEFT, RIGHT_BOTTOM_TO_TOP }

enum	PACK_MODE { WRAP, TETRIS, FIRST }

Public Types inherited from CYILayout
enum	POSITIONING_MODE { SET_POSITION_DIRECTLY, DO_NOT_SET_POSITION_DIRECTLY }

typedef CYILayoutConfig::CubeOffset	Padding

Public Member Functions
	CYIGridLayout ()

virtual	~CYIGridLayout ()

void	SetSpacing (float fSpacing)

float	GetSpacing () const

void	SetRowsCount (uint32_t uRows)

uint32_t	GetRowsCount () const

void	SetColumnsCount (uint32_t uColumns)

uint32_t	GetColumnsCount () const

void	SetUseUniformRows (bool bUseUniformRows)

bool	IsUsingUniformRows () const

void	SetUseUniformColumns (bool bUseUniformColumns)

bool	IsUsingUniformColumns () const

void	SetUseTableCells (bool bUseTableCells)

bool	IsUsingTableCells () const

void	SetFillOrder (FILL_ORDER eOrder)

FILL_ORDER	GetFillOrder () const

void	SetPackMode (PACK_MODE eMode)

PACK_MODE	GetPackMode () const

Public Member Functions inherited from CYIAnimatingLayout
	CYIAnimatingLayout ()

virtual	~CYIAnimatingLayout ()

void	DisableAnimationsOnNextLayout (bool bDisable=true)

void	DisableAnimationsOnNextLayoutFor (CYISceneNode *pChild, bool bDisable=true)

virtual void	ChildAdded (CYISceneNode *pChild) override

virtual void	ChildRemoved (CYISceneNode *pChild) override

virtual void	ChildVisibilityChanged (CYISceneNode *pChild) override

void	SetMovingTime (uint32_t uMovingTimeMs)

uint32_t	GetMovingTimeMs () const

void	SetSizingTime (uint32_t uSizingTimeMs)

uint32_t	GetSizingTimeMs () const

void	SetTimeInterpolator (std::unique_ptr< CYITimeInterpolator > pInterpolator)

CYITimeInterpolator *	GetTimeInterpolator ()

const CYITimeInterpolator *	GetTimeInterpolator () const

Public Member Functions inherited from CYILayout
	CYILayout ()

virtual	~CYILayout ()

void	AttachTo (CYISceneView *pView)

void	ConfigureFromAttachedNode ()

void	DetachFromNode ()

CYISceneNode *	GetAssociatedSceneNode () const

void	Measure (const CYISceneNode::MeasureSpec &widthSpec, const CYISceneNode::MeasureSpec &heightSpec, const CYISceneNode::MeasureSpec &depthSpec)

void	ApplyMeasurements ()

void	SetPositioningMode (POSITIONING_MODE ePositioningMode)

POSITIONING_MODE	GetPositioningMode () const

void	SetPadding (const Padding &padding)

const Padding &	GetPadding () const

void	SetUseReverseChildrenOrder (bool bUseReverseChildrenOrder)

bool	IsUsingReverseChildrenOrder () const

void	SetGravity (const glm::vec3 &vLayoutGravity)

void	SetGravity (CYILayoutConfig::GRAVITY eGravity)

const glm::vec3 &	GetGravity () const

Public Member Functions inherited from CYIScriptableRTTIObject
	CYIScriptableRTTIObject ()

virtual	~CYIScriptableRTTIObject ()

virtual const CYIRuntimeTypeInfo *	GetRuntimeTypeInfoForScriptObject () const override

Public Member Functions inherited from CYIScriptableObject
	CYIScriptableObject ()

	CYIScriptableObject (const CYIScriptableObject &other)

CYIScriptableObject &	operator= (const CYIScriptableObject &other)

virtual	~CYIScriptableObject ()

CYIBindingImplementation *	GetBindingImplementation () const

void	SetBindingImplementation (CYIBindingImplementation *pBindingImplementation)

Protected Member Functions
virtual void	Configure () override

virtual void	OnMeasure (const CYISceneNode::MeasureSpec &widthSpec, const CYISceneNode::MeasureSpec &heightSpec, const CYISceneNode::MeasureSpec &depthSpec) override

virtual void	OnApplyMeasurements () override

virtual const CYIRuntimeTypeInfo &	GetLayoutConfigType () const override

Protected Member Functions inherited from CYIAnimatingLayout
virtual void	OnMeasurementsApplied () override

virtual void	ApplyPosition (CYISceneNode *pChild, const glm::vec3 &vPosition) override

virtual void	ApplySize (CYISceneNode *pChild, const glm::vec3 &vSize) override

Protected Member Functions inherited from CYILayout
virtual void	OnSceneViewAttached ()

virtual void	OnMeasurementsCalculated (const CYISceneNode::MeasureSpec &widthSpec, const CYISceneNode::MeasureSpec &heightSpec, const CYISceneNode::MeasureSpec &depthSpec)

virtual std::unique_ptr< CYILayoutState >	CreateLayoutStateInstance () const

void	CreateLayoutObjectsFor (CYISceneNode *pNode) const

CYISceneNode *	GetChild (uint32_t uIndex) const

void	ApplyMeasurementsToBackgroundChildren ()

const Padding &	GetPaddingForChild (const CYISceneNode *pChild) const

Protected Member Functions inherited from CYIScriptableRTTIObject
virtual std::pair< const CYIRuntimeTypeInfo , const void >	GetRuntimeTypeInfoWithObject () const =0

Protected Attributes
float	m_fSpacing

uint32_t	m_uRows

uint32_t	m_uColumns

bool	m_bUniformRows

bool	m_bUniformColumns

bool	m_bTableCells

FILL_ORDER	m_eFillOrder

PACK_MODE	m_ePackMode

Protected Attributes inherited from CYILayout
CYISceneView *	m_pNode
	In most cases, this variable is used as a node (thus the name m_pNode ) More...

Padding	m_padding

bool	m_bReverseChildrenOrder

glm::vec3	m_vGravity

POSITIONING_MODE	m_ePositioningMode

Additional Inherited Members
Static Public Member Functions inherited from CYILayout
static void	RegisterAllLayouts ()

static bool	IsLayoutable (const CYISceneNode *pNode)

static glm::vec3	GetDefaultSize (const CYISceneNode *pNode, const CYISceneNode::MeasureSpec &widthSpec, const CYISceneNode::MeasureSpec &heightSpec, const CYISceneNode::MeasureSpec &depthSpec)

static void	UpdateMeasuredSizeForFitContent (const CYISceneNode pNode, glm::vec3 pMeasuredSize, const glm::vec3 &contentSize, const Padding &padding, const CYISceneNode::MeasureSpec &widthSpec, const CYISceneNode::MeasureSpec &heightSpec, const CYISceneNode::MeasureSpec &depthSpec)

static void	UnscaleMeasureSpecs (const glm::vec3 &vScale, CYISceneNode::MeasureSpec pWidthSpec, CYISceneNode::MeasureSpec pHeightSpec, CYISceneNode::MeasureSpec *pDepthSpec)

static float	CalculateDimension (const CYISceneNode::MeasureSpec &spec, const CYILayoutConfig::SizeConstraint &constraint, float fCurrentValue)

Protected Types inherited from CYILayout
enum	DIMENSIONS { DIMENSIONS_NONE = 0x0, DIMENSIONS_X = 0x1, DIMENSIONS_Y = 0x2, DIMENSIONS_Z = 0x4, DIMENSIONS_ALL_BUT_X = DIMENSIONS_Y \| DIMENSIONS_Z, DIMENSIONS_ALL_BUT_Y = DIMENSIONS_X \| DIMENSIONS_Z, DIMENSIONS_ALL_BUT_Z = DIMENSIONS_X \| DIMENSIONS_Y, DIMENSIONS_ALL = DIMENSIONS_X \| DIMENSIONS_Y \| DIMENSIONS_Z }

Static Protected Member Functions inherited from CYILayout
static void	MeasureChildWithMargins (CYISceneNode *pChild, const CYISceneNode::MeasureSpec &parentWidthSpec, const CYISceneNode::MeasureSpec &parentHeightSpec, const CYISceneNode::MeasureSpec &parentDepthSpec, const Padding &padding)

static void	MeasureChildWithMargins (CYISceneNode *pChild, const CYISceneNode::MeasureSpec &parentWidthSpec, const CYISceneNode::MeasureSpec &parentHeightSpec, const CYISceneNode::MeasureSpec &parentDepthSpec, const Padding &padding, const glm::vec3 &vChildScale)

static CYISceneNode::MeasureSpec	CalculateChildMeasureSpec (const CYISceneNode::MeasureSpec &parentMeasureSpec, float fPadding, const CYILayoutConfig::SizeConstraint &childConstraint, float fChildScale)

static bool	UpdateMeasureSpecsForFitContent (const CYISceneNode pNode, CYISceneNode::MeasureSpec widthSpec, CYISceneNode::MeasureSpec heightSpec, CYISceneNode::MeasureSpec depthSpec)

static void	RemeasureChildrenForFillParent (const CYISceneNode *pNode, const glm::vec3 &vParentMeasuredSize, const Padding &padding, DIMENSIONS eDimensionsToRemeasure)

static glm::vec3	GetAdjustedPosition (const glm::vec3 &vDesiredTopLeftPosition, const CYISceneNode *pChild)

static glm::vec3	GetUnadjustedPosition (const glm::vec3 &vCurrentTopLeftPosition, const CYISceneNode *pChild)

static glm::vec3	GetAdjustedMeasuredSize (const CYISceneNode *pChild)

static glm::vec3	GetTopLeftPositionWithGravity (const glm::vec3 &vLayoutGravity, const glm::vec3 &vChildGravity, const glm::vec3 &vContainerTopLeft, const glm::vec3 &vContainerSize, const CYILayout::Padding &padding, const glm::vec3 &vChildSize, const CYILayoutConfig::Margin &margin, const glm::vec3 &vCurrentChildPosition)

static void	MeasureBackgroundChildren (CYISceneNode *pNode, const glm::vec3 &vSize)

Member Enumeration Documentation

enum CYIGridLayout::FILL_ORDER

The fill order to use when placing layoutable items in the grid.

See also: CYIGridLayout

Enumerator
AUTOMATIC	Use CYIGridLayout::LEFT_TOP_TO_BOTTOM when the number of rows is fixed, use CYIGridLayout::TOP_LEFT_TO_RIGHT otherwise.
TOP_LEFT_TO_RIGHT	Start in top-left corner and fill row-by-row.
LEFT_TOP_TO_BOTTOM	Start in top-left corner and fill column-by-column.
TOP_RIGHT_TO_LEFT	Start in top-right corner and fill row-by-row.
RIGHT_TOP_TO_BOTTOM	Start in top-right corner and fill column-by-column.
BOTTOM_LEFT_TO_RIGHT	Start in bottom-left corner and fill row-by-row.
LEFT_BOTTOM_TO_TOP	Start in bottom-left corner and fill column-by-column.
BOTTOM_RIGHT_TO_LEFT	Start in bottom-right corner and fill row-by-row.
RIGHT_BOTTOM_TO_TOP	Start in bottom-right corner and fill column-by-column.

enum CYIGridLayout::PACK_MODE

The pack mode used when placing layoutable items in the grid. The pack mode is determines how non-1x1 items are laid out in the grid. Choosing the right pack mode can reduce gaps in the laid-out items.

Note: While the individual enum descriptions don't mention it, columns and rows are swapped when the fill order is to fill items column-by-column.

See also: CYIGridLayout

Enumerator
WRAP	Places items row-by-row, wrapping to another row when the row is full. Leaves gaps when non-1x1 items are encountered.
TETRIS	Places items in the next position which minimizes its y position. Reduces gaps when non-1x1 items are encountered, at the cost of reordering some items.
FIRST	Places items in the first position that can fit them. Significantly reduces gaps when non-1x1 items are encountered, at the cost of reordering some items.

Constructor & Destructor Documentation

CYIGridLayout::CYIGridLayout ( )

virtual CYIGridLayout::~CYIGridLayout ( )

virtual

Member Function Documentation

virtual void CYIGridLayout::Configure ( )

overrideprotectedvirtual

Extracts relevant properties the associated scene node and configures this layout with said properties.

Note: Subclasses should override this method if they have custom configuration values. Remember to call the parent Configure function.

Reimplemented from CYIAnimatingLayout.

uint32_t CYIGridLayout::GetColumnsCount ( ) const

See also: SetColumnsCount

FILL_ORDER CYIGridLayout::GetFillOrder ( ) const

See also: SetFillOrder

virtual const CYIRuntimeTypeInfo& CYIGridLayout::GetLayoutConfigType ( ) const

overrideprotectedvirtual

Returns the type of layout config objects used by this layout.

Note: Subclasses should override this method if the laid-out objects can have custom configuration values. Remember to base the new class on the parent class's CYILayoutConfig class.

Reimplemented from CYIAnimatingLayout.

PACK_MODE CYIGridLayout::GetPackMode ( ) const

See also: SetPackMode

uint32_t CYIGridLayout::GetRowsCount ( ) const

See also: SetRowsCount

float CYIGridLayout::GetSpacing ( ) const

See also: SetSpacing

bool CYIGridLayout::IsUsingTableCells ( ) const

See also: SetUseTableCells

bool CYIGridLayout::IsUsingUniformColumns ( ) const

See also: SetUseUniformColumns

bool CYIGridLayout::IsUsingUniformRows ( ) const

See also: SetUseUniformRows

virtual void CYIGridLayout::OnApplyMeasurements ( )

overrideprotectedvirtual

Applies the measured sizes of the associate scene node's children.

Warning: Implementations of this function are required to ensure that the ApplyMeasurements function of each child node is called at least once, even if those children are hidden or are non-laid-out.

Note: Typically, if OnApplyMeasurements is overridden then OnMeasure must also be overridden.

See also: CYILayout::ApplyMeasurements

Implements CYILayout.

virtual void CYIGridLayout::OnMeasure	(	const CYISceneNode::MeasureSpec &	widthSpec,
		const CYISceneNode::MeasureSpec &	heightSpec,
		const CYISceneNode::MeasureSpec &	depthSpec
	)

overrideprotectedvirtual

Measures the associated scene node, considering its layout configuration constraints (if available) and the provided measure specifications.

Warning: Implementations of this function are required to ensure that the Measure function of each child scene node is called at least once, even if those children are hidden or are non-laid-out.

Note: Typically, if OnMeasure is overridden then OnApplyMeasurements must also be overridden.

See also: CYILayout::Measure

Implements CYILayout.

void CYIGridLayout::SetColumnsCount ( uint32_t uColumns )

Sets the number of columns that the grid has to uColumns. If 0, the number of columns is automatically determined from the number of layoutable items and the configured number of rows. By default, the columns count is determined automatically.

void CYIGridLayout::SetFillOrder ( FILL_ORDER eOrder )

Sets the fill order to eOrder. The fill order determines the order in which cells in the grid are filled. By default, the fill order is CYIGridLayout::AUTOMATIC.

See also: CYIGridLayout

void CYIGridLayout::SetPackMode ( PACK_MODE eMode )

Sets the pack mode to eMode. The pack mode determines how non-1x1 items are arranged in the grid. By default, the pack mode is CYIGridLayout::TETRIS.

void CYIGridLayout::SetRowsCount ( uint32_t uRows )

Sets the number of rows that the grid has to uRows. If 0, the number of rows is automatically determined from the number of layoutable items and the configured number of columns. By default, the rows count is determined automatically.

void CYIGridLayout::SetSpacing ( float fSpacing )

Sets the spacing value to fSpacing. By default, the spacing is 10.0.

The spacing is extra 'space' that will be added between rows and between columns.

Note: Negative values are supported, and will result in the children overlapping each other.

void CYIGridLayout::SetUseTableCells ( bool bUseTableCells )

When bUseTableCells is true, indicates that all cells within a given row should have the same height, and that all cells within a given column should have the same width. This setting can be used to create a grid of minimal size (using 'fit-content' on each cell), but with their background expanding to fill the whole rows/columns. By default, cells can have non-table cell sizes.

void CYIGridLayout::SetUseUniformColumns ( bool bUseUniformColumns )

When bUseUniformColumns is true, indicates that all columns in the grid should be of the same width. By default, columns can have variable widths.

void CYIGridLayout::SetUseUniformRows ( bool bUseUniformRows )

When bUseUniformRows is true, indicates that all rows in the grid should be of the same height. By default, rows can have variable heights.

Member Data Documentation

bool CYIGridLayout::m_bTableCells

protected

bool CYIGridLayout::m_bUniformColumns

protected

bool CYIGridLayout::m_bUniformRows

protected

FILL_ORDER CYIGridLayout::m_eFillOrder

protected

PACK_MODE CYIGridLayout::m_ePackMode

protected

float CYIGridLayout::m_fSpacing

protected

uint32_t CYIGridLayout::m_uColumns

protected

uint32_t CYIGridLayout::m_uRows

protected

The documentation for this class was generated from the following file:

layout/YiGridLayout.h

Detailed Description

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
