Detailed Description

A texture asset representing an image which will be loaded into the GPU.

Unlike CYIAssetTexture which makes use of a CYIBitmap, this asset has its raw data set directly.

See also: CYIAssetManager; CYIAssetTexture

#include <asset/YiAssetTextureRaw.h>

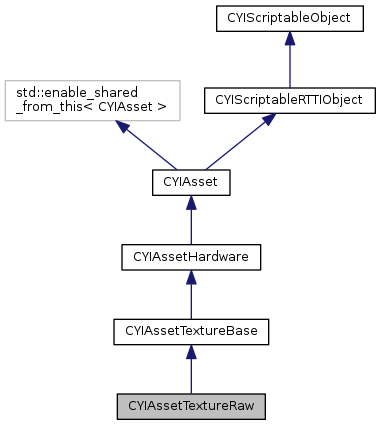

Inheritance diagram for CYIAssetTextureRaw:

[legend]

Public Types
enum	YI_MEMORY_ACCESS { YI_MEMORY_PRIVATE, YI_MEMORY_SHARED, YI_MEMORY_DIRECT, YI_MEMORY_VOLATILE }

Public Types inherited from CYIAssetTextureBase
enum	YI_MIN_MAG_FILTER { YI_LINEAR, YI_NEAREST }

enum	YI_TEXTURE_WRAP { YI_CLAMP_TO_EDGE, YI_MIRROR, YI_REPEAT }

enum	USAGE { USAGE_STATIC, USAGE_DYNAMIC, USAGE_RENDER_TARGET }

Public Types inherited from CYIAssetHardware
enum	RETENTION_POLICY { RETAIN = 0, UNLOAD }
	The YI_HW_ASSET_RETENTION_POLICY enum specifies the retention policy of static hardware assets from the CPU memory once they are loaded onto the GPU. It is globally configurable, where new CYIAssetHardware will be making use of it and the can also change directly per assets. Be aware that on some platform, it is best to leave the assets retained on the CPU side when the platform lifecycle has the ability to destroy the graphic context while the app still runs, giving You.i Engine the ability to re-load every assets back onto GPU memory really fast. A good example of such platform would be Android. More...

Public Types inherited from CYIAsset
enum	PATH_TYPE { PATH_ABSOLUTE = 0, PATH_RELATIVE }

Public Member Functions
	CYIAssetTextureRaw (USAGE usage=USAGE_STATIC, IYIMaterialFactory::YI_COLORSPACE colorSpace=IYIMaterialFactory::YI_RGBA8888)

virtual	~CYIAssetTextureRaw ()

void	SetData (uint8_t *pData, int32_t nWidth, int32_t nHeight, YI_MEMORY_ACCESS memoryAccess)

void	SetData (uint8_t *pData, int32_t nWidth, int32_t nHeight, int32_t nPitch, YI_MEMORY_ACCESS memoryAccess)

const uint8_t *	GetData () const

uint8_t *	GetData ()

YI_MEMORY_ACCESS	GetMemoryAccess () const

int32_t	GetPitch () const

void	ClearPixelData ()

Public Member Functions inherited from CYIAssetTextureBase
	CYIAssetTextureBase (USAGE usage=USAGE_STATIC)

virtual	~CYIAssetTextureBase ()

void	AddDirtyRegion (const YI_RECT_REL &dirtyRectangle)

void	ClearDirtyRegions ()

const std::vector< YI_RECT_REL > &	GetDirtyRegions () const

const YI_TEXTURE_CONFIG &	GetConfiguration () const

virtual int32_t	GetWidth () const

virtual int32_t	GetHeight () const

IYIMaterialFactory::YI_COLORSPACE	GetColorSpace () const

void	SetConfiguration (const YI_TEXTURE_CONFIG &config)

void	SetMinificationFilter (YI_MIN_MAG_FILTER minFilter=YI_LINEAR, YI_MIN_MAG_FILTER magFilter=YI_LINEAR)

void	SetMipmappingEnabled (bool bEnable)

bool	IsMipmappingEnabled () const

void	SetTextureWrap (YI_TEXTURE_WRAP wrapS=YI_CLAMP_TO_EDGE, YI_TEXTURE_WRAP wrapT=YI_CLAMP_TO_EDGE)

virtual bool	HasExtendedDimensions () const

USAGE	GetUsage () const

Public Member Functions inherited from CYIAssetHardware
	CYIAssetHardware ()

virtual	~CYIAssetHardware ()

virtual bool	RequestHardwareLoad ()

virtual bool	RequestHardwareUnload ()

virtual bool	RequestInvalidate ()

virtual bool	RequestRestore ()

virtual bool	Prepare () override

std::shared_ptr< IYIGPUObject >	GetGPUObject () const

bool	IsLoadedOnGPU () const

RETENTION_POLICY	GetRetentionPolicy () const

void	SetRetentionPolicy (RETENTION_POLICY ePolicy)

Public Member Functions inherited from CYIAsset
virtual	~CYIAsset ()

const CYIString &	GetPath () const

CYIAssetLoadParams *	GetLoadParameters () const

bool	SetName (const CYIString &name)

const CYIString &	GetName () const

bool	Load ()

void	Unload ()

bool	IsLoaded () const

bool	Equals (const std::shared_ptr< CYIAsset > &pAsset)

Public Member Functions inherited from CYIScriptableRTTIObject
	CYIScriptableRTTIObject ()

virtual	~CYIScriptableRTTIObject ()

virtual const CYIRuntimeTypeInfo *	GetRuntimeTypeInfoForScriptObject () const override

Public Member Functions inherited from CYIScriptableObject
	CYIScriptableObject ()

	CYIScriptableObject (const CYIScriptableObject &other)

CYIScriptableObject &	operator= (const CYIScriptableObject &other)

virtual	~CYIScriptableObject ()

CYIBindingImplementation *	GetBindingImplementation () const

void	SetBindingImplementation (CYIBindingImplementation *pBindingImplementation)

Protected Member Functions
virtual std::shared_ptr< IYIGPUObject >	CreateGPUObject () const override

virtual std::pair< uint32_t, uint32_t >	GetApproximateSize () const override

virtual void	OnUnload () override

Protected Member Functions inherited from CYIAssetTextureBase
virtual void	DirtyEntireTexture ()

void	SetWidth (int32_t nWidth)

void	SetHeight (int32_t nHeight)

void	SetColorSpace (IYIMaterialFactory::YI_COLORSPACE eColorSpace)

virtual void	ApplyRetainmentPolicy () override

Protected Member Functions inherited from CYIAssetHardware
virtual void	OnLoad () override

Protected Member Functions inherited from CYIAsset
	CYIAsset ()

ssize_t	GetID () const

void	SetPath (const CYIString &path, PATH_TYPE ePathType)

void	SetApproximateSize (uint32_t nSize)

void	SetLoaded (bool bAssetLoaded)

void	SetLoadParameters (std::unique_ptr< CYIAssetLoadParams > pParams)

Protected Member Functions inherited from CYIScriptableRTTIObject
virtual std::pair< const CYIRuntimeTypeInfo , const void >	GetRuntimeTypeInfoWithObject () const =0

Additional Inherited Members
Protected Attributes inherited from CYIAssetHardware
bool	m_bHardwareLoadRequested

std::shared_ptr< IYIGPUObject >	m_pGPUObject

RETENTION_POLICY	m_eRetentionPolicy

Static Protected Attributes inherited from CYIAsset
static ssize_t	INVALID_ID

Member Enumeration Documentation

enum CYIAssetTextureRaw::YI_MEMORY_ACCESS

Raw data memory usage.

Enumerator
YI_MEMORY_PRIVATE	Memory is managed by the asset and must not be deleted
YI_MEMORY_SHARED	Memory is managed by the application and it is responsible for deleting it
YI_MEMORY_DIRECT	Direct video memory. Only relevant on certain platforms, on other platforms this will have the same effect as CYIAssetTextureRaw::YI_MEMORY_SHARED. The application is responsible for freeing.
YI_MEMORY_VOLATILE	The data passed in will be invalid after the call. The texture will be updated immediately

Constructor & Destructor Documentation

CYIAssetTextureRaw::CYIAssetTextureRaw	(	USAGE	usage = `USAGE_STATIC`,
		IYIMaterialFactory::YI_COLORSPACE	colorSpace = `IYIMaterialFactory::YI_RGBA8888`
	)

Construct a new CYIAssetTextureRaw with specified usage and colorSpace.

virtual CYIAssetTextureRaw::~CYIAssetTextureRaw ( )

virtual

Member Function Documentation

void CYIAssetTextureRaw::ClearPixelData ( )

Clears the memory used by the pixel data. If memory access rule is not CYIAssetTextureRaw::YI_MEMORY_PRIVATE, this call only removes its reference to the data and the application is responsible for freeing.

virtual std::shared_ptr<IYIGPUObject> CYIAssetTextureRaw::CreateGPUObject ( ) const

overrideprotectedvirtual

Each sub-type must implement this function and returns an IYIGPUObject representing the hardware type.

Implements CYIAssetTextureBase.

virtual std::pair<uint32_t, uint32_t> CYIAssetTextureRaw::GetApproximateSize ( ) const

overrideprotectedvirtual

Calculates and returns the approximate number of bytes currently used by this asset. The first item of the returned pair object represents the memory currently taken in the CPU main memory, and the second item of the returned pair object represents the memory currently taken in the GPU memory.

Note: This function only returns an approximate memory consumption as the exact memory consumption changes depending on the used C++ libraries and on the specific GPU infrastructure and drivers used by the system.

Reimplemented from CYIAsset.

const uint8_t* CYIAssetTextureRaw::GetData ( ) const

Returns the data currently set on this raw texture. If the data is not set, nullptr will be returned. This could be the case if it was set using CYIAssetTextureRaw::YI_MEMORY_VOLATILE, has not been set yet or CYIAssetTextureRaw::ClearPixelData() was called prior to this.

See also: SetData

uint8_t* CYIAssetTextureRaw::GetData ( )

Returns the data currently set on this raw texture. If the data is not set, nullptr will be returned. This could be the case if it was set using CYIAssetTextureRaw::YI_MEMORY_VOLATILE, has not been set yet or CYIAssetTextureRaw::ClearPixelData() was called prior to this.

See also: SetData

YI_MEMORY_ACCESS CYIAssetTextureRaw::GetMemoryAccess ( ) const

Return the memory access rule currently set on this raw texture.

See also: SetData

int32_t CYIAssetTextureRaw::GetPitch ( ) const

Get the texture's pitch.

See also: SetData

virtual void CYIAssetTextureRaw::OnUnload ( )

overrideprotectedvirtual

Implements CYIAssetTextureBase.

void CYIAssetTextureRaw::SetData	(	uint8_t *	pData,
		int32_t	nWidth,
		int32_t	nHeight,
		YI_MEMORY_ACCESS	memoryAccess
	)

Sets raw data directly to the texture.

The pData pointer has to be of size "\a nWidth * \a nHeight * the number of bytes in each pixel". The number of bytes per pixel is determined by the color space set in the asset's constructor.

If the memory access rule is YI_MEMORY_PRIVATE, it has to have been allocated using YI_MALLOC.

See also: CYIAssetTextureRaw::YI_MEMORY_ACCESS

Note: If the memory access rule passed in is YI_MEMORY_VOLATILE, this call must be called from the main application thread.; If the memory access rule passed in is YI_MEMORY_DIRECT, this call will assert because a Pitch must to be passed. The overloaded SetData function with Pitch argument should be used instead.

void CYIAssetTextureRaw::SetData	(	uint8_t *	pData,
		int32_t	nWidth,
		int32_t	nHeight,
		int32_t	nPitch,
		YI_MEMORY_ACCESS	memoryAccess
	)

Sets raw data directly to the texture. A texture nPitch can be specified. If set to zero, the nPitch will be equal to nWidth. nPitch represents the number of pixels in a row.

The pData pointer has to be of size "\a nPitch * \a nHeight * the number of bytes in each pixel". The number of bytes per pixel is determined by the color space set in the asset's constructor.

If the memory access rule is YI_MEMORY_PRIVATE, it has to have been allocated using YI_MALLOC.

See also: CYIAssetTextureRaw::YI_MEMORY_ACCESS

Note: If the memory access rule passed in is YI_MEMORY_VOLATILE, this call must be called from the main application thread.; If the memory access rule passed in is YI_MEMORY_DIRECT, a valid nPitch must be passed.

The documentation for this class was generated from the following file:

asset/YiAssetTextureRaw.h
