Detailed Description

Shader program asset. Contains a vector of CYIAssetShaderObject types.

#include <asset/YiAssetShaderProgram.h>

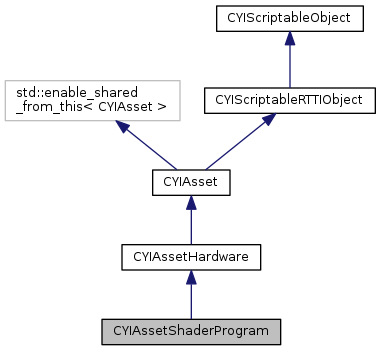

Inheritance diagram for CYIAssetShaderProgram:

[legend]

Public Member Functions
	CYIAssetShaderProgram ()

	CYIAssetShaderProgram (const CYIString &path, PATH_TYPE ePathType=PATH_RELATIVE)

virtual	~CYIAssetShaderProgram ()

void	AddShaderObject (const std::shared_ptr< CYIAssetShaderObject > &pShaderObjectAsset)

const std::vector< std::shared_ptr< CYIAssetShaderObject > > &	GetShaderObjects ()

void	RemoveShaderObject (const std::shared_ptr< CYIAssetShaderObject > &pShaderObjectAsset)

void	SetAttributeLocation (CYIString name, uint32_t location)

void	UnsetAttributeLocation (CYIString name)

const std::vector< std::pair< uint32_t, CYIString > > &	GetAttributeLocations ()

bool	Load ()

Public Member Functions inherited from CYIAssetHardware
	CYIAssetHardware ()

virtual	~CYIAssetHardware ()

virtual bool	RequestHardwareLoad ()

virtual bool	RequestHardwareUnload ()

virtual bool	RequestInvalidate ()

virtual bool	RequestRestore ()

virtual bool	Prepare () override

std::shared_ptr< IYIGPUObject >	GetGPUObject () const

bool	IsLoadedOnGPU () const

RETENTION_POLICY	GetRetentionPolicy () const

void	SetRetentionPolicy (RETENTION_POLICY ePolicy)

Public Member Functions inherited from CYIAsset
virtual	~CYIAsset ()

const CYIString &	GetPath () const

CYIAssetLoadParams *	GetLoadParameters () const

virtual std::pair< uint32_t, uint32_t >	GetApproximateSize () const

bool	SetName (const CYIString &name)

const CYIString &	GetName () const

bool	Load ()

void	Unload ()

bool	IsLoaded () const

bool	Equals (const std::shared_ptr< CYIAsset > &pAsset)

Public Member Functions inherited from CYIScriptableRTTIObject
	CYIScriptableRTTIObject ()

virtual	~CYIScriptableRTTIObject ()

virtual const CYIRuntimeTypeInfo *	GetRuntimeTypeInfoForScriptObject () const override

Public Member Functions inherited from CYIScriptableObject
	CYIScriptableObject ()

	CYIScriptableObject (const CYIScriptableObject &other)

CYIScriptableObject &	operator= (const CYIScriptableObject &other)

virtual	~CYIScriptableObject ()

CYIBindingImplementation *	GetBindingImplementation () const

void	SetBindingImplementation (CYIBindingImplementation *pBindingImplementation)

Protected Member Functions
virtual std::shared_ptr< IYIGPUObject >	CreateGPUObject () const override

void	UpdateApproximateSize ()

Protected Member Functions inherited from CYIAssetHardware
virtual void	ApplyRetainmentPolicy ()

virtual void	OnLoad () override

Protected Member Functions inherited from CYIAsset
	CYIAsset ()

ssize_t	GetID () const

void	SetPath (const CYIString &path, PATH_TYPE ePathType)

void	SetApproximateSize (uint32_t nSize)

void	SetLoaded (bool bAssetLoaded)

void	SetLoadParameters (std::unique_ptr< CYIAssetLoadParams > pParams)

virtual void	OnUnload ()

Protected Member Functions inherited from CYIScriptableRTTIObject
virtual std::pair< const CYIRuntimeTypeInfo , const void >	GetRuntimeTypeInfoWithObject () const =0

Additional Inherited Members
Public Types inherited from CYIAssetHardware
enum	RETENTION_POLICY { RETAIN = 0, UNLOAD }
	The YI_HW_ASSET_RETENTION_POLICY enum specifies the retention policy of static hardware assets from the CPU memory once they are loaded onto the GPU. It is globally configurable, where new CYIAssetHardware will be making use of it and the can also change directly per assets. Be aware that on some platform, it is best to leave the assets retained on the CPU side when the platform lifecycle has the ability to destroy the graphic context while the app still runs, giving You.i Engine the ability to re-load every assets back onto GPU memory really fast. A good example of such platform would be Android. More...

Public Types inherited from CYIAsset
enum	PATH_TYPE { PATH_ABSOLUTE = 0, PATH_RELATIVE }

Protected Attributes inherited from CYIAssetHardware
bool	m_bHardwareLoadRequested

std::shared_ptr< IYIGPUObject >	m_pGPUObject

RETENTION_POLICY	m_eRetentionPolicy

Static Protected Attributes inherited from CYIAsset
static ssize_t	INVALID_ID

Constructor & Destructor Documentation

CYIAssetShaderProgram::CYIAssetShaderProgram ( )

CYIAssetShaderProgram::CYIAssetShaderProgram	(	const CYIString &	path,
		PATH_TYPE	ePathType = `PATH_RELATIVE`
	)

virtual CYIAssetShaderProgram::~CYIAssetShaderProgram ( )

virtual

Member Function Documentation

void CYIAssetShaderProgram::AddShaderObject ( const std::shared_ptr< CYIAssetShaderObject > & pShaderObjectAsset )

Adds a pShaderObjectAsset to the list of managed shader objects.

virtual std::shared_ptr<IYIGPUObject> CYIAssetShaderProgram::CreateGPUObject ( ) const

overrideprotectedvirtual

Subclasses must implement this function to instance a new IYIGPUObject concrete type corresponding to the asset container. This function will be called by the CreateGPUObject implementation of CYIAssetHardware

Warning: This function may not return null!

Implements CYIAssetHardware.

const std::vector<std::pair<uint32_t, CYIString> >& CYIAssetShaderProgram::GetAttributeLocations ( )

Get attribute locations as a vector of pairs. The shader will be reloaded, if necessary.

const std::vector<std::shared_ptr<CYIAssetShaderObject> >& CYIAssetShaderProgram::GetShaderObjects ( )

Returns a vector of shader objects. The shaders will be reloaded, if necessary.

bool CYIAssetShaderProgram::Load ( )

void CYIAssetShaderProgram::RemoveShaderObject ( const std::shared_ptr< CYIAssetShaderObject > & pShaderObjectAsset )

Removes a pShaderObjectAsset from the list of managed shader objects.

void CYIAssetShaderProgram::SetAttributeLocation	(	CYIString	name,
		uint32_t	location
	)

Declare a vertex attribute to be at a particular location. See CYIMesh for more information about You.i Engine default attribute locations.

This should ALWAYS be used to declare your attribute locations, for performance we do not provide a means for reading automatically generated attribute locations back from shaders.

//Default You.i Engine attribute locations
SetAttributeLocation("YiVertexPosition", CYIMesh::YI_F3POSITION);
SetAttributeLocation("YiVertexTexCoord", CYIMesh::YI_F2TEXCOORD);
//My custom vertex attributes
SetAttributeLocation("VertexFooness", 2);
SetAttributeLocation("Vertexibility", 3);

void CYIAssetShaderProgram::UnsetAttributeLocation ( CYIString name )

Unset an attribute location setting

void CYIAssetShaderProgram::UpdateApproximateSize ( )

protected

The documentation for this class was generated from the following file:

asset/YiAssetShaderProgram.h
