CYIAssetShaderObject Class Reference

Detailed Description

Shader object asset. Can either be loaded from a precompiled binary, or loaded as source and compiled at run-time.

#include <asset/YiAssetShaderObject.h>

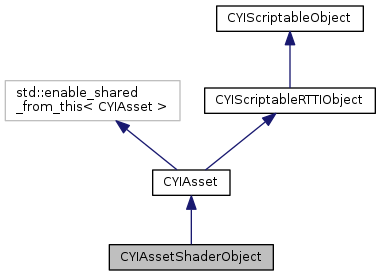

Inheritance diagram for CYIAssetShaderObject:

Public Types
enum	SHADER_TYPE {   VERTEX_SHADER,   FRAGMENT_SHADER,   COMPUTE_SHADER }
enum	CODE_TYPE {   PRECOMPILED_BINARY,   UNCOMPILED_SOURCE }
Public Types inherited from CYIAsset
enum	PATH_TYPE {   PATH_ABSOLUTE = 0,   PATH_RELATIVE }

Public Member Functions
	CYIAssetShaderObject ()
	CYIAssetShaderObject (const CYIString &path, PATH_TYPE ePathType=PATH_RELATIVE)
virtual	~CYIAssetShaderObject ()
void	GetCode (uint8_t **ppCode, uint32_t *pCodeSize) const
CODE_TYPE	GetCodeType () const
SHADER_TYPE	GetType () const
bool	IsFromDisk () const
void	SetFromDisk (bool bFromDisk)
void	SetCode (const uint8_t *pCode, uint32_t uCodeSize, CODE_TYPE eType)
void	SetType (SHADER_TYPE eType)
Public Member Functions inherited from CYIAsset
virtual	~CYIAsset ()
const CYIString &	GetPath () const
CYIAssetLoadParams *	GetLoadParameters () const
virtual std::pair< uint32_t, uint32_t >	GetApproximateSize () const
bool	SetName (const CYIString &name)
const CYIString &	GetName () const
bool	Load ()
void	Unload ()
bool	IsLoaded () const
bool	Equals (const std::shared_ptr< CYIAsset > &pAsset)
virtual bool	Prepare ()
Public Member Functions inherited from CYIScriptableRTTIObject
	CYIScriptableRTTIObject ()
virtual	~CYIScriptableRTTIObject ()
virtual const CYIRuntimeTypeInfo *	GetRuntimeTypeInfoForScriptObject () const override
Public Member Functions inherited from CYIScriptableObject
	CYIScriptableObject ()
	CYIScriptableObject (const CYIScriptableObject &other)
CYIScriptableObject &	operator= (const CYIScriptableObject &other)
virtual	~CYIScriptableObject ()
CYIBindingImplementation *	GetBindingImplementation () const
void	SetBindingImplementation (CYIBindingImplementation *pBindingImplementation)

Protected Member Functions
virtual void	OnUnload () override
Protected Member Functions inherited from CYIAsset
	CYIAsset ()
ssize_t	GetID () const
void	SetPath (const CYIString &path, PATH_TYPE ePathType)
void	SetApproximateSize (uint32_t nSize)
void	SetLoaded (bool bAssetLoaded)
void	SetLoadParameters (std::unique_ptr< CYIAssetLoadParams > pParams)
virtual void	OnLoad ()
Protected Member Functions inherited from CYIScriptableRTTIObject
virtual std::pair< const CYIRuntimeTypeInfo *, const void * >	GetRuntimeTypeInfoWithObject () const =0

Additional Inherited Members
Static Protected Attributes inherited from CYIAsset
static ssize_t	INVALID_ID

Member Enumeration Documentation

enum CYIAssetShaderObject::CODE_TYPE

Enumerator
PRECOMPILED_BINARY	Binary data that is compiled off-line prior to program execution. This data can come from disk or from memory. See IsFromDisk.
UNCOMPILED_SOURCE	String data that is compiled at run-time. This data can come from disk or from memory. See IsFromDisk.

enum CYIAssetShaderObject::SHADER_TYPE

Describes the supported shader types. Together these form a shader program that describes how to render geometry.

Enumerator
VERTEX_SHADER	Describes code that will be executed per-vertex.
FRAGMENT_SHADER	Describes code that will be executed per-fragment.
COMPUTE_SHADER	Describes code that will be executed as groups of threads.

Constructor & Destructor Documentation

CYIAssetShaderObject::CYIAssetShaderObject

(

)

CYIAssetShaderObject::CYIAssetShaderObject	(	const CYIString &	path,
		PATH_TYPE	ePathType = PATH_RELATIVE
	)

virtual CYIAssetShaderObject::~CYIAssetShaderObject ( )

virtual

Member Function Documentation

void CYIAssetShaderObject::GetCode	(	uint8_t **	ppCode,
		uint32_t *	pCodeSize
	)		const

Returns a pointer to the data defining this asset. The data will be of size pCodeSize in bytes.

If the data type of the shader, specified by GetDataType(), is CYIAssetShaderObject::PRECOMPILED_BINARY, the data will be a binary blob representing a compiled shader object. If the data type is CYIAssetShaderObject::UNCOMPILED_SOURCE, the data will be a string containing the shader source code. This source code will be compiled at run-time prior to usage, but will not be accessible as binary data.

CODE_TYPE CYIAssetShaderObject::GetCodeType

(

)

const

Returns the format of the data contained in this asset.

SHADER_TYPE CYIAssetShaderObject::GetType

(

)

const

Returns the type of shader object.

bool CYIAssetShaderObject::IsFromDisk

(

)

const

Returns true if this asset is loaded from disk and false if it is defined in-memory.

virtual void CYIAssetShaderObject::OnUnload ( )

overrideprotectedvirtual

Reimplemented from CYIAsset.

void CYIAssetShaderObject::SetCode	(	const uint8_t *	pCode,
		uint32_t	uCodeSize,
		CODE_TYPE	eType
	)

Sets the data defining this asset to be pCode with size uCodeSize in bytes. If the code is a null-terminated string, it is up to the user to specify the size (not including the terminating character).

Warning

It is up to the user to delete any memory that has been allocated to store the code, this object maintains its own copy.

void CYIAssetShaderObject::SetFromDisk

(

bool

bFromDisk

)

See also

IsFromDisk

void CYIAssetShaderObject::SetType

(

SHADER_TYPE

eType

)

Sets the type of shader object.

---

The documentation for this class was generated from the following file:

• asset/YiAssetShaderObject.h
