3-wires control mode

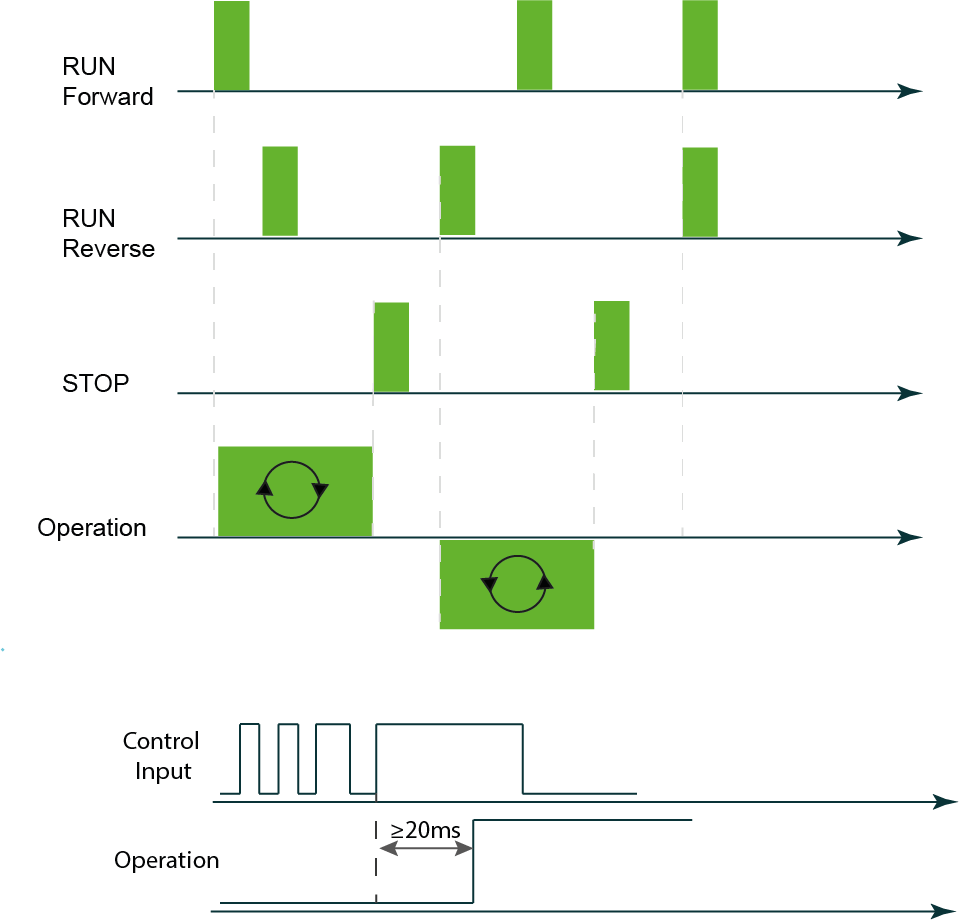

In 3-wires mode, the basic controls are run forward, run reverse, and stop. The control inputs are managed as pulses of a minimum duration of 20ms.
Simultaneous activation of run forward and run reverse does not change the Clean Power VFD's status.
To change the motor rotor direction, a full stop is compulsory.
Single direction operation⚓
The 3-wires mode can be configured to operate only the forward direction.
When single direction is enable, the preset I/O "Run Reverse" (digital input number 4) is available to be associated to another function such as the selection of a preset speed.
