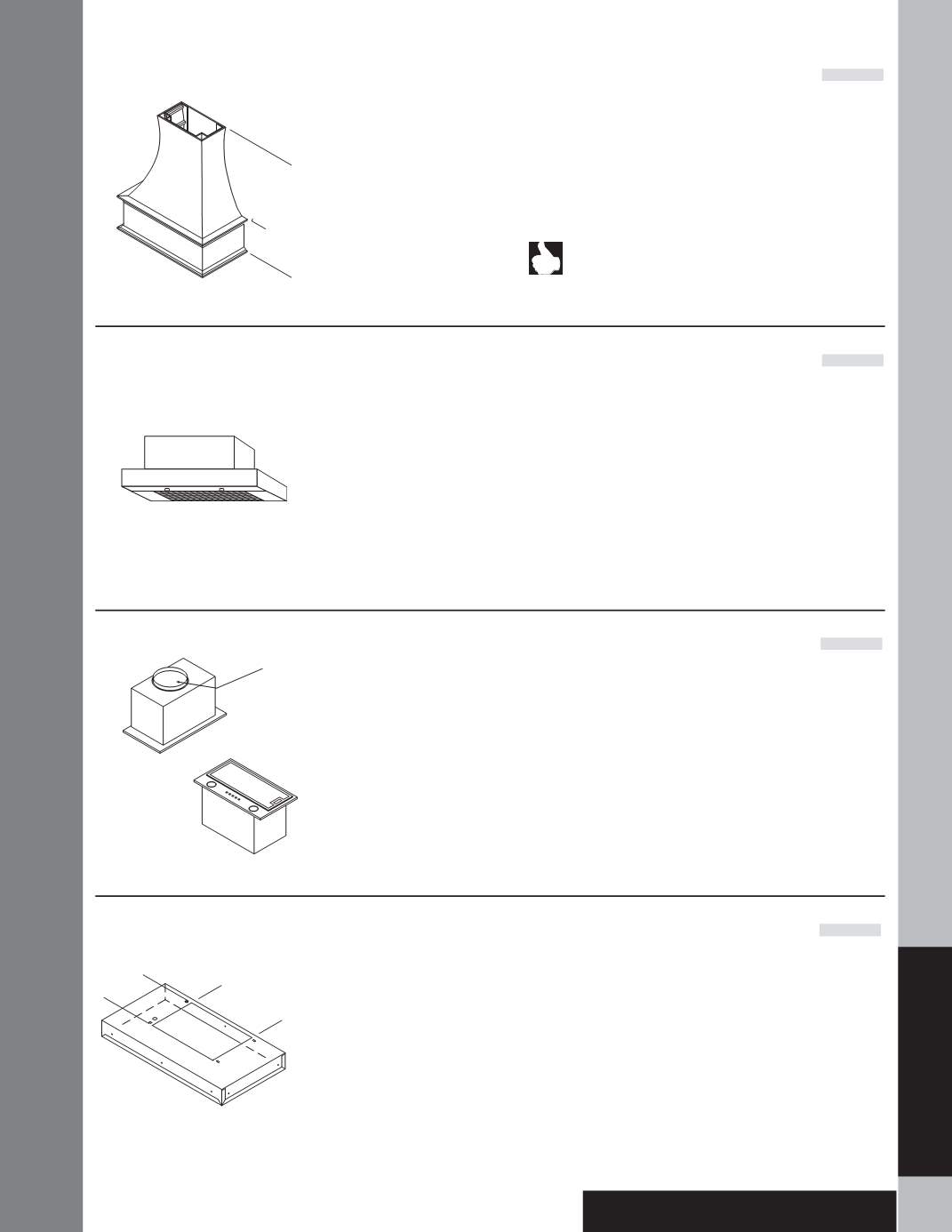

WHCV362442
• Solid wood/wood veneer construction
• For installations with exterior ductwork
• A 3” space is recommended on both sides of hood for adjacent
cabinet runs
• Can accommodate ceilings up to 9’ high
•
Not
designed to be used with a soffit
• Requires a metal liner and blower. See Wall Hood Liner
(WHL36) and Wall Hood Blower (WHB36)
•
Note
: Cabinetry and appliances located below these Wall
Hoods must be pulled to a minimum of 27˝deep and a
maximum of 30˝ deep for improved function
Mount hood a minimum of 24” above range cooking
surface. Consult building codes prior to installation.
Hood must be securely anchored to wall
v
APC
21˝
38˝
35 ½˝
12˝
42˝
12˝
20˝
Wall Hood Front Blower
RHB
• Double squirrel cage blower unit (360 CFM maximum)
with a solid state, variable speed control, on/off switch,
and two 40 watt tubular light fixtures with lens diffuser and
dimming switch. Tubular bulbs
not
included
• For installations with exterior ductwork
• 3 1/4” x 10” top exhaust with built-in back draft damper unit;
duct
not
included
• Pre-wired for electrical connection
• AC 120 volt required
• Washable aluminum mesh grease filter included
• Charcoal filter laminated within replaceable grease filter
• UL and CSA approved
• For use with Wall Hood Front (RHF)
• Almond colored painted finish
APC
Wall Hood Blower
WHB36•620
• 620 CFM/7.5 Sones; three-speed motor with push button
electronic control
• For installations with exterior ductwork
• Constructed of heavy gauge steel
• Pre-wired for electrical connection
• AC 120 volt required
• 8” diameter duct vents on top
• Dual bulb halogen lighting (PAR 20) included
• UL and HVI approved
• For use with Wall Hood Cove (WHCV) and Wall Hood
Classic Chimney (WHCC)
• For use with Wall Hood Liner (WHL36)
• Metallic medium gray painted finish on cover plate is
corrosion and rust resistant. Blowerbox has galvanized finish
APC
8"
diameter
10 ½˝
11 ½˝
17 / ˝
12"
21 / ˝
Wall Hood Liner
WHL36
• Constructed of heavy gauge steel
• For installations with exterior ductwork
• For use with Wall Hood Cove (WHCV) and Wall Hood
Classic Chimney (WHCC)
• For use with Wall Hood Blower (WHB)
• Metallic medium gray painted finish on cover plate is
corrosion and rust resistant
APC
34 / ˝
18 / ˝
4˝
11 ¼˝
17 / ˝
