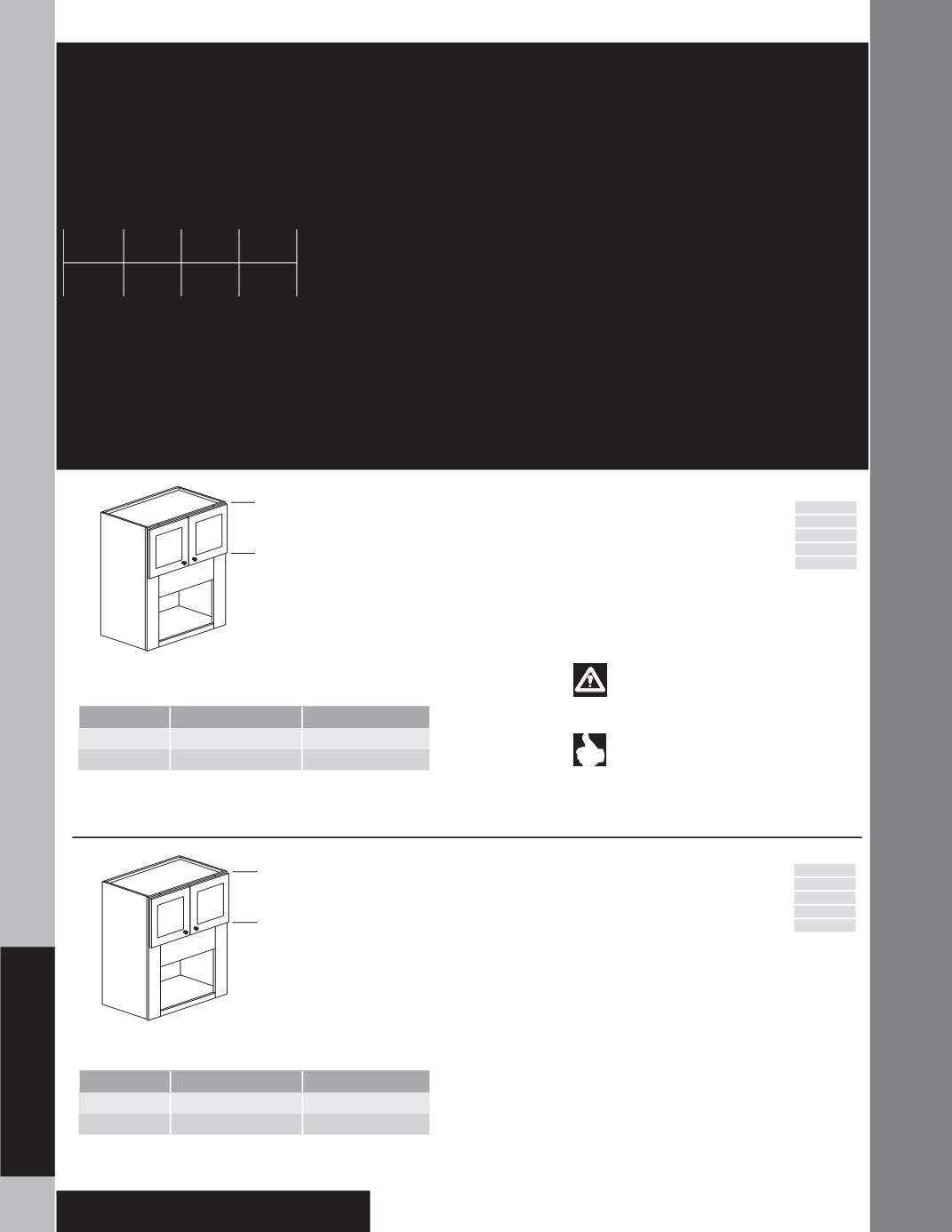

D16
Wall Microwave Cabinets
Caution
: Additional support is required.
Wall Cabinets
Wall Microwave
Cabinets
Construction Options and
Modifications
I
Available with exceptions
l
Available with an upcharge
v
Included as standard
(Blank)
Not
available
Installation notes: Installation of
a wall cabinet 30” or wider, by
itself, is
not
recommended and
requires additional support, such as
attachment to a soffit or support
from below.
Any wall cabinet over 24” wide or 30”
high with a depth greater than 12” or
butt doors must be installed between
two cabinets, a cabinet and a wall, or
supported from below.
Material dimensions may vary slightly
based on lumber industry standards.
Specifications subject to change
without notice.
PE Plywood Ends
APC All Plywood Construction
ID21 Increase Depth 21”
ID24 Increase Depth 24”
CFO Cabinet Front Only
WMC 30 18 36
code width depth height
Wall Microwave Cabinet 36” H
WMC271836 (Butt)
WMC301836 BUTT
• No shelf in upper section
• Matching laminate interior
• 4 1/2” wide trimmable face frame stiles
• Doors are attached with face-mounted
concealed hinges
• Designed for “built-in” style microwaves
•
Note
: Must be installed between two cabinets
or between cabinet and side wall
Installation of a wall cabinet 30” or
wider, by itself, is
not
recommended
and requires additional support,
such as attachment to a soffit or support from
below
Remember, a cabinet designated
BUTT or (Butt) has no center stile.
When you see the word BUTT in all
capitals, it must be included as part of your
ordering nomenclature, a (Butt) in
parentheses is for your information and isn’t
required on an order form
l
PE
l
APC
l
ID21
l
ID24
l
CFO
Cabinet
Opening Size
Trimmable to
WMC271836
WMC301836
13˝ high x 18˝ wide
13˝ high x 21˝ wide
19 ½˝ high x 24˝ wide
19 ½˝ high x 27˝ wide
15˝
36˝
18˝
Wall Microwave Cabinet 45” H
WMC271845 (Butt)
WMC301845 BUTT
• No shelf in upper section
• Matching laminate interior
• 4 1/2” wide trimmable face frame stiles
• Doors are attached with face-mounted
concealed hinges
• Designed for “built-in” style microwaves
•
Note
: Must be installed between two cabinets
or between cabinet and side wall
l
PE
l
APC
l
ID21
l
ID24
l
CFO
Cabinet
Opening Size
Trimmable to
WMC271845
13½˝ high x 18˝ wide 20˝ high x 24˝ wide
WMC301845
13½˝ high x 21˝ wide 20˝ high x 27˝ wide
23 ½˝
45˝
18˝
