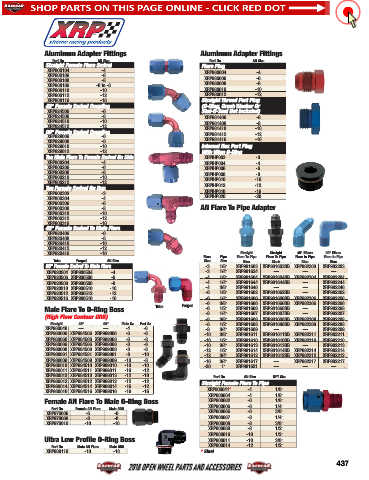

Page 438 - 2018 Racecar Engineering Open Wheel Parts and Accessories Catalog

Aluminum Adapter Fittings Aluminum Adapter Fittings
Part No. AN Size Part No. AN Size
Straight Female Flare Swivel Flare Plug
XRP900104 -4 XRP980604 -4
XRP900106 -6 XRP980606 -6
XRP900108 -8
XRP900186 -8 to -6 XRP980608 -8
XRP900110 -10 XRP980610 -10
XRP900112 -12 XRP980612 -12
XRP900116 -16 Straight Thread Port Plug
45° Female Swivel Coupling (O-Ring, Crush Washer Or
XRP924506 -6 Stat-O-Seal Not Included)
XRP924508 -8 XRP981406 -6
XRP924510 -10 XRP981408 -8
XRP924512 -12
90° Female Swivel Coupling XRP981410 -10
-12
XRP981412
XRP929006 -6
XRP929008 -8 XRP981416 -16
XRP929010 -10 Internal Hex Port Plug
XRP929012 -12 With Viton O-Ring
Tee Male Flare To Female Swivel On Side XRPIHP003 -3
XRP900204 -4 XRPIHP004 -4
XRP900206 -6 XRPIHP006 -6
XRP900208 -8 XRPIHP008 -8
XRP900210 -10 XRPIHP010 -10
XRP900212 -12
Tee Female Swivel On Run XRPIHP012 -12
XRP900303 -3 XRPIHP016 -16
XRP900304 -4 XRPIHP020 -20
XRP900306 -6
XRP900308 -8 AN Flare To Pipe Adapter
XRP900310 -10
XRP900312 -12
XRP900316 -16
45° Female Swivel To Male Flare
XRP920406 -6
XRP920408 -8
XRP920410 -10
XRP920412 -12
XRP920416 -16 Straight Straight 45° Elbow 90° Elbow
Flare Pipe Flare To Pipe Flare To Pipe Flare to Pipe Flare to Pipe
Tube Forged AN Size Size Size Blue Black Blue Blue
90° Female Swivel To Male Flare -3 1/8" XRP981603 XRP981603BB XRP982303 XRP982203
XRP920504 XRP900504 -4 -3 1/4" XRP981634 — — —
XRP920506 XRP900506 -6 -4 1/8" XRP981604 XRP981604BB XRP982304 XRP982204
XRP920508 XRP900508 -8 -4 1/4" XRP981644 XRP981644BB — XRP982244
XRP920510 XRP900510 -10 -4 3/8" XRP981646 — — XRP982246
XRP920512 XRP900512 -12 -6 1/8" XRP981662 XRP981662BB — XRP982262
XRP920516 XRP900516 -16 -6 1/4" XRP981606 XRP981606BB XRP982306 XRP982206
-6 3/8" XRP981666 XRP981666BB XRP982366 XRP982266
Forged
Male Flare To O-Ring Boss Tube -6 1/2" XRP981668 XRP981668BB — XRP982268
-8 1/4" XRP981607 XRP981607BB — XRP982207
(High Flow Contour ORB) -8 3/8" XRP981608 XRP981608BB XRP982308 XRP982208
Straight 45° 90° Male Sz. Port Sz. -8 1/2" XRP981688 XRP981688BB XRP982388 XRP982288
XRP980048 — — -4 -8 -8 3/4" XRP981609 — — XRP982209
XRP980006 XRP984506 XRP989006 -6 -6 -10 3/8" XRP981611 XRP981611BB XRP982311 XRP982211
XRP980068 XRP984568 XRP989068 -6 -8 -10 1/2" XRP981610 XRP981610BB XRP982310 XRP982210
XRP980086 XRP984586 XRP989086 -8 -6 -10 3/4" XRP981613 XRP981613BB — XRP982213
XRP980008 XRP984508 XRP989008 -8 -8 -12 1/2" XRP981614 XRP981614BB XRP982314 XRP982214
XRP980081 XRP984581 XRP989081 -8 -10 -12 3/4" XRP981612 XRP981612BB XRP982312 XRP982212
XRP980009 XRP984509 XRP989009 -10 -8 -16 3/4" XRP981617 — XRP982317 XRP982217
XRP980010 XRP984510 XRP989010 -10 -10 -20 1" XRP981621 — — —
XRP980011 XRP984511 XRP989011 -10 -12
XRP980013 XRP984513 XRP989013 -12 -10 Part No. AN Size NPT Size
XRP980012 XRP984512 XRP989012 -12 -12 Straight Female Flare To Pipe
XRP980014 XRP984514 XRP989014 -16 -12 XRP900641* -4 1/8"
XRP980016 XRP984516 XRP989016 -16 -16
XRP900604 -4 1/8"
Female AN Flare To Male O-Ring Boss XRP900662 -6 1/8"
XRP900606 -6 1/4"
Part No. Female AN Flare Male ORB
XRP970006 -6 -6 XRP900666 -6 3/8"
XRP970008 -8 -8 XRP900667 -8 1/4"
XRP970010 -10 -10 XRP900608 -8 3/8"
XRP900688 -8 1/2"
XRP900610 -10 1/2"
Ultra Low Profile O-Ring Boss XRP900611 -10 3/8"
Part No. Male AN Flare Male ORB XRP900614 -12 1/2"
XRP989110 -10 -10 * Steel
