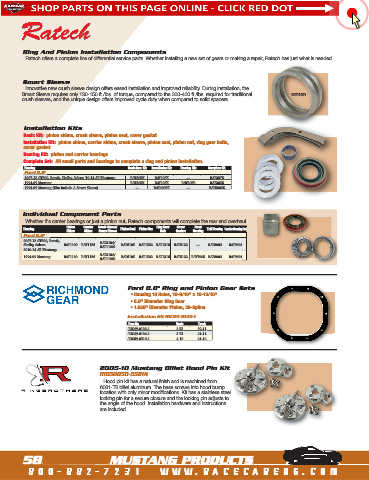

Page 59 - 2018 Racecar Engineering Late-Model Muscle Car Parts and Accessories Catalog

Ring And Pinion Installation Components
Ratech offers a complete line of differential service parts. Whether installing a new set of gears or making a repair, Ratech has just what is needed.

Smart Sleeve
Innovative new crush sleeve design offers eased installation and improved reliability. During installation, the
Smart Sleeve requires only 130-150 ft./lbs. of torque, compared to the 300-400 ft./lbs. required for traditional RAT11001
crush sleeves, and the unique design offers improved cycle duty when compared to solid spacers.

Installation Kits
Basic Kit: pinion shims, crush sleeve, pinion seal, cover gasket
Installation Kit: pinion shims, carrier shims, crush sleeve, pinion seal, pinion nut, ring gear bolts,
cover gasket
Bearing Kit: pinion and carrier bearings
Complete Set: All small parts and bearings to com plete a ring and pinion installation.
Housing Basic Inst. Kit Installation Kit Bearing Kit Complete Kit
Ford 8.8"
2007-12 GT500, Roush, Shelby, Saleen '10-14 All Mustangs RAT405K RAT105K — RAT387K
1994-09 Mustang RAT405K RAT105K RAT205B RAT305K
1994-09 Mustang (Kits Include A Smart Sleeve) — RAT4005K — RAT5005K

Individual Component Parts
Whether it's carrier bearings or just a pinion nut, Ratech components will complete the rear end overhaul.
Pinion Carrier Crush Sleeve/ Ring Gear Cover Head
Housing Pinion Seal Pinion Nut Tail Bearing Carrier Bearing Set
Shims Shims Smart Sleeve Bolt Gasket Bearing
Ford 8.8"
2007-12 GT500, Roush, RAT3104/
Shelby, Saleen RAT1100 RAT1126 RAT11001 RAT6105 RAT1502 RAT1316 RAT5122 — RAT8003 RAT9001
2010-14 All Mustangs
1994-09 Mustang RAT1100 RAT1126 RAT3104/ RAT6105 RAT1502 RAT1316 RAT5122 RAT7005 RAT8003 RAT9001
RAT11001

Ford 8.8" Ring and Pinion Gear Sets
• Housing 10 Holes, 10-9/16" x 10-13/16"
• 8.8" Diameter Ring Gear
• 1.626" Diameter Pinion, 30-Spline
Installation Kit RIC83-1043-1
Part No. Ratio Teeth
RIC49-0103-1 3.55 39-11
RIC49-0104-1 3.73 41-11
RIC69-0310-1 4.10 41-10

2005-10 Mustang Billet Hood Pin Kit
RIB50050-5521N
Hood pin kit has a natural finish and is machined from
6061-T6 billet aluminum. The base screws into hood bump
location with only minor modifications. Kit has a stainless steel
locking pin for a secure closure and the locking pin adjusts to
the angle of the hood. Installation hardware and instructions
are included.
