Rotate |

|
|
Rotate |
|
Rotate selected Objects orthogonally by either 90, 180, 270 degrees.
Note: This function requires that you select objects before proceeding. When no objects are selected this command becomes de-activated in the menu.

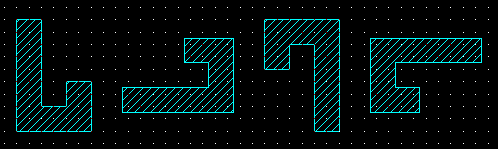

Example of Rotation: 0 - 90 - 180 - 270 (Degrees):
Command Sequence
1. Select Objects.
Note: For more information about object selection see Viewing & Selection Basics
Note: To select polygons or traces, pick the edges.
2. Select menu: Edit | Rotate | (use either 90, 180, 270, or set Angle)
Selected objects will now be rotated.
3. If the command is incorrect, you may Undo.
