Imager

Languages:

Overview

Ozone’s Imager module allows you to adjust the stereo width of your mix.

Imager Interface

Controls

Width

Sets the amount of stereo widening applied by the Imager.

Enable Stereoize

Toggle this option on to enable the Stereoize slider.

Stereoize Amount

By adjusting the amount control in conjunction with the width slider, you can control the character of the stereo effect. The Stereoize effect is completely mono compatible; even if you add width to audio, it can still be played back in mono without producing unpleasant artifacts. The Stereoize effect can be used to add natural-sounding stereo width to mono or narrow sounding recordings.

Meters

Vectorscope

The Vectorscope provides a view of the stereo image of the signal. Note that it monitors Ozone’s final output, regardless of the Imager’s place in the signal chain. You can check mixes for stereo separation, while using the module’s controls to provide more or less separation. The vectorscope provides three different views, each of which you can select by clicking on the display type label below the scope:

Polar Sample Vectorscope

Imager Lissajous vectorscope

The Polar Sample Vectorscope plots dots per sample, but uses a polar coordinate display that is more useful in highlighting the stereo image of the incoming signal. Patterns that appear within the 45-degree safe lines represent in-phase signals while patterns outside these lines represent out-of-phase audio. The history of the Polar Sample Vectorscope also fades out slowly. The last few seconds are displayed as slowly fading data points. You can reset the display by clicking on the meter.

Polar Level Vectorscope

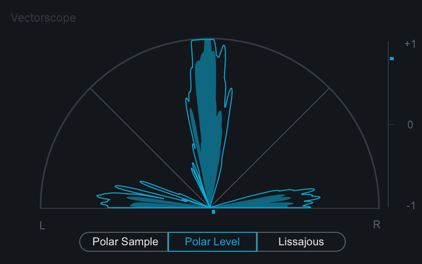

Imager Polar Level vectorscope

The stereo energy of a recording is clearly represented by the Polar Level Vectorscope, which plots rays on a polar coordinate display that represent sample averages. The length of the rays represents amplitude while the angle of the rays represents their position in the stereo image. Rays within the 45-degree safe lines represent in-phase audio while anything beyond these lines represents audio that is out of phase. History is represented on the Polar Level Vectorscope with the shrinking of the plotted rays slowly over time. The rays shrink towards the center of the vectorscope leaving the outer portion of the display for real-time analysis.

Lissajous Vectorscope

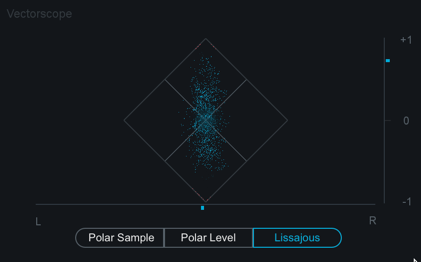

Imager Lissajous vectorscope

Like the Polar Sample vectorscope, the Lissajous Vectorscope plots per-sample dots on a traditional oscilloscope display. Typically, stereo recordings produce a random pattern on a Lissajous Vectorscope that is taller than it is wide. Vertical patterns mean left and right channels are similar (approaching mono, which is a vertical line). Horizontal patterns mean the two channels are very different, which could result in mono compatibility problems.

Correlation Meter

Imager Correlation Meter

The correlation meter indicates the degree of similarity (or correlation) between the left and right channels, displayed a +1/0/-1 vertical meter. When the audio in the left and right channels is similar, the meter draws towards the top. The extreme case is when the left and right channels are exactly the same, in which case the correlation is +1 and the meter would be positioned all the way at the top. When the left and right channels are different, the meter draws towards the bottom. The extreme case here would be for the left and right to be exactly out of phase, in which case the correlation is -1 and the meter would be positioned all the way at the bottom.

Clipping

  • The Vectorscope will draw any clipped samples in red.
  • You can double-click on the Vectorscope to clear the meter display.

Notes on the Phase correlation Meter

  • In general, most recordings have phase correlations in the 0 to +1 region. A brief readout towards the bottom half of the meter is not necessarily a problem but could represent a possible mono compatibility issue.

Mini-metering Views

Stereo Width Spectrum

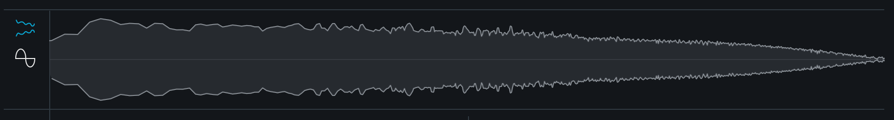

Imager Width Spectrum Meter

This view shows a hybrid mirrored spectrum display of the signal’s stereo width. This meter is only available in the Imager.

Correlation Trace

Imager Correlation Trace

This view displays a scrolling history of the incoming signal’s stereo correlation drawn in real-time. Positive (in phase) values are drawn in light blue while negative (out of phase) values are drawn in red.
