User Parameters

User parameters are those that are created by an FME author, but for an FME user to use. In other words, they are a way for the end-user of the workspace to provide their input, regardless of where and how the workspace is being used.

Creating a User Parameter

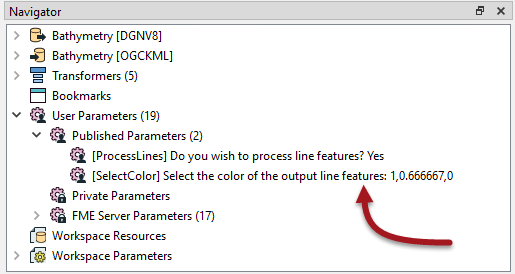

User parameters appear in a particular section of the Navigator window, labeled User Parameters. Here, for example, two user parameters have been defined:

Each of these user parameters allows the end-user of a workspace to enter information into the translation; whether to process line features and what color to write them in.

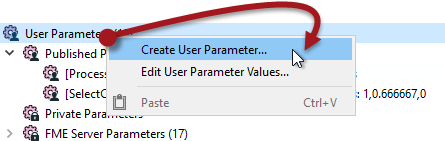

A user parameter is easy to create by right-clicking on the User Parameters label and choosing Create User Parameter:

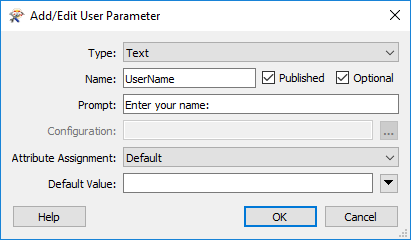

A dialog appears in which the author can define the parameter. In this case, they are creating a parameter in which the user can enter their name:

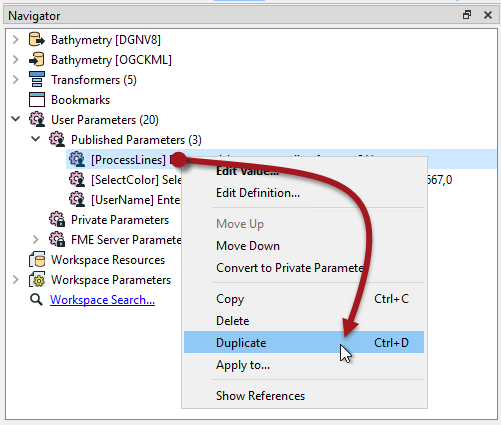

You can also copy, paste, and duplicate user parameters. This allows the workspace author to duplicate existing parameters and make changes, instead of having to build several near identical parameters from scratch:

This includes being able to paste a parameter definition into a different workspace from which it was copied.

Entering Information into a User Parameter

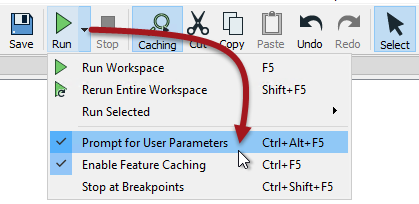

Once a user-parameter is defined, the workspace can be run in Prompt for User Parameters mode:

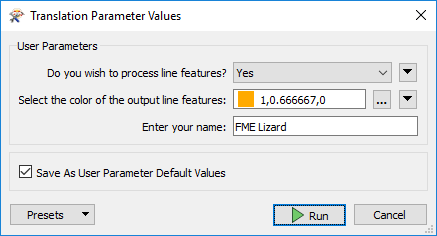

With this mode activated in FME Workbench, the user is prompted to supply values through a simple dialog:

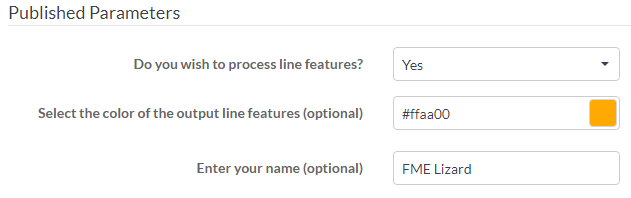

In FME Server, the user is prompted through a web page:

Using a User Parameter

Getting input from a user is pointless if it is not used, so it’s also necessary to actually do something with that input.

User parameters can be exploited in a number of places. Firstly they can be tied to an FME parameter (more information on that in the next section), but they can also be used to provide values to transformers and attributes in a workspace.

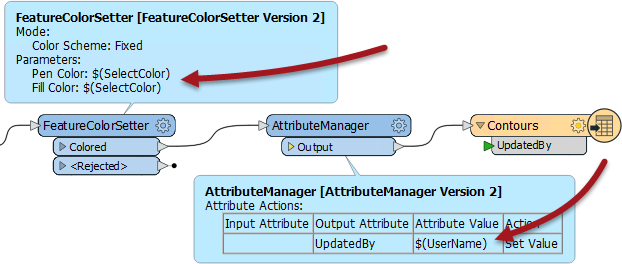

For example, here the author is making use of the color and username parameters (in the FeatureColorSetter and AttributeManager transformers):

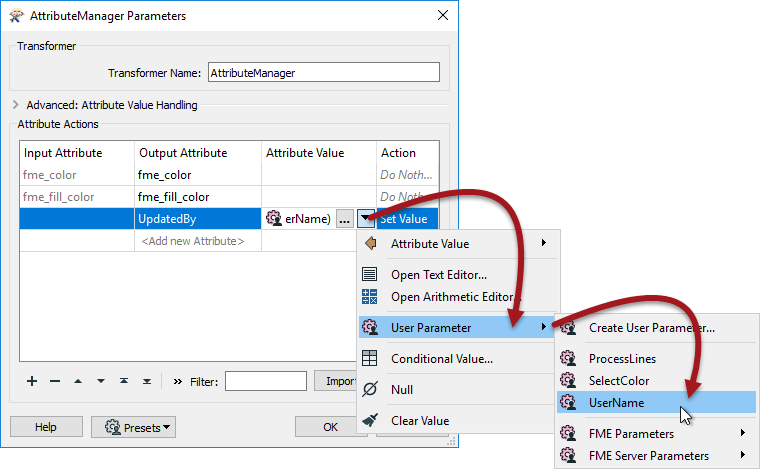

The author set up these transformers to use the parameter input by selecting it in the transformer like so:

Now when the workspace is run, the end user can select the color of features to write, plus enter their name into a text field and have it entered into the UpdatedBy attribute in the output.
