In this exercise we're joining snowfall data to a set of road features, and writing the results to an FME Server Resource folder, for other users to access. So we'll create a workspace that does a join to an online dataset, processes the data, and writes it back out to a different web destination.

1) Add Reader
Start FME Workbench and in an empty workspace add a reader with these parameters:

The Group Entities parameter is an AutoCAD-specific option. It ensures that we have attributes from the AutoCAD source data exposed in Workbench.

The Merged Feature Type option means all the road data is treated as a single map layer, which is fine because we aren't too interested in handling multiple layers separately.

2) Locate Snowfall Dataset
In a web browser, browse to the City of Interopolis Open Data Portal (https://s3.amazonaws.com/FMEData/Interopolis/interopolis.html).

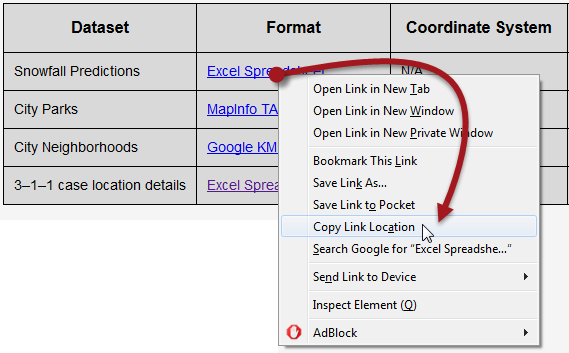

Locate the dataset for Snowfall Predictions, right-click on where it says Excel Spreadsheet, and choose to copy the URL:

The exact command will vary according to web browser of choice.

3) Add DatabaseJoiner Transformer
Back in FME Workbench, add a DatabaseJoiner transformer and connect it to the roads feature type. Open the DatabaseJoiner parameters.

Set the parameters as follows:

...where, of course, you can paste the URL you copied from the web browser.

Click the parameters button and check that the data is being read correctly. Proof of this is the preview window showing records with the correct columns.

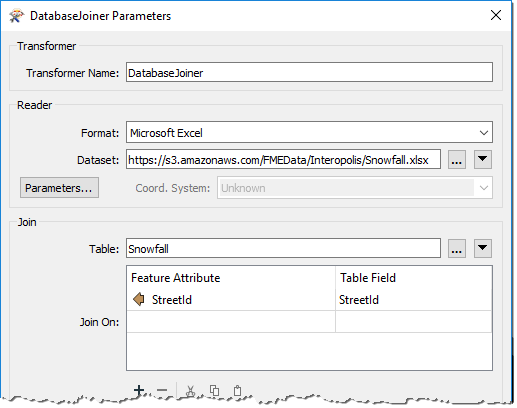

Back in the main DatabaseJoiner dialog, select Snowfall as the join table and select StreetId as both the Feature Attribute and Table Field to be joined:

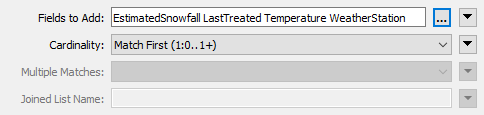

The final parameters to set in the DatabaseJoiner are Fields to Add and Cardinality:

Select the following for Fields to Add:

• EstimatedSnowfall
• LastTreated
• Temperature
• WeatherStation

Ensure Cardinality is set to Match First (1:0...1+); then each road feature will be joined to the first matching database record FME finds. It's the option least likely to lead to error messages in the log.

4) Add KMLStyler Transformer (Optional)
The goal of the project is to write the data to KML format. As a training exercise, we're really only interested in how and where we write the data. However, a realistic requirement would be to set the color and style of the spatial data being written (in spatial terms we sometimes call this symbology).

So, as an optional step, place a KMLStyler transformer, connected to the DatabaseJoiner. Open the parameters dialog and set it up to give the roadwork features a specific style.

Here the author has used Conditional Values (discussed in chapter one) to illustrate the roads differently according to the amount of expected snowfall:

However, you can choose to select a fixed color, copy the transformer from the completed workspace, or even ignore this step completely.

5) Add FeatureWriter Transformer
Now it's time to write the data. It's not as simple to write data directly to a web service, so what we'll do is write it to a zipped, file-based dataset, and then upload that dataset to a web service.

So, add a FeatureWriter transformer and connect it to the KMLStyler transformer (if you added one) or the DatabaseJoiner transformer (if you didn't).

Open the parameters and set the writer up as follows:

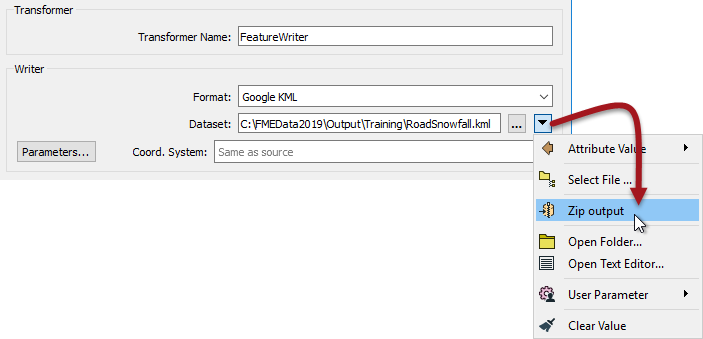

Then click on the dropdown arrow to the right of the Dataset parameter, and choose the option to Zip Output

This will make the transformer write data directly to a zipped (compressed/archived) file.

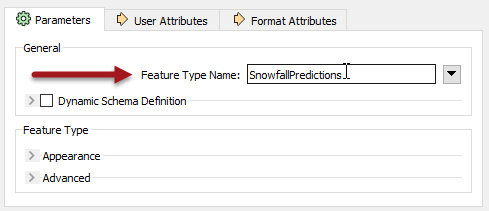

As a final step in this transformer, rename the output feature type to SnowfallPredictions:

Now when the workspace is run, a dataset will be written. The FeatureWriter will create an attribute called _dataset to record the name and path of the dataset. The next step is to upload this file to a web service...

6) Add FMEServerResourceConnector Transformer

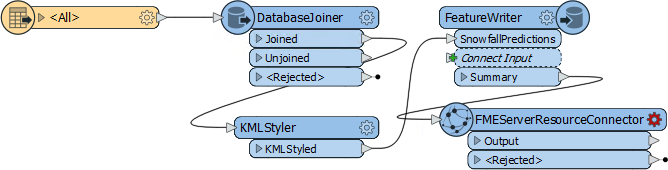

Add a FMEServerResourceConnector transformer and connect it to the FeatureWriter:Summary output port. The workspace should now look like this:

In the parameters dialog ensure that the FME Server Action is set to Upload. For the FME Server Account open the drop-down menu and click Add Web Connection:

In the FME Server Connection Dialog change the Connection Name, if desired. Then set following parameters and click Authenticate:

Server URL: http://localhost
Username: author
Password: author

Ensure the Source Upload parameter is set to File. For File to Upload parameter, click the drop-down icon and select Attribute Value > _dataset:

Finally for the FME Server Destination click on the ellipsis next to Folder ID. This will connect to your FME Server Resources folder. Click on the Data folder to select it and click OK:

The parameter is now set to upload to the FME_SHAREDRESOURCE_DATA/filesys folder. That was the final part of the FMEServerResourceConnector set up, so click OK to close its parameters dialog.

7) Run Translation
Save the workspace and then run it.

Oops! There are a lot of errors message. The key one is:

FileNotFoundError: [Errno 2] No such file or directory: 'C:\\FMEData2019\\Output\\Training\\RoadSnowfall.zip\\RoadSnowfall.kml'

The problem is that the path only needs to point to the zip file, not the file within it. Let's fix that.

Add a StringReplacer transformer between the FeatureWriter and FMEServerResourceConnector transformers. Set it up with the following parameters:

Attributes: _dataset Mode: Replace Regular Expression Text to Replace: \\[^\\]*$

Leave the Replacement Text field empty. That regular expression will look for the final \ character in the string, and replace everything after it with the replacement text (which is nothing):

Now when we run our translation the data will write to our local disk but also upload the output file onto FME Server where any of our colleagues can download it.

Run the translation.

8) Test Upload
Check the results of the translation in the Visual Preview window (or Data Inspector). The output of the FMEServerResourceConnector will be a single feature with an attribute storing a link to the data on Server.

Copy the contents of the _direct_download_link attribute to the system clipboard. Paste the copied link into the address bar of a web browser and press the return key.

The uploaded file will be downloaded from FME Server. If prompted for connection parameters, use the username and password you entered into the FME Server connection.
