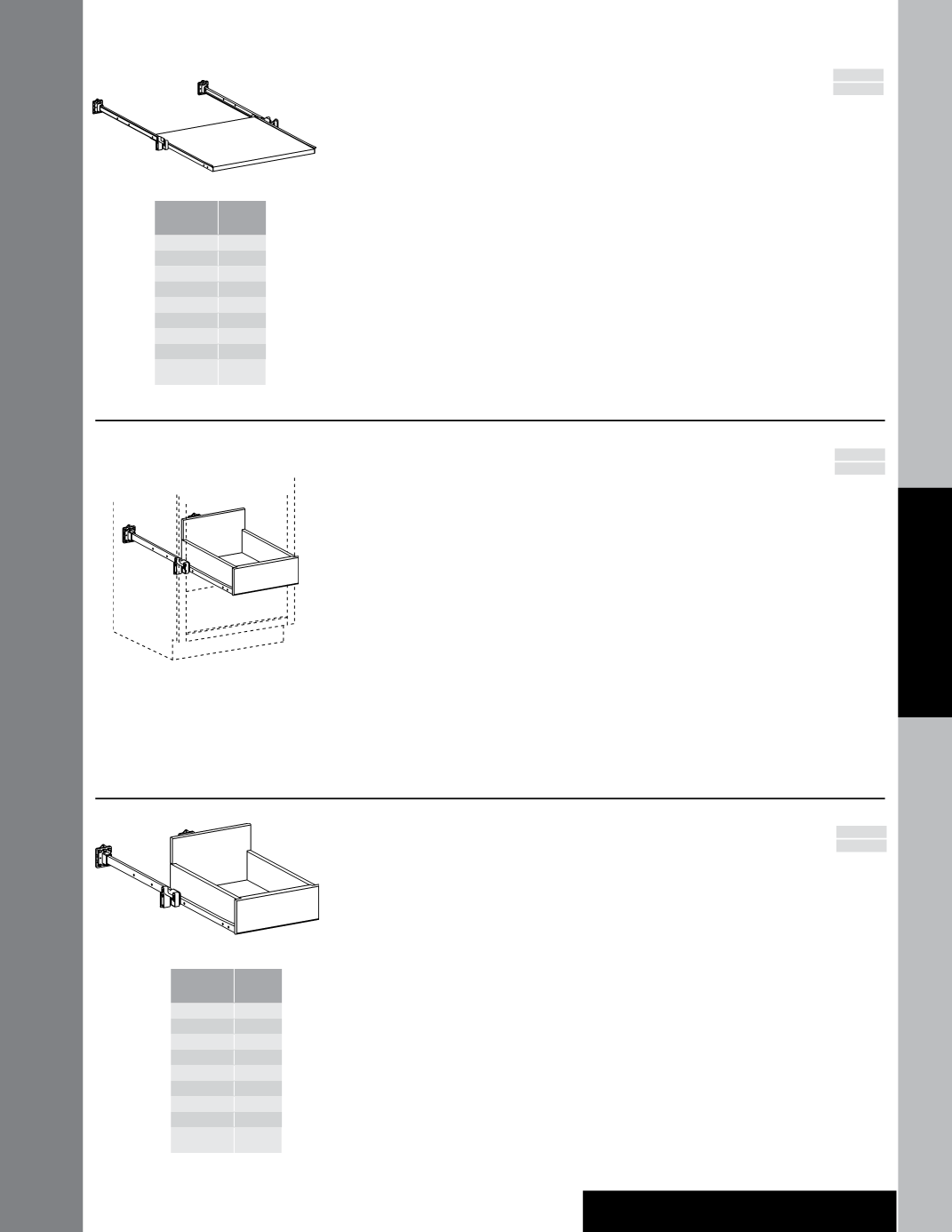

K19
Roll-out Trays
Panels-Shelving-Trays
Roll-out Shelf Kit Field Installation
ROSTK12•24•21•18
ROSTK15•24•21•18
ROSTK16•24•21•18
ROSTK18•24•21•18
ROSTK19•24•21•18
ROSTK21•24•21•18
ROSTK22•24•21•18
ROSTK24•24•21•18
ROSTK27•24•21•18
• Standard side-mount runners
• Field installation only
I
Must
use MIP for Matching Interior Option
• Order Example:
For U182484—order ROSTK18•24
For B15L—order ROSTK15•24
For VB1518R—order ROSTK15•18
For VB15L—order ROSTK15•21
v
APC
I
MI
Roll-out Shelf Kit
Field Installation Chart
Cabinet
(Max)
#ROSTKs
Base
Base•FH
Base•FH•40
Tall
Desk
Desk•FH
Vanity
Vanity•FH
VLC 88 ½˝ H 6 (Top)
7 (Bottom)
5
7
7
10
3
4
5
7
High Back Roll-out Trays Factory Installed
i
1HBFWROT
i
2HBFWROT
i
3HBFWROT
i
4HBFWROT
i
5HBFWROT
1HBROT
2HBROT
3HBROT
4HBROT
5HBROT
• 4” deep tray has 7” high back, 1/2” thick
solid wood front, back and sides and 3/16”
Viraguard laminated plywood bottom
• 18”, 21” and 24” depths only
• Shelves are eliminated when this option is selected
• Order High Back Roll-out Trays (HBROT) for
cabinets that do
not
have center stiles;
includes cabinets with BUTT doors.
Order Example: B36BUTT-2HBROT; B24L-2HBROT
• High Back Roll-out Trays (HBROT) can also be ordered in
cabinets with center stiles. The center stile will remain and
trays will be installed in the right and left openings. Order
Example: B36-4HBROT (2 trays right and 2 trays left)
• Maximum of two can be installed vertically in a standard
base cabinet
• Maximum of three can be installed vertically in a full-
height door base cabinet
• Full-width trays
not
available in 39”, 42”, 45” or 48”
• Trays are
not
evenly spaced
• Specify quantity
• Order Example:
Installed—U182484L-3HBROT
Installed—B15L-2HBROT
Installed—B36-2HBFWROT
APC
MI
i
There is no need to order Mullion Strip
Base (MSB). When Full-width Roll-out Trays
(FWROT) are ordered for 30˝, 33˝ or 36˝ wide
cabinets, the double doors will have a mullion
attached to the left door. Full-width Roll-out
Trays (FWROT)
are
not available factory
installed on Utility cabinets (U) wider
than 24˝
High Back Roll-out Trays Field Installation
HBROT12•24 •21 •18
HBROT15•24 •21 •18
HBROT16•24 •21 •18
HBROT18•24 •21 •18
HBROT19•24 •21 •18
HBROT21•24 •21 •18
HBROT22•24 •21 •18
HBROT24•24 •21 •18
HBROT27•24 •21 •18
HBROT30•24 •21 •18
HBROT33•24 •21 •18
HBROT36•24 •21 •18
• 4” deep tray has 7” high back, 1/2” thick solid wood
front, back and sides and 3/16” Viraguard laminated
plywood bottom
• 18”, 21” and 24” depths only
• Tray location is adjustable
• Mounting hardware and runners included
• Order Example:
For U182484—order HBROT18•24
For B15L—order HBROT15•24
For VB1518R—order HBROT15•18
For VB15L—order HBROT15•21
APC
MI
High Back Roll-out Tray
Field Installation Chart
Cabinet
(Max)
#HBROTs
Base
Base•FH
Base•FH•40
Tall
Desk
Desk•FH
Vanity
Vanity•FH
VLC 88 ½˝ H 3 (Top)
3 (Bottom)
2
2
3
5
1
2
2
3
