Ice and Water
20
3
/
8
˝
28
7
/
16
˝
14
13
/
16
˝ 19
9
/
16
˝
63
3
/
8
˝
A
C
D
Option 1:
Order and Install:
WSK3684
Option 2:
Order and Install:
1 - WSK3684
1 - RDB2418 (Door “A”)
1 - RDB2424 (Door ”B”)
1 - RD1818 (Door “C”)
1 - RD1815 (Door “D”)
1 - RD1824 (Door “E”)
Size of refrigerator may vary
and door sizes may need to be
changed
B
E
K3
Decorative Appliance Panels
Panels-Shelving-Trays

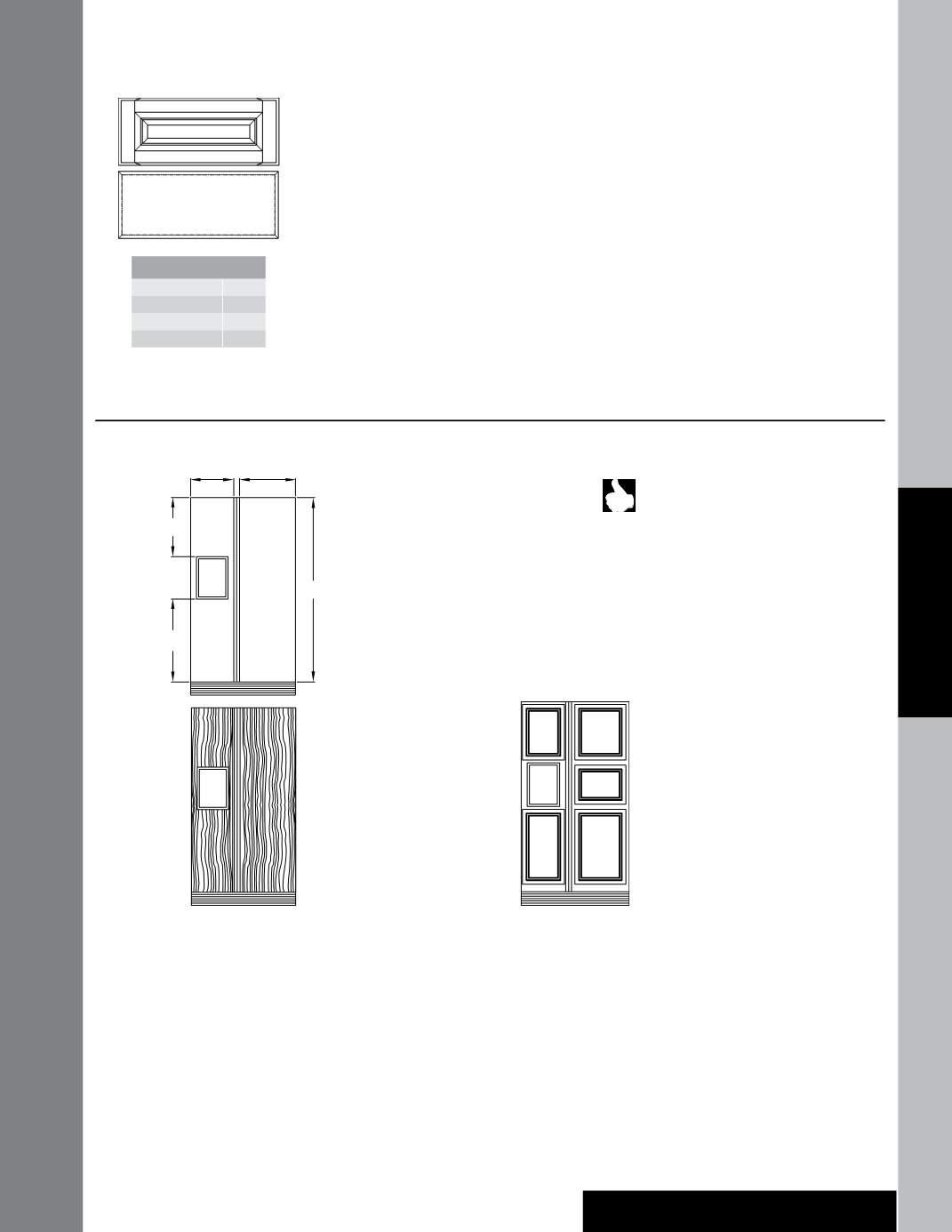

Decorative Panel–Drawer Onlay Panel
APDW
• APDW will follow the selected door style’s drawer
front configuration
• Five-piece grill panels/drawer heads ordered in
heights less than 6 1/8˝ may be supplied as a solid
slab onlay panel. Some five-piece drawer fronts may
have a recessed center panel.
• The Drawer Onlay Panel will be constructed like door
when Woodgrain Laminate door styles are ordered
• “Width” will be referred to as “Length” on your faxed
acknowledgments for APDW only
• If unit is installed at an angle, fillers should be used to
avoid interference with adjacent cabinet
• Veneer raised panel door styles will be supplied with
a solid wood center panel machined to resemble the
veneer center panel
• Backs are finished
•
Note:
Check appliance manufacturer’s specs for any
additional material (shims, spacers, etc.) that may be
needed before placing any order. Appliance model
numbers are
not
sufficient, numeric dimensions
must
be used when ordering.
Onlay Panel
Minimum Width 6˝
Maximum Width 48˝
Minimum Height 2 1/4˝
Maximum Height 30˝
Decorative Panel/Replacement Door and Drawer Front
• Decorative panels can be easily created using
paneling and replacement door and drawer
fronts. Consult the Door and Drawer front
Replacement Guide section of this book for
sizes of doors and drawer fronts available.
• Example: Create a decorative panel for this
side by side refrigerator
•
Note:
In most cases, doors will be narrower
than the refrigerator door and portions of the
refrigerator door paneling will be exposed.
Advise your customers that this “reveal” will
be present and that cabinet doors will
not
completely overlay the refrigerator door.
When applying Replacement Doors to a WSK
remember to allow enough room for access to
the appliance door handle
