Decorative Appliance Panels
Panels-Shelving-Trays
Decorative Panel–Back Panel
APWSK
• Approximately 3/16˝ thick
• Back Panels will match the wood species and the color
of the selected door style and finish and can be used
with or without onlay panels to decorate any appliance
• Wood veneer engineered wood
• Finished one side only
• Quartersawn oak door styles are quartersawn wood
veneer
• Plain sawn material supplied for Burnaby Crafted door
styles
• Painted or Stained hardwood supplied for Woodgrain
Laminate door styles
• Edges are unfinished with no edgebanding
• Painted hardwood supplied for EverCore™ and
Laminate door styles. A matching matte panel will be
supplied when ordered in High-Gloss Laminate door
styles

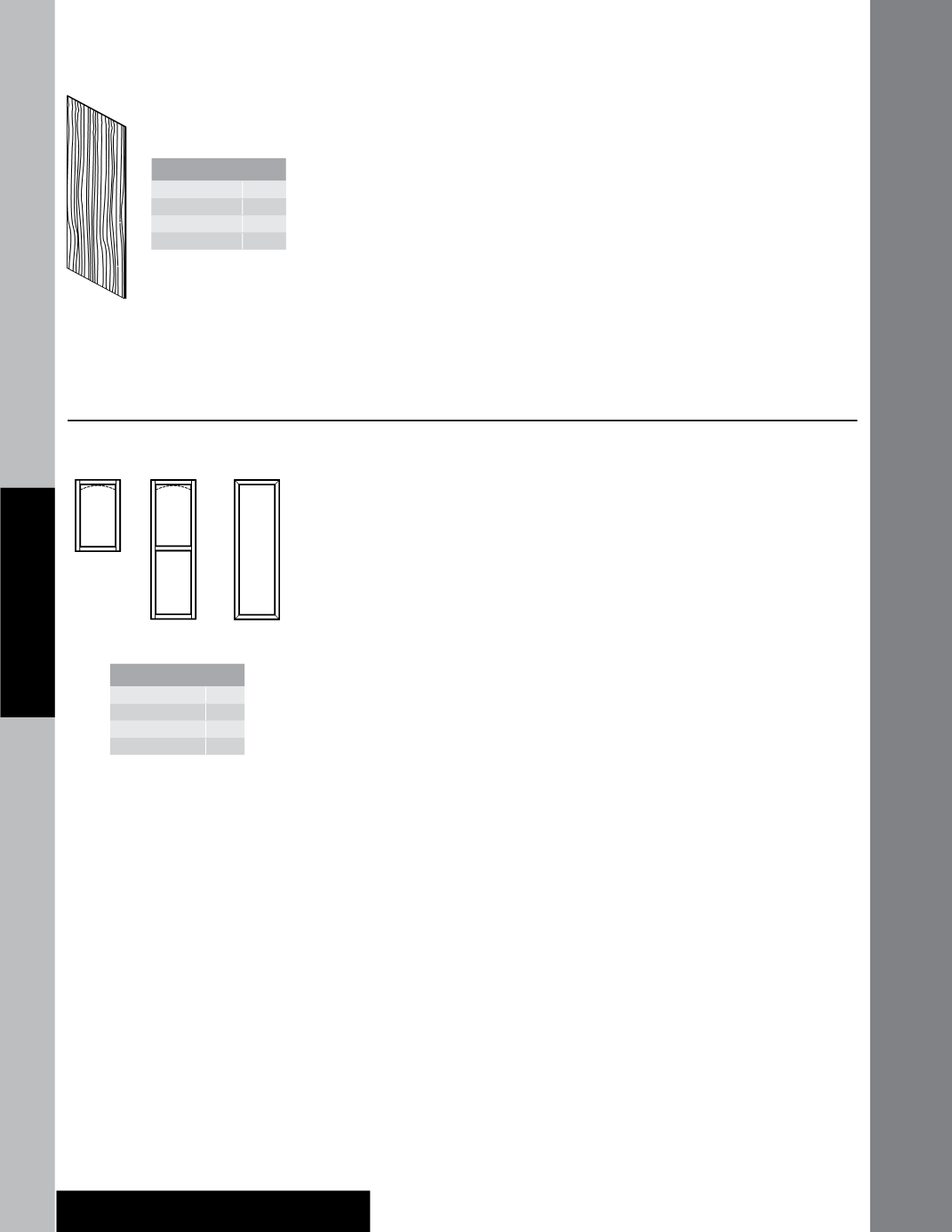

Back Panel
MinimumWidth
”
MaximumWidth 48”
Minimum Heigh ”
Maximum Height
96”
48˝
96˝
3/4˝
4 1/2”
Minimu i
Maximu i t
Minim
i t
axi
i
Decorative Panel–Door Onlay Panel and Hinge Doors
APDRL •B or W
APDRR •B or W
APDRNH •B or W
• Doors and onlay panels ordered 10˝–55˝ high will have
a single center panel
• Doors and onlay panels ordered 55 1/16” – 80” will
have a double center panel (a horizontal center rail will
equally divide the onlay panel)
• Mitered door styles will have a single center panel,
regardless of height
• When an arched door style is selected, you
must
select
Arched (•W) or Square (•B) to determine the door and
onlay panel’s top profile
• When a square door style is selected, the square profile
will be supplied for all onlay panels as standard. It is
recommended to use a square profile when ordering
an onlay panel for a dishwasher or trash compactor
application.
• Multiple doors and panels of identical size may be
ordered by listing the quantity needed. The quantity
will default to one if a number is
not
given.
• Veneer raised panel door styles will be supplied with
a solid wood center panel machined to resemble the
veneer center panel
• Due to varying dimensions and designs of raised center
panels, recessed center panels may be supplied when
the center panel width or height is less than 3 1/4”
• Hinging for doors:
Doors 10” to 36” get two hinge holes
Doors 36 1/6” to 48” get three hinge holes
Doors 48 1/16” to 80” get four hinge holes
• Backs are finished
•
Note:
Check appliance manufacturer’s specs for any
additional material (shims, spacers, etc.) that may be
needed before placing any order. Appliance model
numbers are
not
sufficient, numeric dimensions
must
be used when ordering.
10˝- 55˝
High
Mitered
Onlay Panel
8˝
36˝
10˝
80˝
55 / ˝ 80˝
High
Minimum Width
Maximum Width
Minimum Height
Maximum Height*
*Maximum height for
Woodgrain Laminate
mitered doors is 55 5/8”
