323 / 601
G2
Vanity Cabinets
Vanity Cabinets

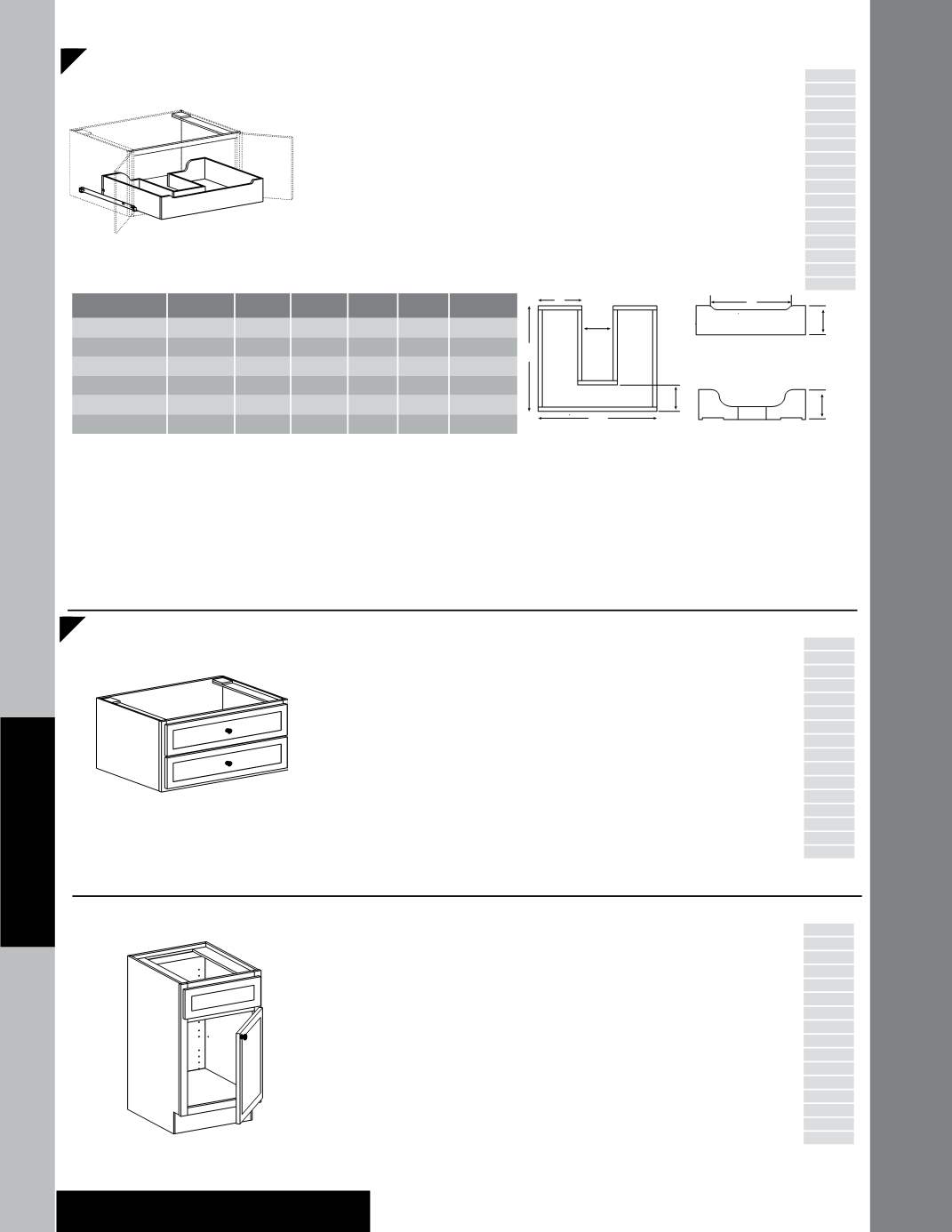

U-Shaped Deluxe Roll-out Tray
Field Installation
18” Deep
UDXROT24 .18
UDXROT30 .18
UDXROT36 .18
21” Deep
UDXROT24 .21
UDXROT30 .21
UDXROT36 .21
Factory Installation
18”-21” Deep
1UDXROT
• Designed specifically for Wall Hung
Vanity (WHVOR, WHVC and
WHVCD) cabinets
• Full extension runner, pulls out past
the face frame
PE
APC
APFC
FPEB
MI
DE
OE
RD
ID
IF
TWR
WR
XS
GD
RTK
VTK
New
Gray color coding indicates new product, size or code.
Wall Hung Vanity Drawer
18” Deep
WHVD3018
WHVD3618
21” Deep
WHVD3021
WHVD3621
• False front top
• 7” U-shaped bottom drawer scooped
to 3” in the back
• 11/16” full plywood back panel
• Installation instructions included
PE
APC
v
APFC
FPEB
l
MI
DE
OE
RD
ID
IF
TWR
WR
XS
GD
RTK
VTK
20 ½˝
18˝ 21˝
30˝ 36˝
New
Gray color coding indicates new product, size or code.
Vanity Sink Base Single Door
Specify R or L
31 1/2” High, 18˝ Deep
VSB181831 R or L
VSB211831 R or L
31 1/2” High, 21˝ Deep
VSB182131 R or L
VSB212131 R or L
34 1/2” High, 16˝ Deep
n
VSB181634 R or L
n
VSB211634 R or L
34 1/2” High, 18˝ Deep
VSB181834 R or L
VSB211834 R or L
34 1/2” High, 21˝ Deep
VSB182134 R or L
VSB212134 R or L
• Single door and drawer front
• Optional Utensil Trays (UT and SUT)
are available
I
Operational End (OE) is
not
available
with Reduced Depth (RD) options
l
PE
l
APC
l
APFC
l
FPEB
l
MI
l
DE
I
OE
l
RD
ID
IF
l
TWR
l
WR
l
XS
l
GD
l
RTK
l
VTK
18˝, 21˝
31 ½˝
34 ½˝
n
Not
available with Operational End Door (OE) option
Gray color coding indicates new product, size or code.
FRONT VIEW
TOP VIEW
BACK VIEW
(6 / ˝
Interior Height)
C
D
E
A
B
C
7˝
Model
Opening A B
C D E
UDXROT24.18
21"
14 3/4” 7 1/3” 5 1/4” 3 3/4” 19 16/17”
UDXROT30.18
27"
14 3/4” 10 1/3” 6 2/3” 3 3/4” 25 16/17”
UDXROT36.18
33"
14 3/4” 13 1/3” 6 2/3” 3 3/4” 31 37/39”
UDXROT24.21
21"
17 5/7” 7 1/3” 5 1/4” 3 3/4” 19 16/17”
UDXROT30.21
27"
17 5/7” 10 1/3” 6 2/3” 3 3/4” 25 16/17”
UDXROT36.21
33"
17 5/7” 13 1/3” 6 2/3” 3 3/4” 31 37/39”
7˝
