Tall Cabinets
Note
: Remember to remove the white plastic “feet” from the bottom of all tall cabinets before
installation. Their sole purpose is to protect the floor after the cabinets are unboxed. Leaving them on
will result in uneven installation.

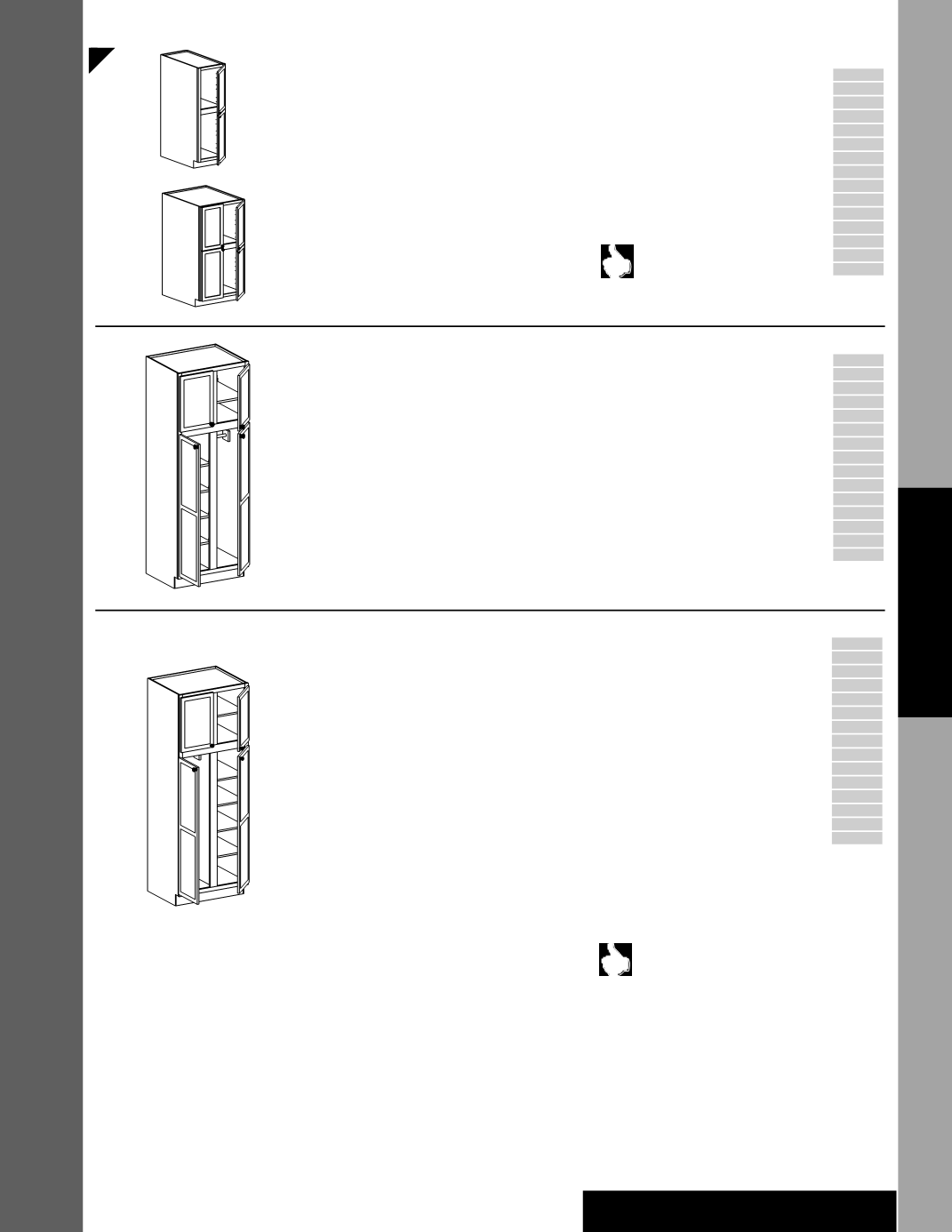

Tall Cabinets
Utility Stack Cabinets 60 1/2” High 24” Deep
Specify R or L
Single Door
i
UST92460 R or L
UST122460 R or L
UST152460 R or L
UST182460 R or L
UST212460 R or L
UST242460 R or L
Double Door
UST242460 BUTT
UST272460 (Butt)
UST302460 BUTT
UST332460 BUTT
UST362460 BUTT
• No shelf
• All door styles furnished square
• Factory installed Roll-out Trays (ROT) are
not
available on Utility Cabinets wider than 24˝
I
Operational End (OE) is
not
available with
Increased Depth (ID) or Reduced Depth (RD)
options
I
Maximum Increased Depth (ID) is 27”
•
Note
: Shelf Kits (SK) for center and bottom
sections
must
be ordered separately; see
Shelving section of this book
Remember to attach a Mullion
Strip Utility Bottom (MSUB) to tall
cabinets 30” or wider when
planning to field install roll-out trays. This will
remove the center stile and replace it with a mullion strip
on the left door.
l
PE
l
APC
l
APFC
l
FPEB
l
MI
l
DE
l
OE
I
RD
I
ID
IF
l
WR
l
XS
GD
l
RTK
l
VTK
60 ½˝
60 ½˝
24˝
26˝
30˝
26˝
30˝
24˝
U9-24
U24-36BUTT
New
i
Huntley, Scarbourough, Veranda doors will have a
solid, recessed flat panel
Grey color coding indicates new product, size or code.
Utility Combination–Shelves Left
84” High
i
UC242484 BUTT•SL
UC302484 •SL
UC362484 •SL
90” High
i
UC242490 BUTT•SL
UC302490 •SL
UC362490 •SL
96” High
i
UC242496 BUTT•SL
UC302496 •SL
UC362496 •SL
• Four adjustable shelves and one closet rod
included
• Includes adjustable shelves in upper section:
84˝ high—one shelf; 90˝ high—two shelves;
96˝ high—three shelves
• No center rail on tall door for Adrian,
Burnaby, Captiva, Carter, Castlewood,
Coleburne, Edgemont, Edgemont Cathedral,
Fielding, Grange, Hailey, Holace, Jackson,
Jasper, Kensie, Lennox Court, Lessex,
Madison, Maris, Newburgh, Parkdale,
Standish, Stanford, Summit, Torrington and
Veranda door styles
• Toe kick is shipped separately on 96˝ high
cabinets
I
WR and RTK
not
available 96” high cabinets
I
Glass doors available for top doors only
I
VTK is
not
available on 96” H cabinets
I
Maximum Increased Depth (ID) is 27”
l
PE
l
APC
l
APFC
l
FPEB
l
MI
DE
OE
l
RD
I
ID
IF
I
WR
l
XS
I
GD
I
RTK
I
VTK
24˝
84˝
90˝
96˝
23
1
/
2
˝
30˝
36˝
i
Roll-out Trays (ROT) are
not
available
Utility Combination
84” High
i
UC242484 BUTT
UC302484
UC362484
90” High
i
UC242490 BUTT
UC302490
UC362490
96” High
i
UC242496 BUTT
UC302496
UC362496
• Four adjustable shelves and one closet rod
included
• Includes adjustable shelves in upper section:
84˝ high—one shelf; 90˝ high—two shelves;
96˝ high—three shelves
• No center rail on tall door for Adrian,
Burnaby, Captiva, Carter, Castlewood,
Coleburne, Edgemont, Edgemont Cathedral,
Fielding, Grange, Hailey, Holace, Jackson,
Jasper, Kensie, Lennox Court, Lessex,
Madison, Maris, Newburgh, Parkdale,
Standish, Stanford, Summit, Torrington and
Veranda door styles
• Toe kick is shipped separately on 96˝ high
cabinets
I
WR and RTK
not
available 96” high cabinets
I
Glass doors available for top doors only
I
VTK is
not
available on 96” H cabinets
I
Maximum Increased Depth (ID) is 27”
Remember to order a 3/16” skin (WSK) for the
exposed ends of 93” & 96” high cabinets to
conceal the seam between the loose toe kick and
the cabinet.
l
PE
l
APC
l
APFC
l
FPEB
l
MI
DE
OE
l
RD
I
ID
IF
I
WR
l
XS
I
GD
I
RTK
I
VTK
84˝
90˝
96˝
24˝
23
1
/
2
˝
30˝
36˝
i
Roll-out Trays (ROT) are
not
available
